RD400PDL-2/PXL-2 User Guide
RD433HCTX-2 Transmitter

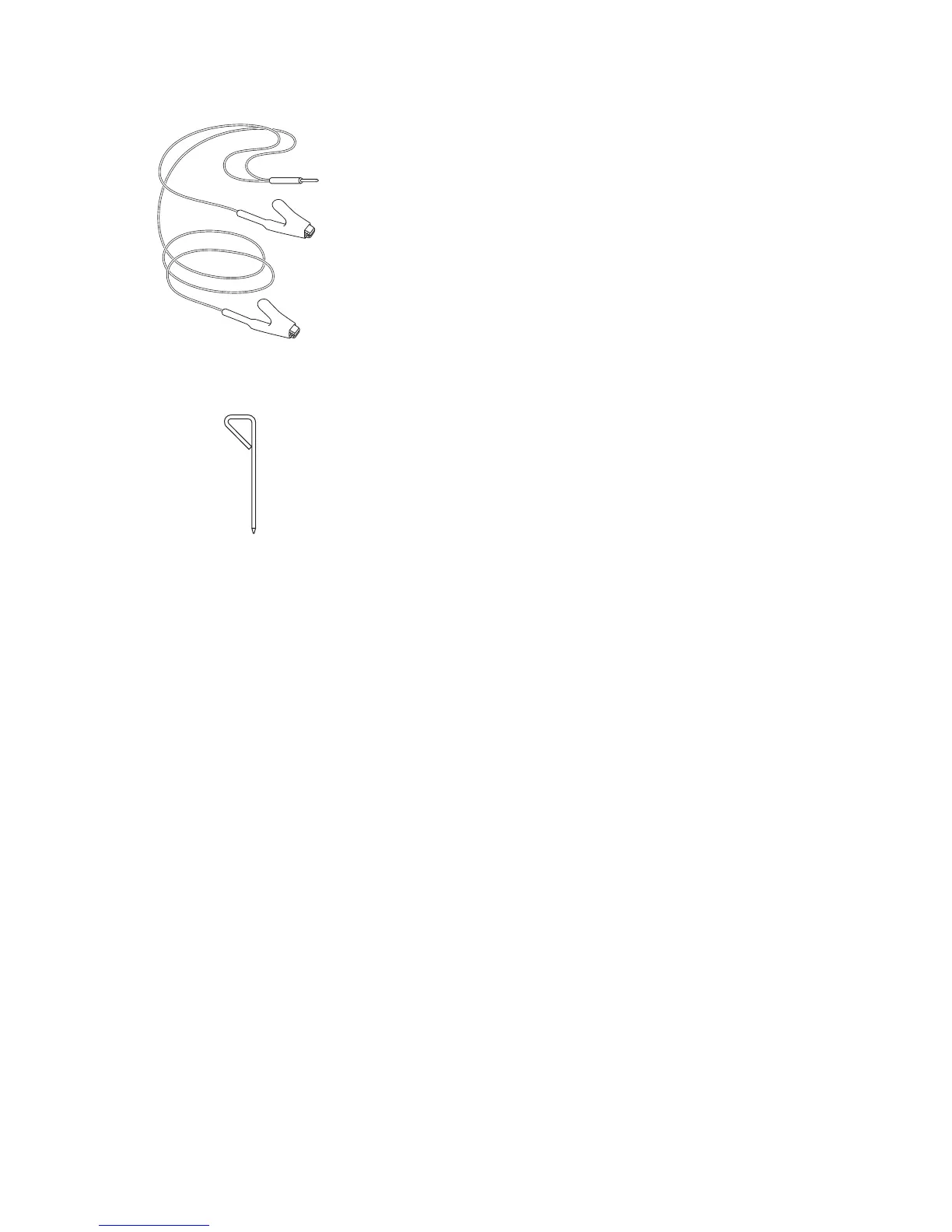

Connection Cable
Red cable connects the Transmitter signal directly
to target line. Black cable provides the ground
return via Ground Stake.
Ground Stake
Ground Stake is for making a ground connection
to provide a return signal.
Red
Black
