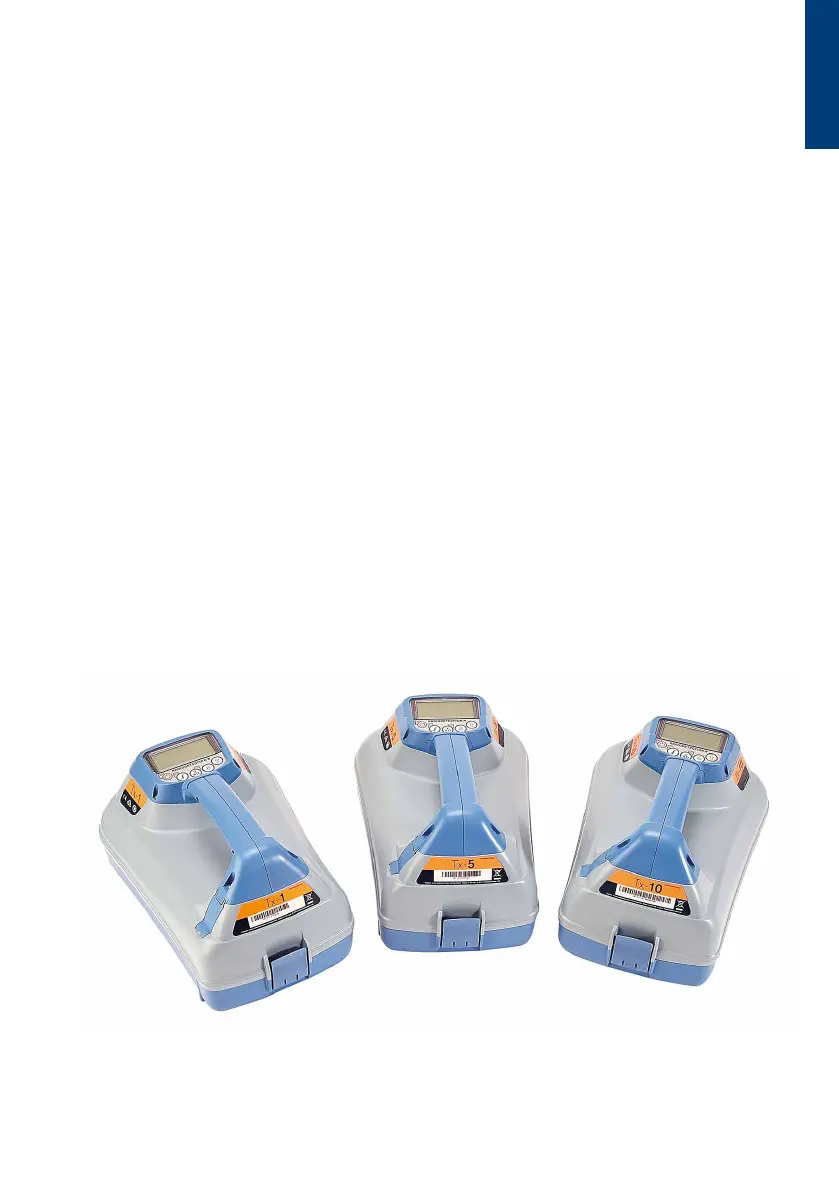

Transmitter features
1. Keypad.
2. LCD.
3. Removable accessory tray.
4. D-cell battery tray.
5. Optional Lithium-Ion battery pack.
Transmitter keypad
6. Power key.
7. Frequency key.
8. Up and down arrows.
9. Measure key.
Transmitter screen icons
10. Battery level indicator.
11. Operation mode readout.
12. Standby icon.
13. Output level indicator.
14. Clamp icon: Indicates when a signal
clamp or other accessory is connected.
15. DC Power connected indicator.
16. Induction mode indicator.
17. A-Frame: Indicates when the
transmitter is in Fault-Find Mode.
18. Voltage warning indicator: Indicates
that the transmitter is outputting
potentially hazardous voltage levels.
19. Volume level indicator.
