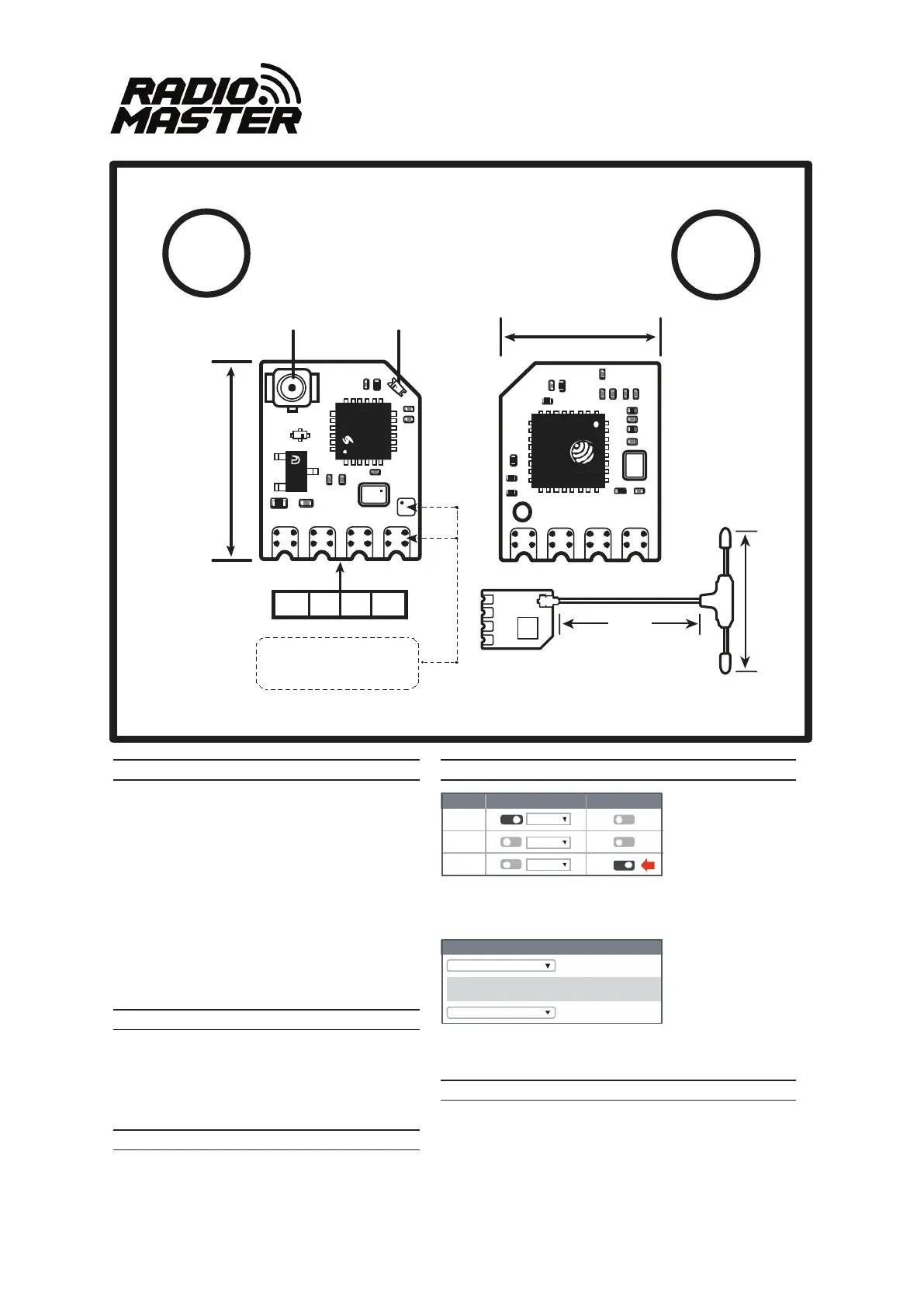

RP1 Receiver User Manual
YL520
AI1e
1281 2340 45746 1.1
BOOT
RP1
V1.2
VCWI
u.Fl LED
TX 5V gRX
13mm
26.000
MHZ
E
L
R
S
5V TX RX
−
11mm
ESP
8285
Firmware upgrade button
Use a metal object to short-circuit
the GND while powering ON.
BOTTOM
2.2
GRAMS
2.4
GHZ
TOP
55mm
65mm
规格参数
•频段类型:
2400MHz-2483MHz
•尺寸:
13*11*3mm
•重量:
2.2g (w/o antenna)
ESP8285•MCU:
•射频芯片:
SX1276
5V
•输入电压:
CRSF
•总线接口:
ExpressLRS v3.0
•无线协议:
包装清单
1x RP1接收机
1x 65mm U.FL 2.4Ghz 天线
1x 服务卡
4x 连接线
固件下载
RadioMaster RP1/2 2400 RX
For more information, please visit the ELRS website:
https://www.expresslrs.org/2.0/
对频方法
1：关闭遥控器
2：重复给接收机上电三次，接收机灯双闪，表明接收机处于对频模式
3：开启遥控器，进入ExpressLRS的LUA操作界面，选择到【BIND】按键确认
4：接收机灯常亮表明对频成功
设置
115200USB VCP
Identifier Serial RXConfiguration/MSP
UART1
UART2
115200
115200
Receiver
Serial (via UART)
CRSF
Receiver Mode
Serial Receiver Provider
• The UART for the receiver must be s et to ‘Serial Rx ’ (in the
Ports
tab)
• Select the correct data format from the drop-down, below:
打开Betaflight Configuration，转到Ports端口选项卡并启用相应的
UART作为Serial RX（例如，如上所示的UART2）保存并重新启动。
在Configuration选项卡上，单击Receiver面板上的
Serial-based receiver，并选择CRSF。
