D2412 Installation Manual
Page 14
8/11/97 P/N 35115B © 1997 Radionics
Easikey
You can use a Radionics Easikey access system to turn
the system OFF. Program the
Keyswitch
prompt to
Easikey. See the
Program Entry Guide
for instructions.
You must use a 12 VDC option for the Easikey installation.
See
Easikey Installation and Operation Instructions
.
Easikey is not for use in UL installations.

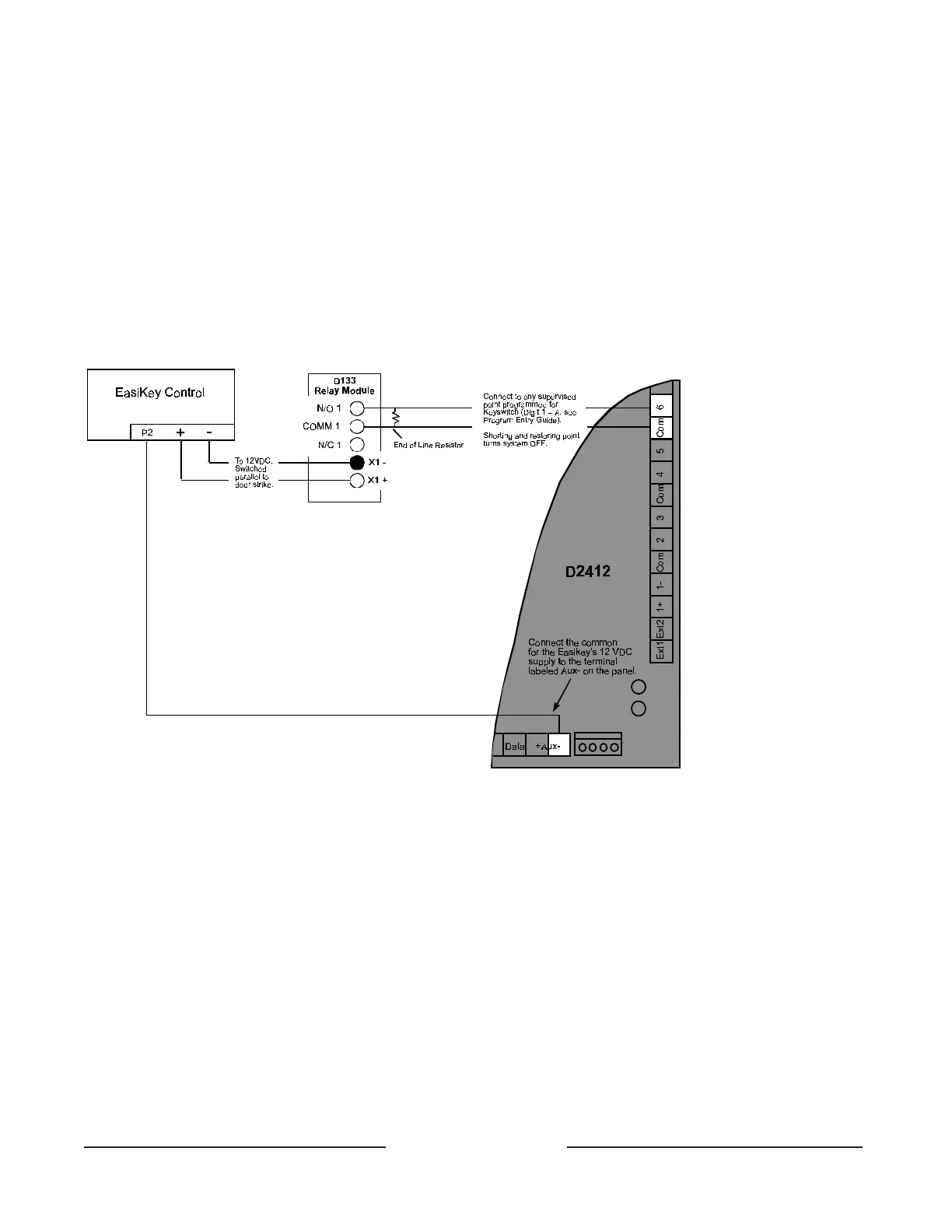

Connect the Easikey door controller to the panel using a
D133 Relay Module as shown in Figure 13. Make certain
to connect the common for the Easikey’s 12 VDC supply
to the terminal labeled Aux- on the panel.
Figure 13: Keyswitch
