Radionics D2412 - Current Rating Chart for Standby Battery Calculations; System Wiring Diagram, Issue a

D2412 Installation Manual
Page 18
8/11/97 P/N 35115B © 1997 Radionics
Current Rating Chart for Standby Battery Calculations

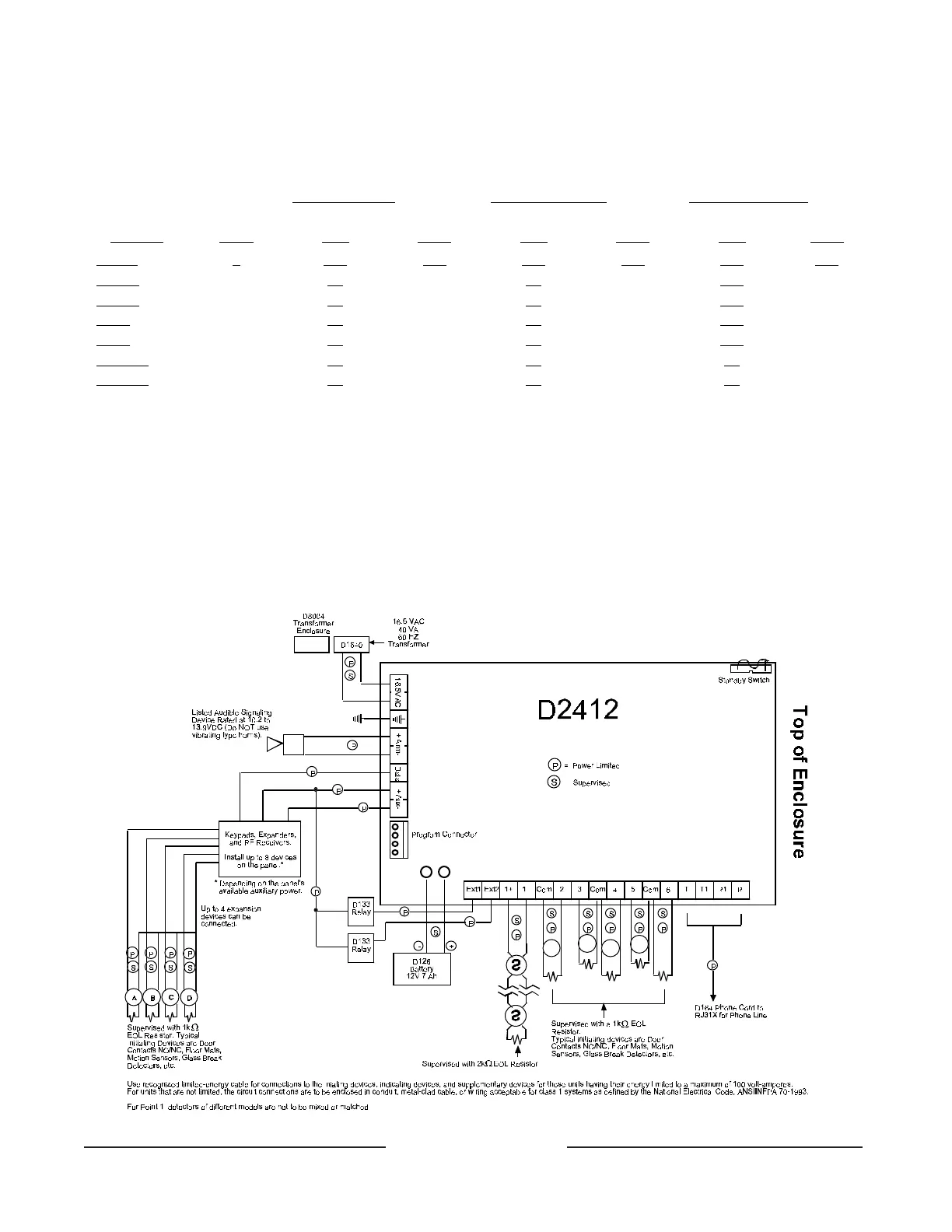

System Wiring Diagram, Issue A
All currents are in milliamperes (1 ampere = 1000 milliamperes)
AC Power ON
Normal Current
AC Power OFF
Minimum Current
In Alarm
Maximum Current
Model
Number
Number
Used
Each
Unit
Total
Each
Unit
Total
Each
Unit
Total
D2412 1 125 125 125 125 190 315
D202A _____ 45 _____ 45 _____ 125 _____
D220A
_____ 30 _____ 30 _____ 125 _____
D222
_____ 30 _____ 30 _____ 140 _____
D223
_____ 30 _____ 30 _____ 140 _____
D208RF
_____ 50 _____ 50 _____ 50 _____
D216RF
_____ 50 _____ 50 _____ 50 _____
_______ _____ ___ _____ ___ _____ ___ _____
_______ _____ ___ _____ ___ _____ ___ _____
_______ _____ ___ _____ ___ _____ ___ _____
_______ _____ ___ _____ ___ _____ ___ _____
_____ Total A* = _____ Total B = _____ Total C** = _____
* If Total A exceeds 1.0A (140mA for fire and combined fire/burglary systems, a stand-alone power supply is required to
provide additional current.
** If Total C exceeds 860 mA, for fire systems, a stand-alone power supply is required to provide additional current.
