Radius P110 - Battery Installation and Removal

P110_Owners 12 Wed Sep 3 16:10:59 1997
12 6880902Z28-E March, 1996
Getting Started P110 Portable Radios
Battery Installation or Replacement
To Install Battery
1. Align the tabs on the top of the bat-
tery to the guide rails on the radio
(Figure 2).
2. Press battery and radio together.
3. Slide the battery towards the top of
the radio until the battery latches
click into place (arrow 1).
To Remove Battery
The basic operation needed for bat-
tery removal is illustrated in
Figure 2.
1. Disengage both battery latches,
located on each side of the bottom
of the radio (arrow 1).
2. Move battery down on guide rails
about 1/2 inch (arrow 2).
3. Pull the battery away from the
guide rails and remove from
housing.
On page 12 there are two different
methods for battery removal.
NOTE
Before each removal attempt, push battery bot-
tom towards top of radio to properly seat bat-
tery. Figures 3 & 4 show right-handed
operators, use mirror image of figures for left-
handed users.

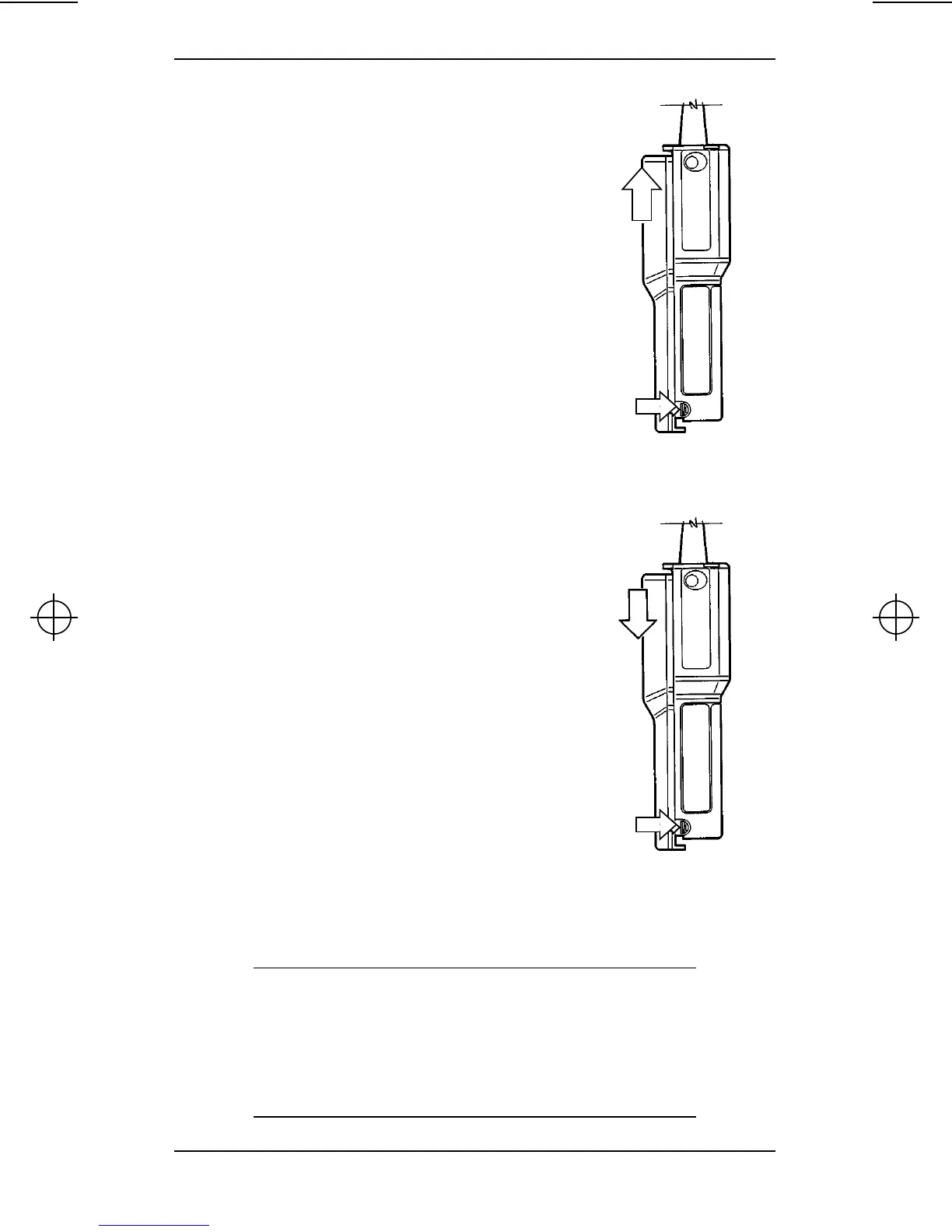

Figure 1.
1
2
Figure 2.
2
1
