Ref. Part Description Part Numbers
1 Arm Shaft Assembly Included in Kit B
2 Arm Assembly/Counterweight 71-P50472
3 Spoon Assembly 71-P50824
4 Spacer 71-P50420
5 Snap Ring 71-P00358
6 Pivot Cap Assembly 71-P50825
7 Pivot Assembly 71-P50826
8 Arm Spring 71-P50812
9 Spring Spacer 71-P50706
10 Arm Locknut Included in Kit B
11 Arm Washer Included in Kit B
12 Counterweight Kit 71-P50827
13 Elbow/Range Tube Assembly 71-P50471
14 O-Ring 71-P50155
15 Brake Assembly 71-P51176
16 Bearing Assembly 71-P50976
17 Friction Collar (2 Required) 71-P50116
18 Snap Ring 71-P50463
19 Ball Bearing 71-P50544
20 Lock Nut 71-P50793
21 O-Ring 71-P50121
22 Bearing Sleeve 71-P50794
23 Trip Lever Assembly 71-P50538
24 Trip Link Bushing 71-P50539
25 Elbow Shaft Washer (3 Required) Included in Kit A
26 Cotter Pin (3 Required) Included in Kit A
27 Trip Rod 71-P50478
28 Nozzle Retainer 71-105943
29 GNS-3003T Nozzle Set L003003
35 Spring, Red (8 Required) 71-P51165
36 Pressure Port Plug (1/4") 71-P20006
37 Spoon Bracket 71-P51099
38 Dry Pressure Gauge (not shown) DV160
Accessories
30 2" Female BSP Adapter 71-P50545
31 2" Female NPT Adapter 71-P50596
32 Bearing Wrench 71-P50697
33 Riser Installation Kit 71-P50368
34 Rear Counterweight L00270
Spare Parts Kit
A Misc. Kit 71-P50590
B Arm Shaft Kit 71-P50591

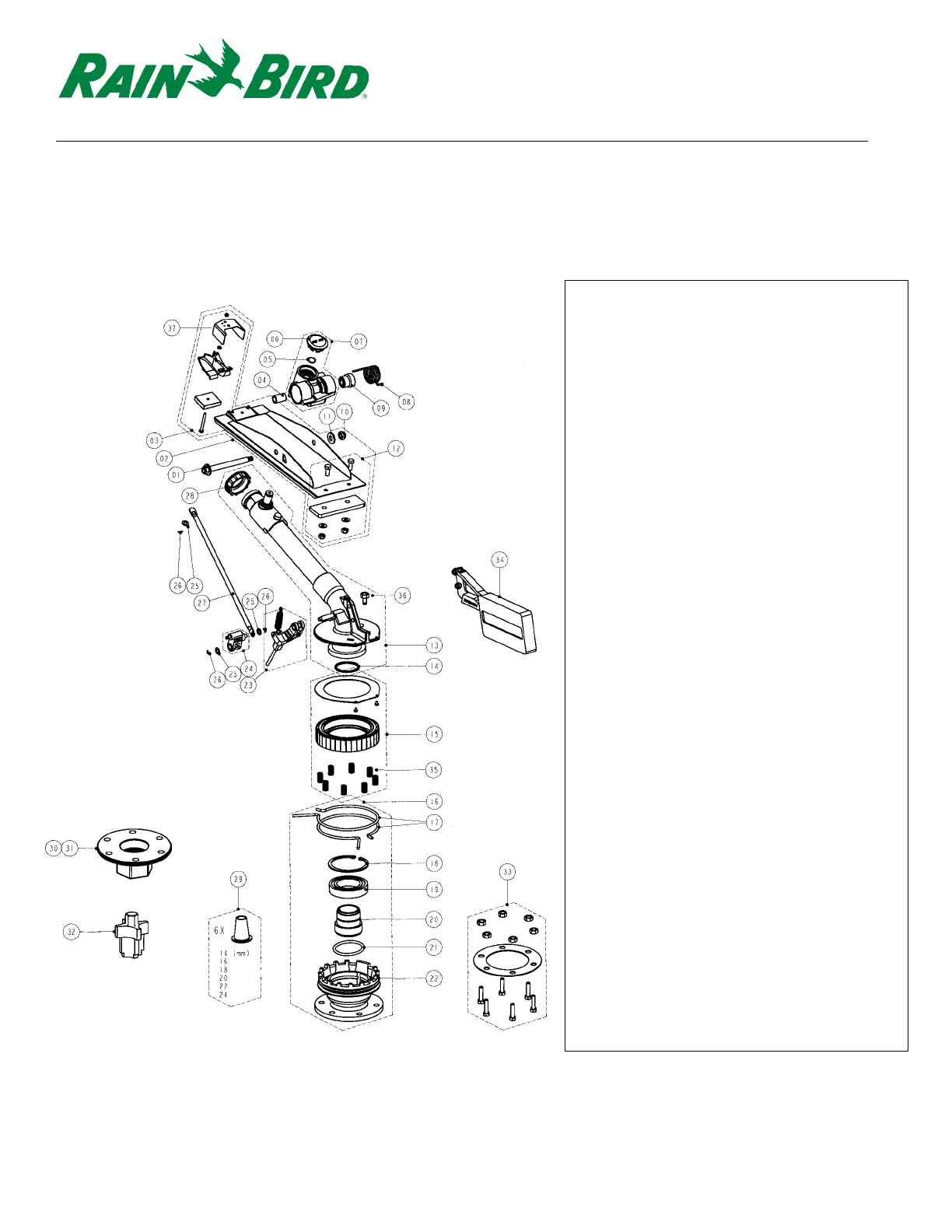

Parts Diagram and Description
