SHORTER #14 HARDWARE
(H163) MUST GO INTO DECK

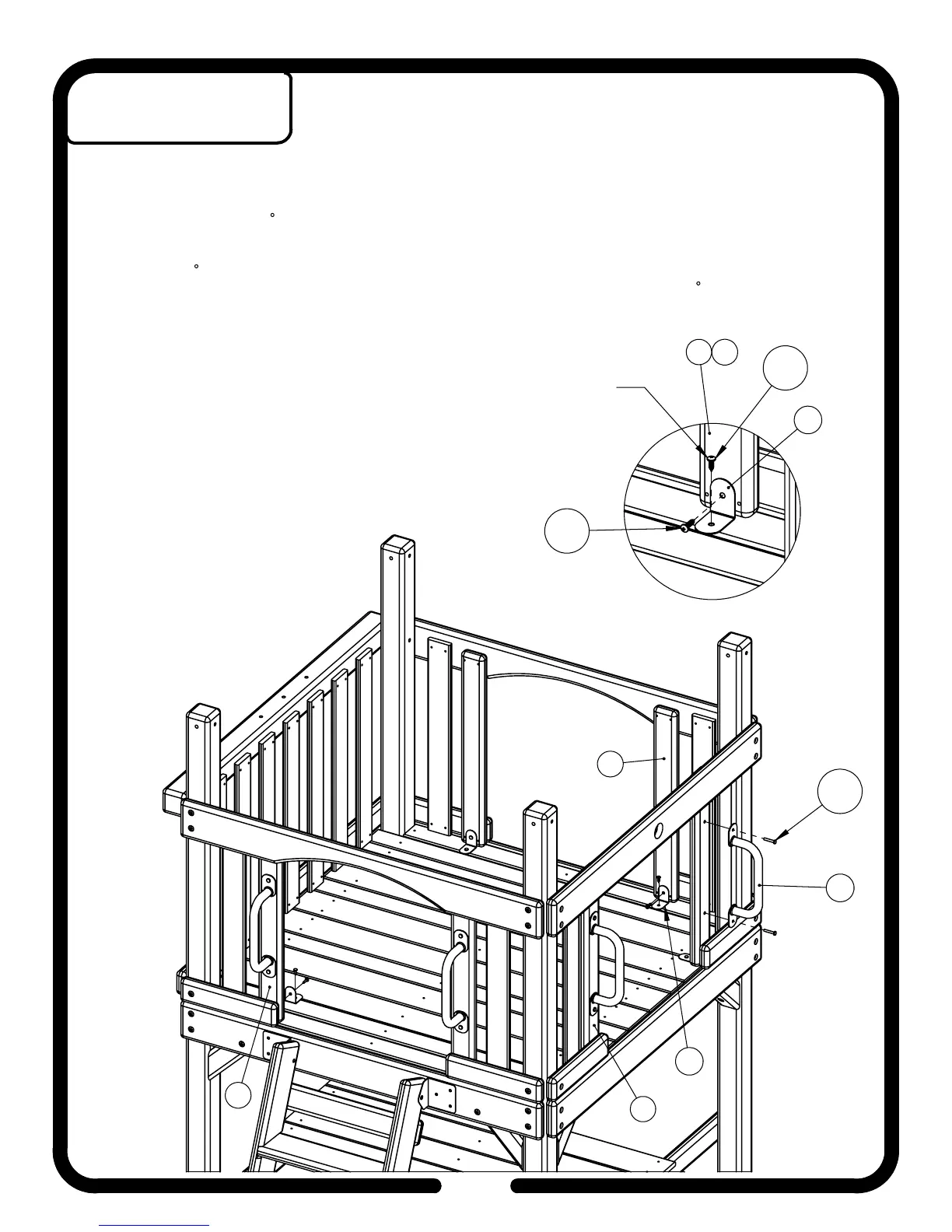

1. Attach Safety Handles
(N5)
to Rail Uprights with Handle Holes
(27)
using 1/4" Hardware
(H192)
.
*NOTE: Pre-drill holes for #14 Hardware (H163) (H164) with a 1/8" drill bit.
*NOTE: Position 90
Brackets so that the hardware does not hit the gaps between
Deck Boards.
2. Position 90
Brackets
(N8)
on Deck and up against Rail Uprights
(25) (27)
and attach using
#14 Hardware
(H163) (H164)
. The #14 Hardware
(H163)
must go through 90
Bracket
(N8)
and into Deck (as shown in Detail A).
29
Step 12
Rail Uprights Installation
