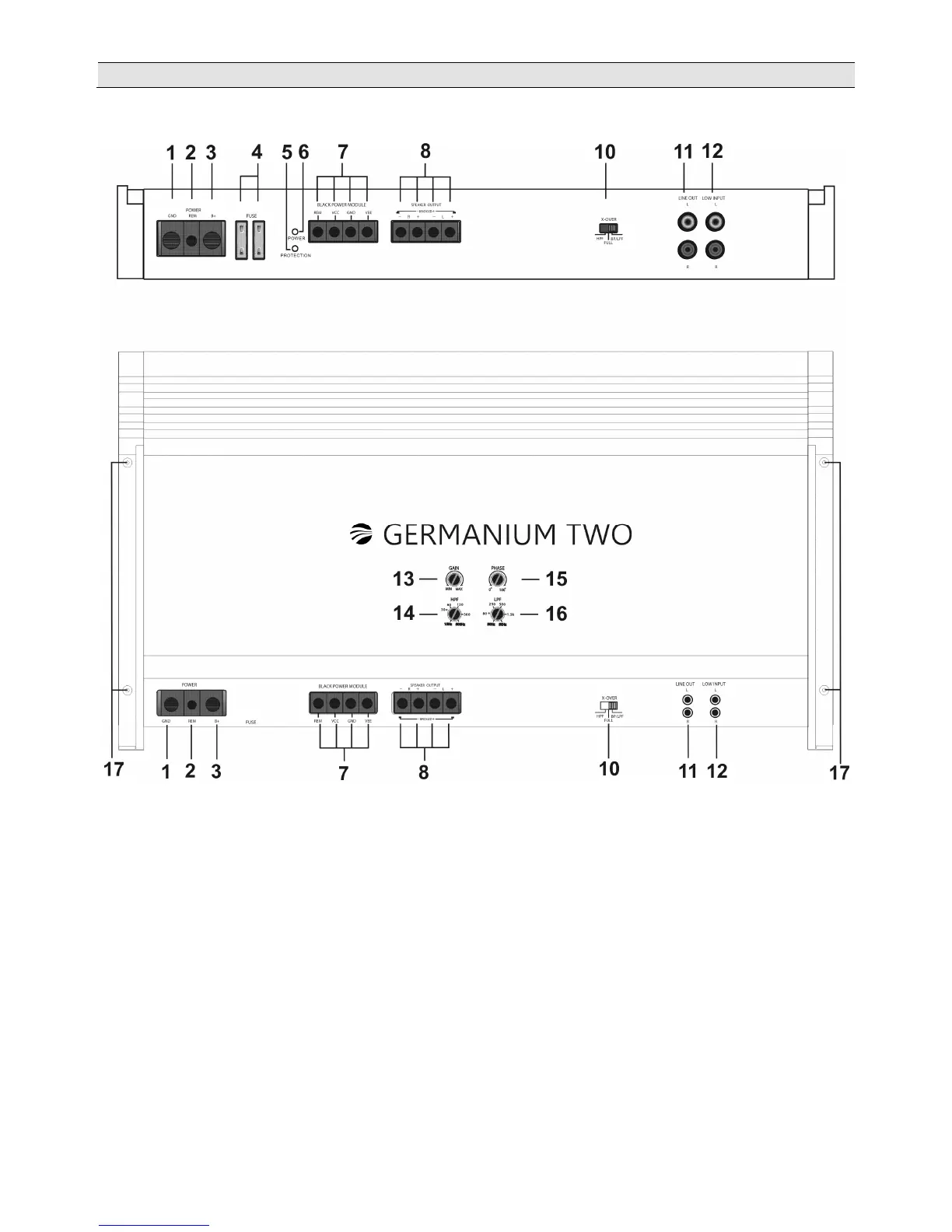

to 35 mm² )
2 = Remote connection of CD-radio.
3 = Power connection (+) plus, only over fuse (16 mm²
bis 35 mm² )
4 = Flat fuse 2 x 25A in accordance with DIN-standard, replaceable from outside Replace only with like kind!
5 = Protection: red LED
6 = Power: green LED
7 = Connection for peak performance coupling module (optional)
8 = Loudspeaker connections 2 channel Stereo (max. 10 mm²)
10 = Switch for high-pass (HPF) , broadband (FULL) or band- / low-pass (BP/LPF) operation
11 = Signal output „LINE OUT“ for subsequent amplifiers
12 = Input socket „LOW INPUT“ for signal input of CD-radio
13 = „GAIN“ control for adjustment of input sensitivity for „LOW INPUT“
14 = Phase shifter control from 0° to 180°
15 = Frequency control of high-pass from 15 Hz up to 500 Hz. Red point: 30 Hz
16 = Frequency control of low-pass from 50 Hz up to 5 kHz. Red point: 80 Hz
17 = Screw holes with spacing of hole 400 mm width, 129mm depth. Screw diameter max.: 4 mm. Screw head
diameter max.: 7.5mm
