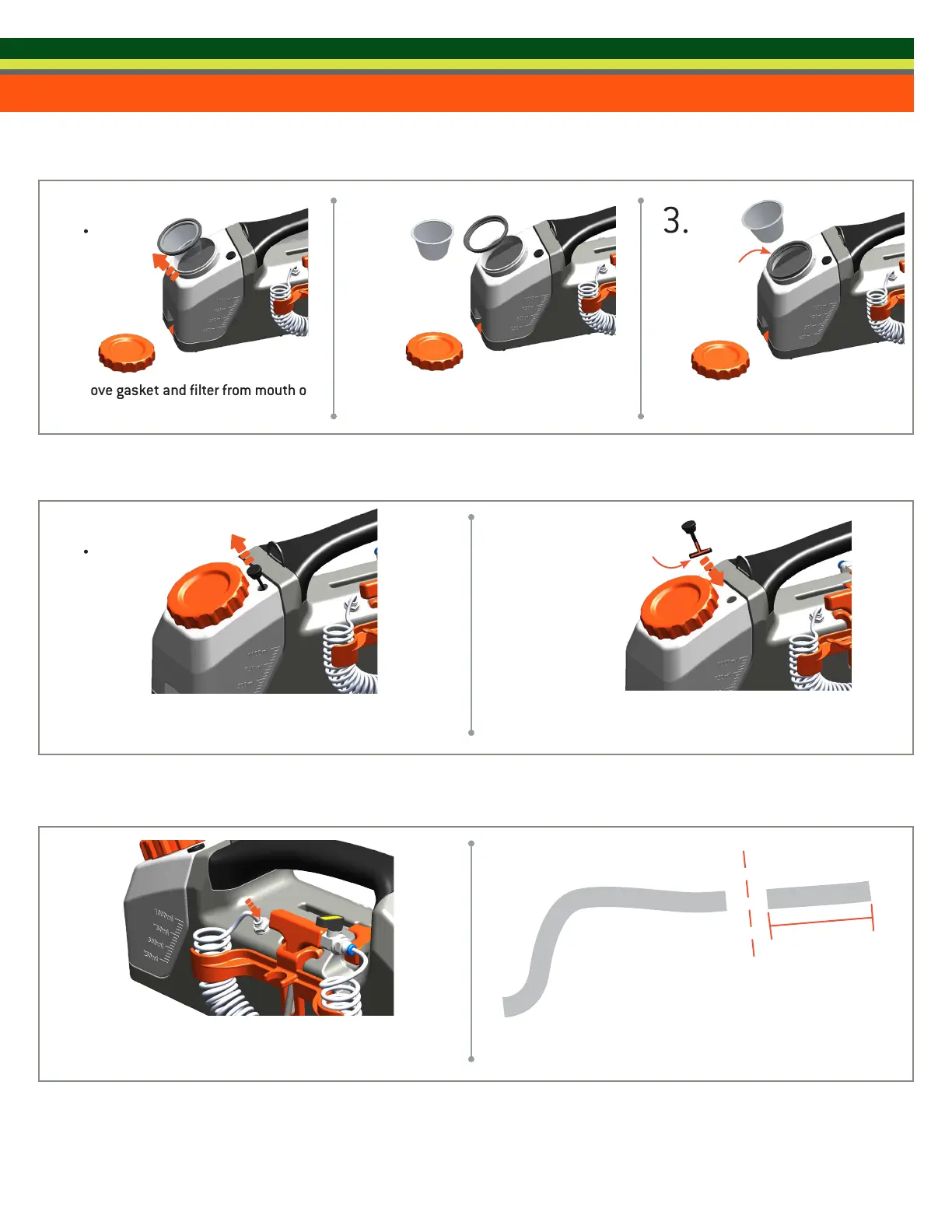

Replacing Or Removing The Fill Cap Gasket
Remove gasket and filter from mouth of
reservoir.
3.
Filter should pop out of gasket and can be
removed for cleaning.
To replace, add gasket to the mouth of
reservoir before inserting filter.
Quantum Repair Instructions
1.
2.
Replacing The Priming Port
Remove by gently pulling on plug.
Reinsert by squeezing T shaped end and pushing gently back
into place.
1.
2.
Repairing Or Replacing Tubing
Disconnect tubing by pushing in the plastic collet of the push-
to-connect fitting and at the same time pulling out the tube.
If needed, cut o about ¼" - ½" o the ends of the tubing with a
sharp razor knife.
Continued on next page »
Insert rubber
¼" - ½"
To Next Page
