(D) Installation
 Installation shall comply with applicable state and local regulations
 Caution: The ceramic filter cartridge in this unit is FRAGILE and should be treated like chinaware.
PACKING LIST
Utility Knife
Tools Needed
Measuring Tape
Adjustable wrench
Pencil
Drill & ½” Drill Bit
Philips screwdriver
Fig 3
2501
Fig 2

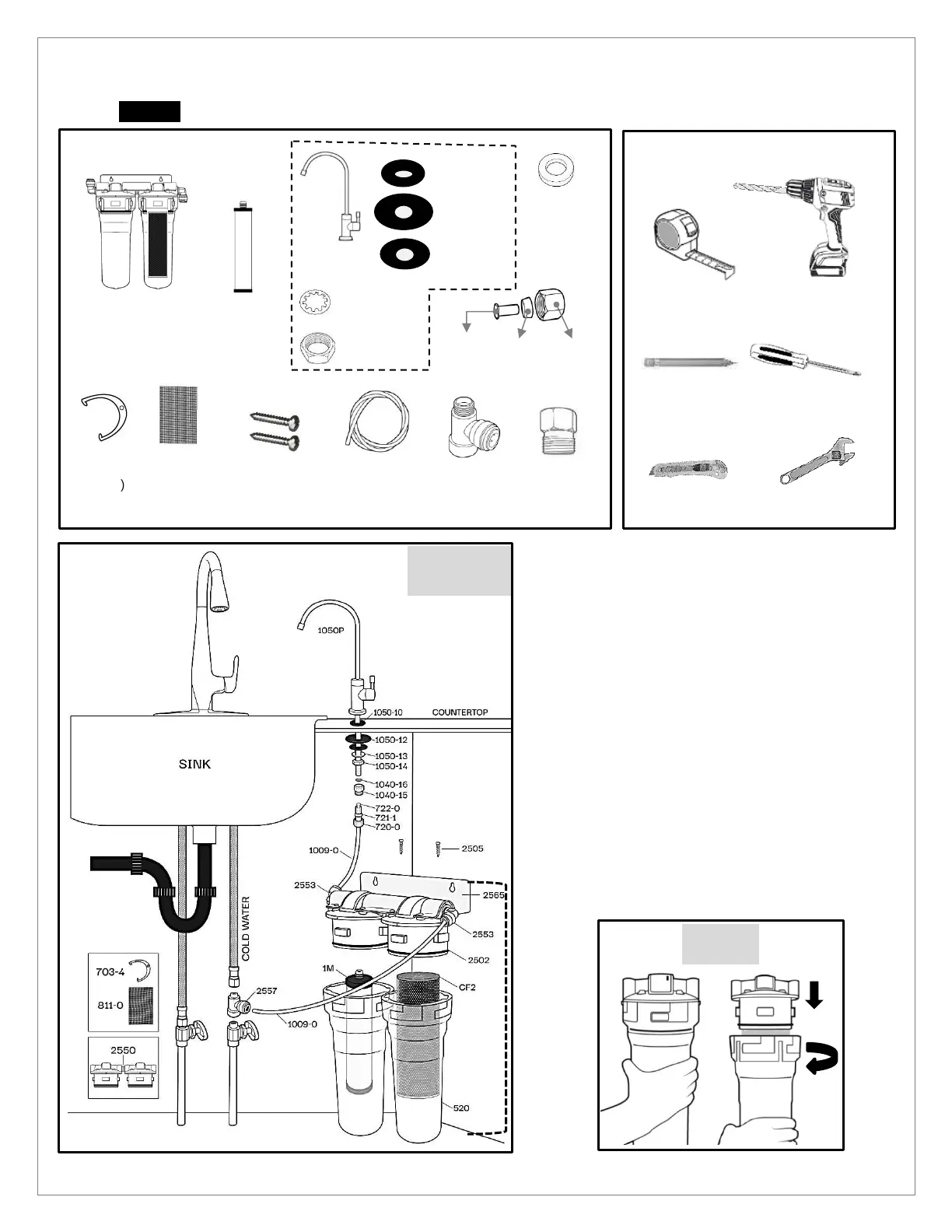

The following instructions are for installing the
UCS2 system under the sink. It can also be installed
on any other wall mounted remote location (such
as basement or crawl space) from where tubing
can be run to the faucet. The unit should not be
installed more than fifteen feet away from the
faucet. Call Rainfresh if you have questions.
Remove each sump (520) by turning it 1/8 turn left,
then pulling away from head (2501) (Fig 3).
Remove activated carbon filter cartridge (CF2) by
gently twisting and pulling away from head boss.
The ceramic cartridge (1M) is packed separately.
Set both cartridges and sumps aside in a safe place
until final assembly.
Supply fitting
(2557)
1
Main filter unit
with pre-filter
(CF2) inside
Ceramic
cartridge (1M)
1
Gauge
(703-4)
1
Scrub Pad
(811-0)
1
3/8” Tubing
(1009-0)
6 ft
Mounting screws
(1011-0)
2
Faucet
(1050)- 1
Adapter
Washer
(1040-16)
1
Adapter
(1040-15) - 1
1050-10 - 1
1050-11- 1
1050-12
(hard) - 1
1050-13- 1
1050-14- 1
Insert
722-0
Sleeve
721-1
Nut
720-0
18”
MIN.
FROM
FLOOR
