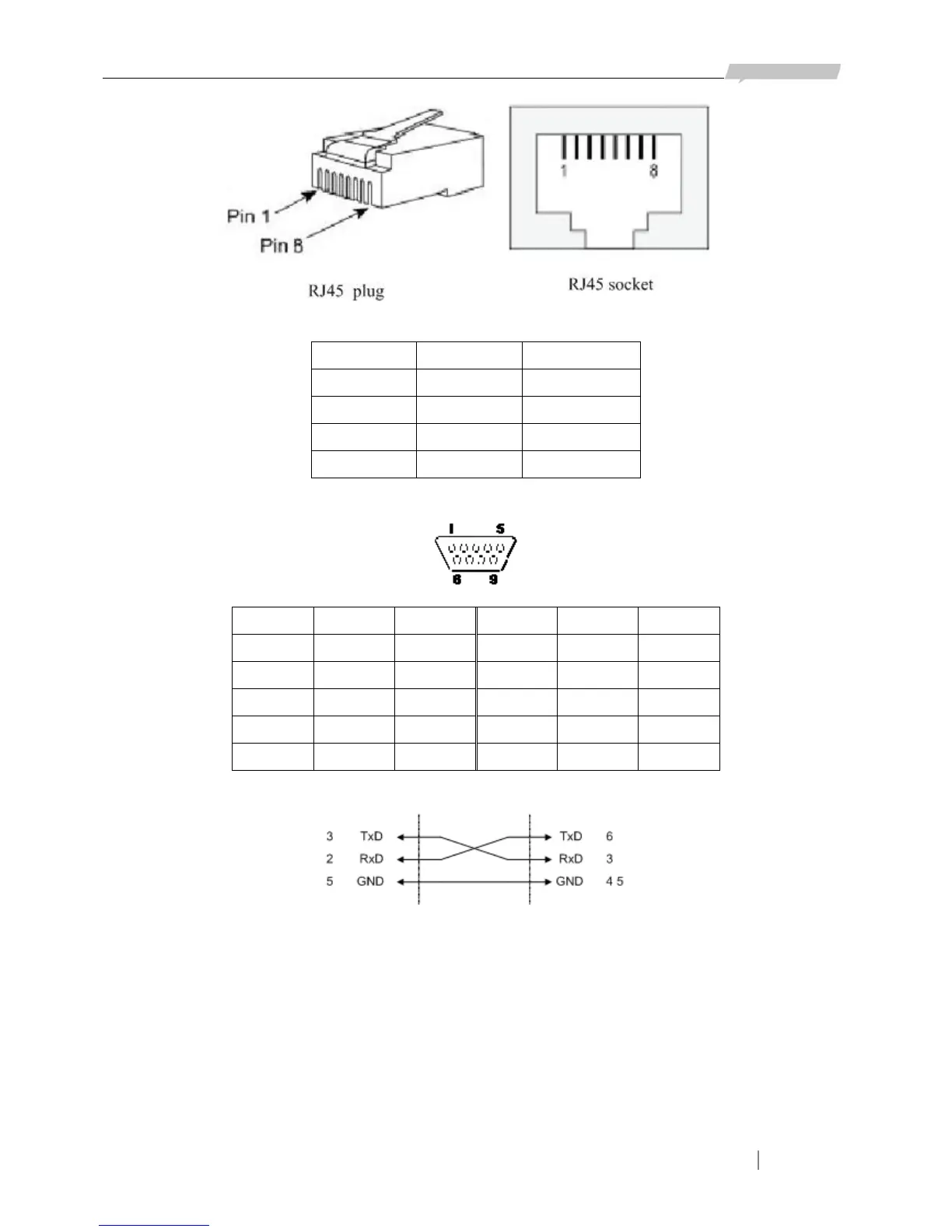

Signaling and Pinouts of ISCOM2128EA-MA CONSOLE port:
Pin number Signal Type
3 RxD In
6 TxD Out
4, 5 GND
1 ,2 ,7 ,8 N.C
 Signaling and Pinouts of PC serial port:
Pin No. Signal Type Pin No. Signal Type
1 DCD 6 DSR
2 RxD In 7 RTS
3 TxD Out 8 CTS
4 DTR 9 RI
5 GND
 CONSOLE connection and parameters:
PC serial interface ISCOM2128EA-MA CONSOLE
Parameters of simulation program on PC terminal are as follows:
 Baud rate – 9600
 Data bit– 8
 Stop bit– 1
 Parity– None
 Flow control– None
