Indicator Color Status Description
ON The corresponding port is in 1000BASE-X
Link Up status.
LNK Green
OFF The corresponding port is in 1000BASE-X
Link Down status.
Flickering The corresponding port is transmitting or
receiving data in 1000BASE-X status.
ACT Green
OFF No data transmitting or receiving at the
corresponding port that is in 1000BASE-X
status.
⑤ The status indicators for the 4 RJ-45 electrical interfaces in the 4 combo interface: LNK/ACK
and 1000M.
Indicator Color Status Description
ON The port is in Link Up status.
Flickering The port is transmitting or receiving data.
LNK/ACT Green
OFF The port is in Link Down status.
ON The electrical interfaces is working at the rate
of 1000Mbps in Link Up status
1000M Green
OFF The electrical interface is working at the rate
of 10Mbps or 100Mbps in Link Up status.
⑥ The CONSOLE interface.
3.2 Device rear panel description

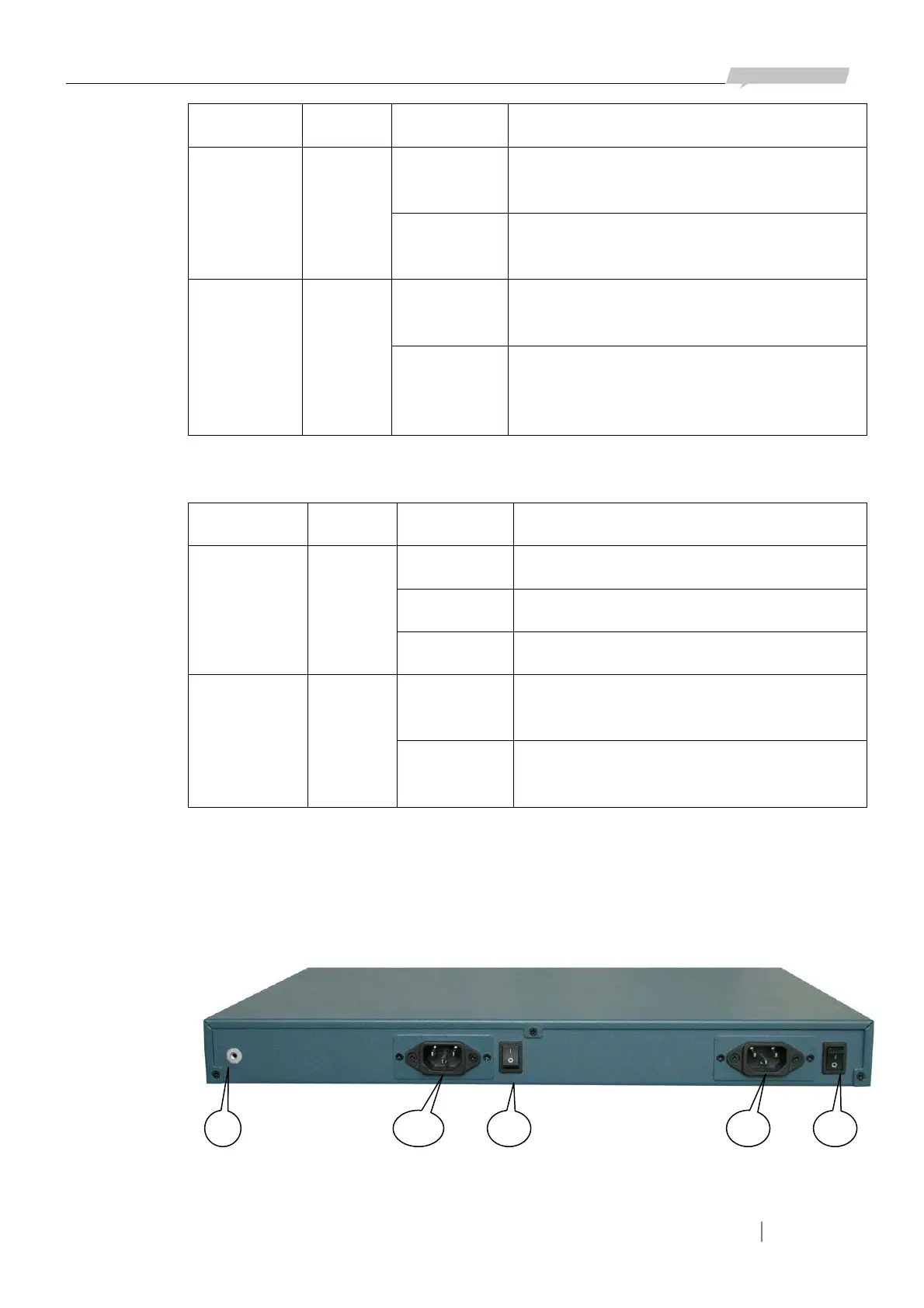

ISCOM2924GF’s rear panel is shown in the figure below.
In the figure shown above:
① Socket for power supply (Can be socket for 220V AC power supply or -48V DC power supply
3 1 2 1 2
