opposite PC with MDI interface by straight through cable.
4.3.3 Connect to the power supply
ISCOM2924GF-AC adopts 220V AC power supply. Please connect the socket on the rear panel of
the switch with 220V AC power supply using the provided power supply cable.
ISCOM2924GF-DC adopts -48V DC power supply. Please connect the socket on the rear panel of
the switch with -48V DC power supply using the provided power supply cable.
4.4 Cable making
For the pin numbering of RJ-45 connector and jack, please refer to the “CONSOLE interface signal
definitions of the switch” in section 4.3.1.

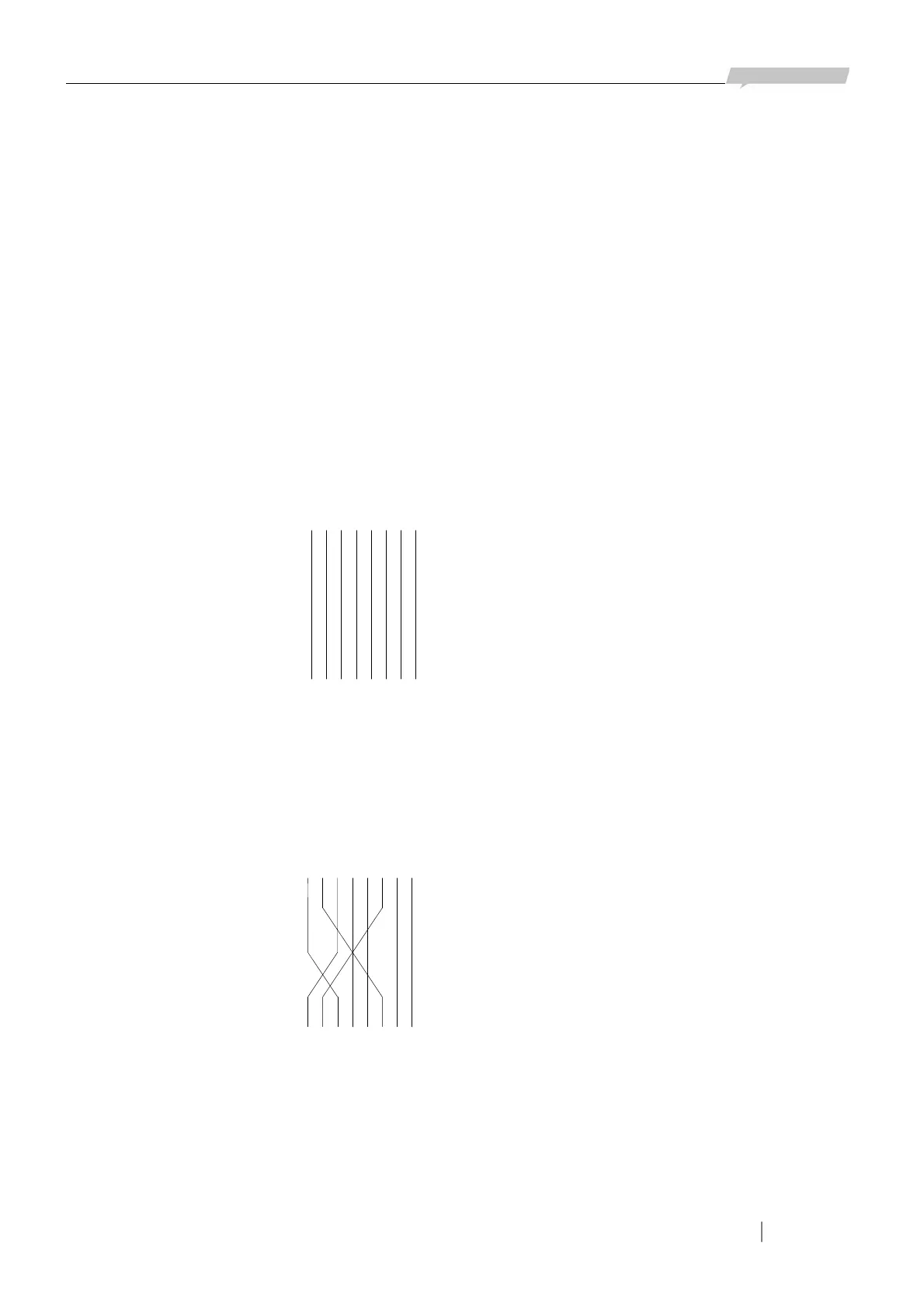

1) Straight through cable (The straight through cable for 100M or 1000M are identical.)
Side 1
1
1
Side 2
Side 1 Side 2
3
5 74 62 8
3574628
1 = White/Orange
7 = White/Brown
1 = White/Orange
2 = Orange
3 = White/Green
4 = Blue
5 = White/Blue
6 = Green
7 = White/Brown
8 = Brown
2 = Orange
3 = White/Green
4 = Blue
5 = White/Blue
6 = Green
8 = Brown
2) 100M Crossover cable
1
1
7 = White/Brown
Side 2
Side 1 Side 1 Side 2
1 = White/Green
3 = White/Orange
3 5 74 62 8
3574628
1 = White/Orange
2 = Orange
3 = White/Green
4 = Blue
5 = White/Blue
6 = Green
7 = White/Brown
8 = Brown
2 = Green
4 = Blue
5 = White/Blue
6 = Orange
8 = Brown
3) 1000M Crossover cable
