www.raisecom.com User Manual

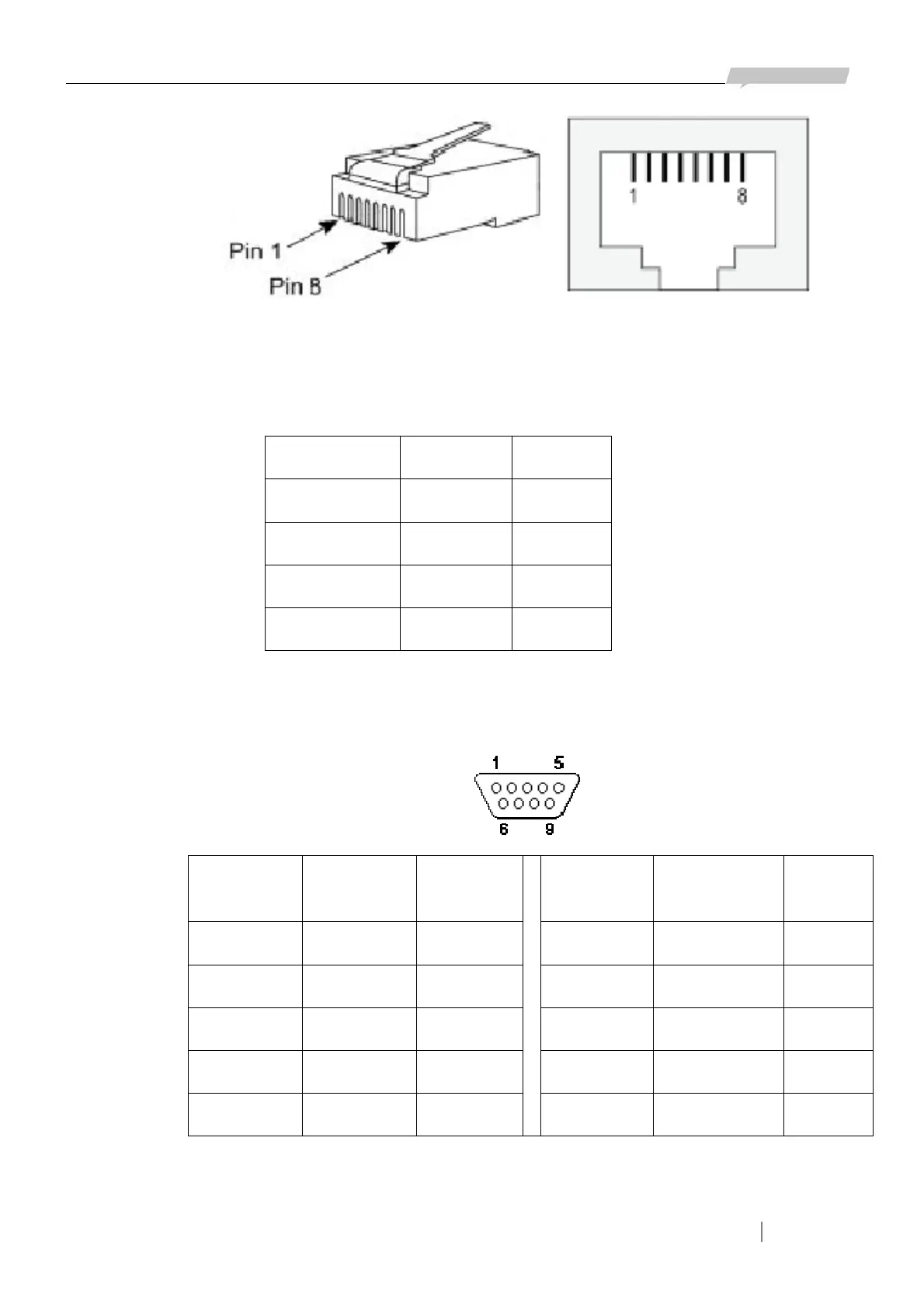

RJ-45 Connector RJ-45 Jack

The corresponding pin function definition of ISCOM2924GF CONSOLE interface is shown in the

table below:

Pin Number Function Type

3 RxD IN

6 TxD OUT

4, 5 GND Ground

1, 2, 7, 8 N.C.

2) PC serial port signal definition

The pin number and pin function definition of 9-pin serial port connector is shown in the figure and

table below.

Number

Function Type Pin

Number

Function Type

1 CD 6 DSR

2 RxD IN 7 RTS

3 TxD OUT 8 CTS

4 DTR 9 RI

5 GND

3) CONSOLE interface connecting pattern and parameter setup

The connecting of ISCOM2924GF CONSOLE interface and PC serial port is shown in the figure

below.
