ISCOM5508-GP (A) Hardware Description
1 0BProduct overview
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
2
When installing the chassis to the 19-inch 600-mm cabinet, you need to purchase
brackets applicable to the cabinet.
1.2 Appearance and slots
1.2.1 Appearance of chassis
The ISCOM5508-GP is a cartridge device, which is flexible to be deployed. Dimensions of
the chassis are: 440 mm (Width) × 266 mm (Depth) × 44 mm (Height) (without brackets).
Figure 1-1 shows the appearance of the ISCOM5508-GP chassis.
Figure 1-1 Appearance of the ISCOM5508-GP chassis
1.2.2 Distribution of slots
The ISCOM5508-GP provides the following 6 slots:

1 main control switching card slot

2 expansion subcard slots

1 fan module slot

2 power module slots

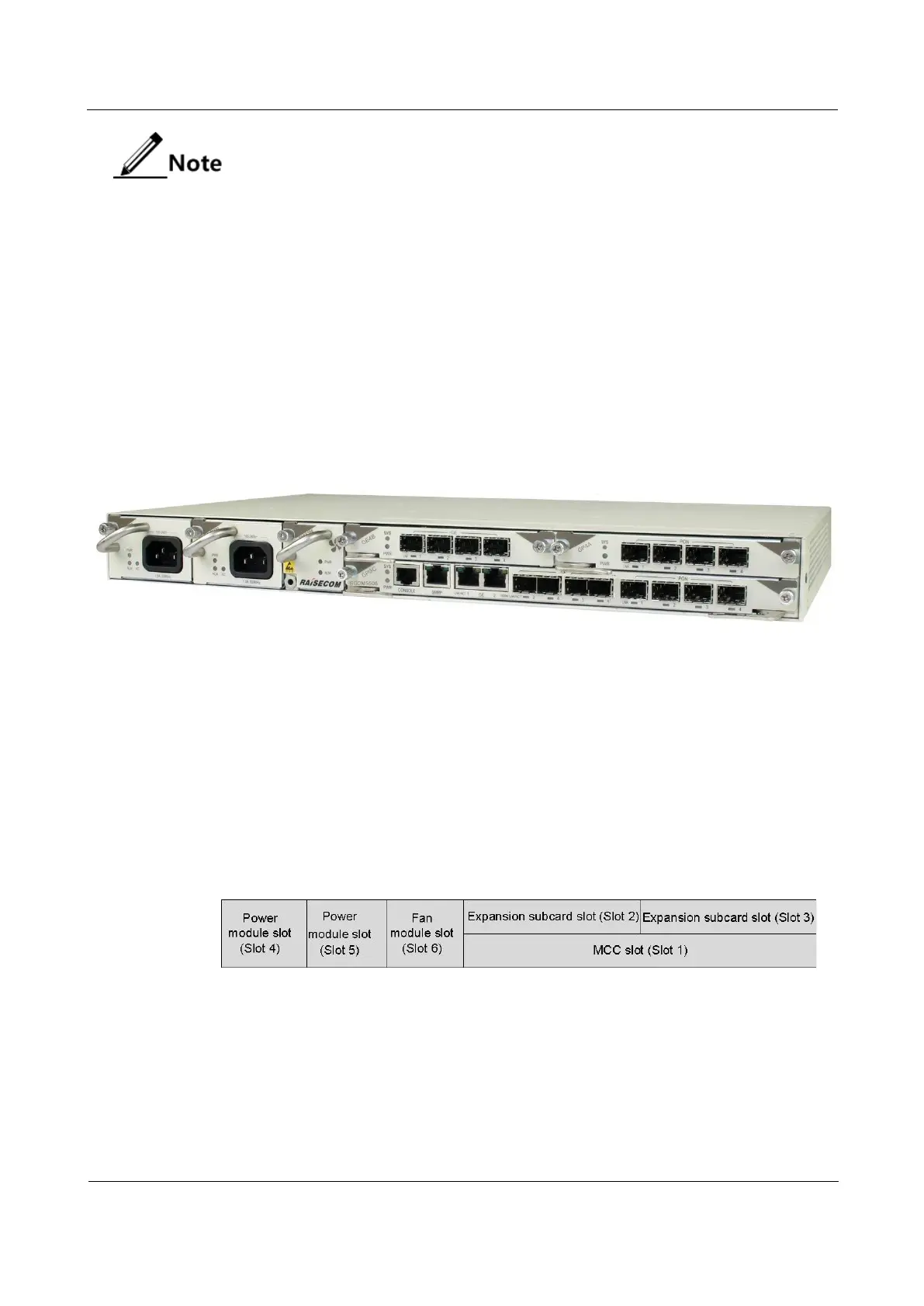

Figure 1-2 shows distribution of slots on the ISCOM5508-GP.
Figure 1-2 Distribution of slots on the ISCOM5508-GP
1.3 Physical parameters
Table 1-1 lists physical parameters of the ISCOM5508-GP.
