ISCOM5508-GP (A) Hardware Description
2 1BComponents
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
5
Component Name Description
WDFA4

Input 1 way of CATV services.

Input 4 ways of OLT data services.

Output 4 ways of wave multiplexing
services.
Power module RPA1101-SI-220S12 110/220 VAC power module
RPD1101-48S12 -48 VDC power module
Fan module FANS306 Fan module
2.1.2 Appearances of components
Appearance of main control switching card

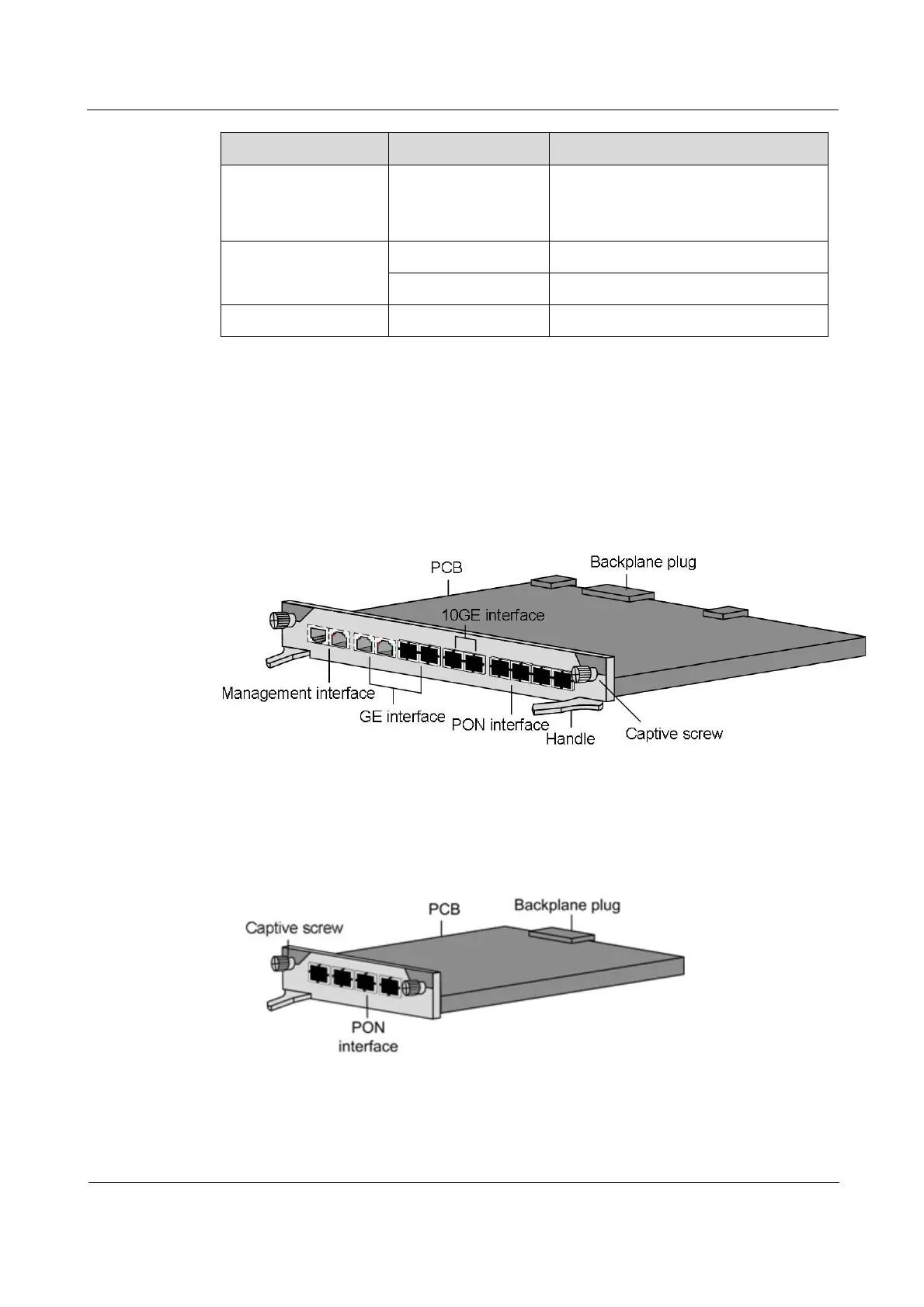

Figure 2-1 shows the appearance of the main control switching card (GPSC).
Figure 2-1 Appearance of the main control switching card (GPSC)
Appearance of expansion subcards
Figure 2-2 shows the appearance of the GP4A subcard.
Figure 2-2 Appearance of the GP4A subcard
Figure 2-3 shows the appearance of the GE4B subcard.
