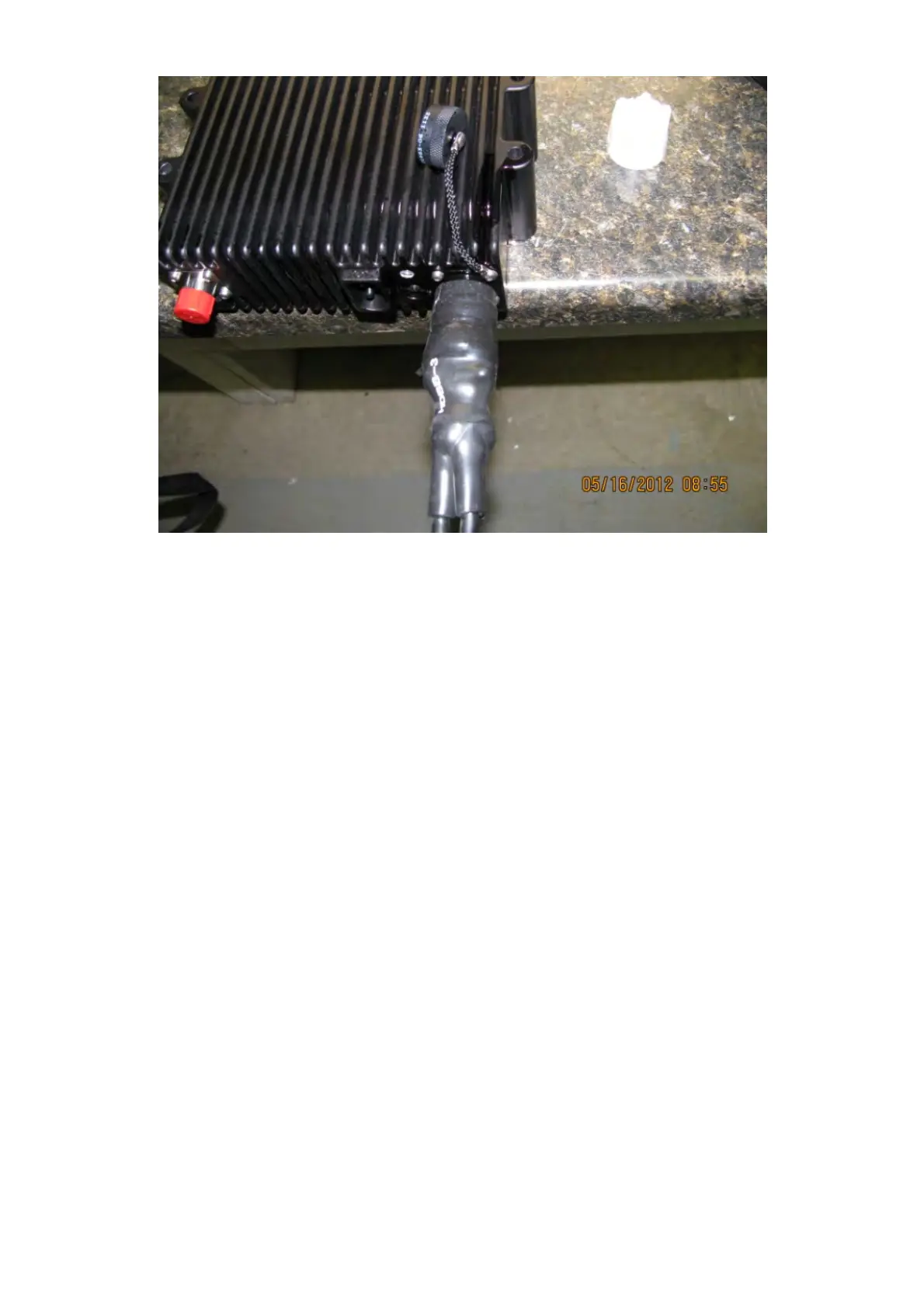

Add a thin layer of Liquid electrical tape to the top of the connector overlapping the self fusing silicone
tape to seal the top of the connector as seen above.
Next connect the LTW connector on the Eth0 port and replace the caps on the Eth1 and USB ports. If the
Eth 1 or the USB port is going to be used connect the LTW side of the cable to the squid. Apply a thin layer
of Star Brite Liquid tape. Just enough to seal the gap between the cap and threads to the thread side of
the cap or connector making sure to pay attention to the flat spot on the female thread side. The liquid
tape should be allowed to dry for approximately 5 minutes before moving the connectors.
The Liquid Electric tape should remain pliable so it can be removed to service the radio.
Do not use Gardner Bender brand Liquid tape. This brand tends to become very hard over long periods of
time which may impair removal.
