12
www.ramsetinc.com
RAMSET
RAM 30
DIP SWITCH "B"

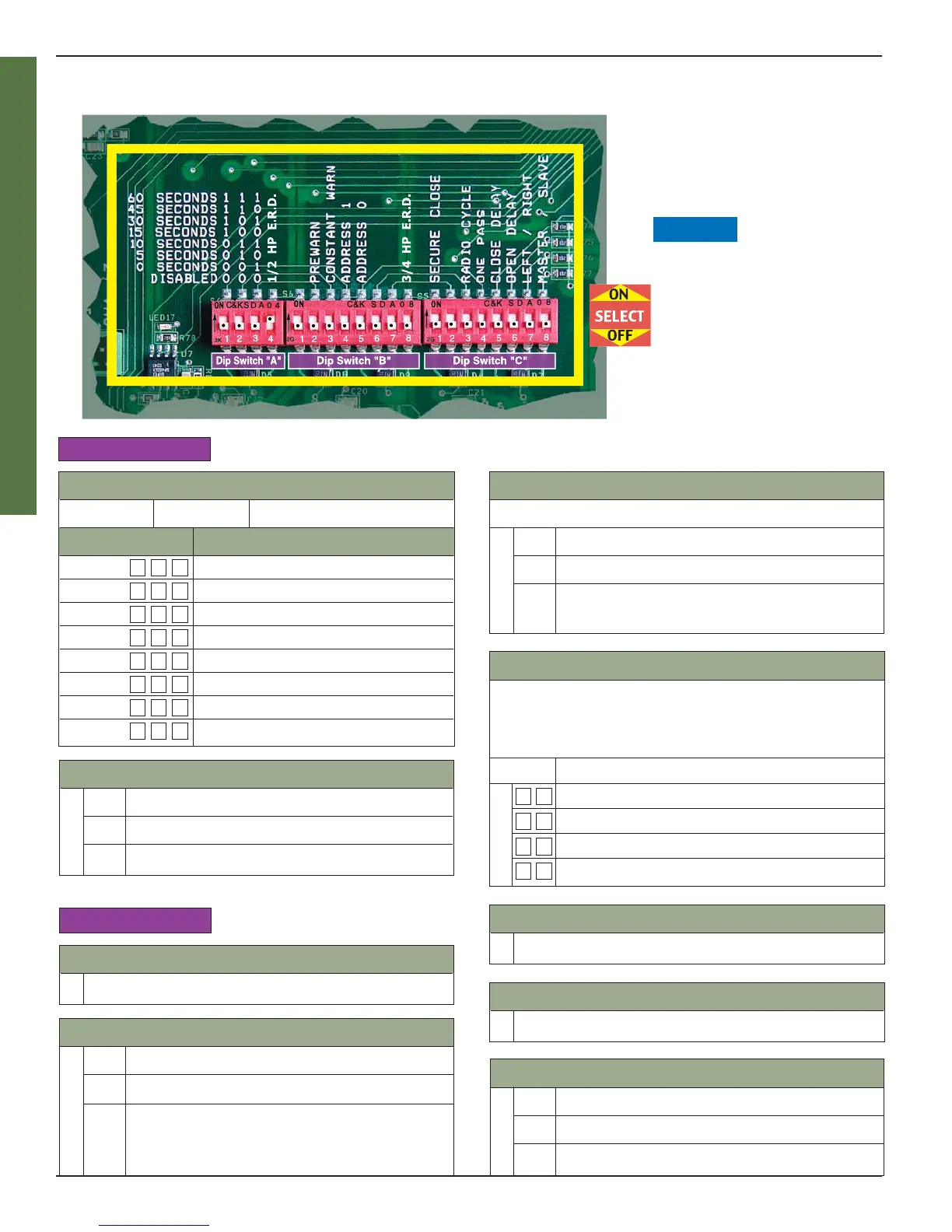

DIP SWITCH CONFIGURATION
DIP SWITCH "A"
Dip Switch "A" 1, 2 & 3;
AUTOMATIC TIMER TO CLOSE GATE
‘0’ is “OFF” ‘1’ is “ON”
Switch 1 2 3 Gate Open Duration:
11160 seconds
11045 seconds
10130 seconds
10015 seconds
01110 seconds
01005 seconds
00100 seconds
000Disabled - command required to close
Dip Switch "A" 4; 1/2 HP E.R.D.
Sw. Function:
OFF Most sensitive or when using 3/4 hp motor.
ON Stronger (Less sensitive) E.R.D. for 1/2 hp motors.
Dip Switch "B" 1; Not in use at this time.
Leave in the ‘Off’ position.
Dip Switch "B" 2; “PREWARN”
Sw. Pre Warning Relay:
OFF Normal Operation
ON Adds a 3-second delay before the gate moves in
any direction. During This 3 second delay the
PREWARN Relay maintains a closed contact.
Dip Switch "B" 3; “CONSTANT WARN”
(Constant warning when gate is in motion).
Sw. Function:
OFF No effect.
ON Triggers the prewarn relay to maintain a closed
contact while gate is in motion.
Dip Switch "B" 6; Not in use at this time.
Leave in the ‘Off’ position.
Dip Switch "B" 7; Not in use at this time.
Leave in the ‘Off’ position.
Dip Switch "B" 8; 3/4 HP E.R.D.
Sw. Function:
OFF Most sensitive or when using a 1/2 hp motors.
ON Stronger (Less sensitive) E.R.D. for 3/4 hp motors.
Dip Switch Up for "ON"
Dip Switch Down for "OFF"
Figure 12
Dip Switch "B" 4 & 5; “ADDRESS 1 & ADDRESS 0”
Up to four separate entrance addresses are available for
installations with multiple entrance or exit locations.
Master and slave gates that work together should be set to
the same address. (Side gates use the address setup)
Sw. 4 5 Function:
0 0 Default - Entrance 1
0 1 Entrance 2
1 0 Entrance 3
1 1 Entrance 4
