5.8.2 Inspection
Ins
pection for wear on top hook and load hook SHALL be checked routinely. Measure the throat opening.
(dimension-a2). If throat opening exceeds maximum opening allowed, replace hook. Damaged safety
latches SHALL be replaced immediately.
Maximum throat opening allowed:
Hook Class: 012P load hook top hook
Maximum opening allowed: 0.906” [23 mm] 0.906” [23 mm]
5.8.3 Hook Dimensions and Specifications

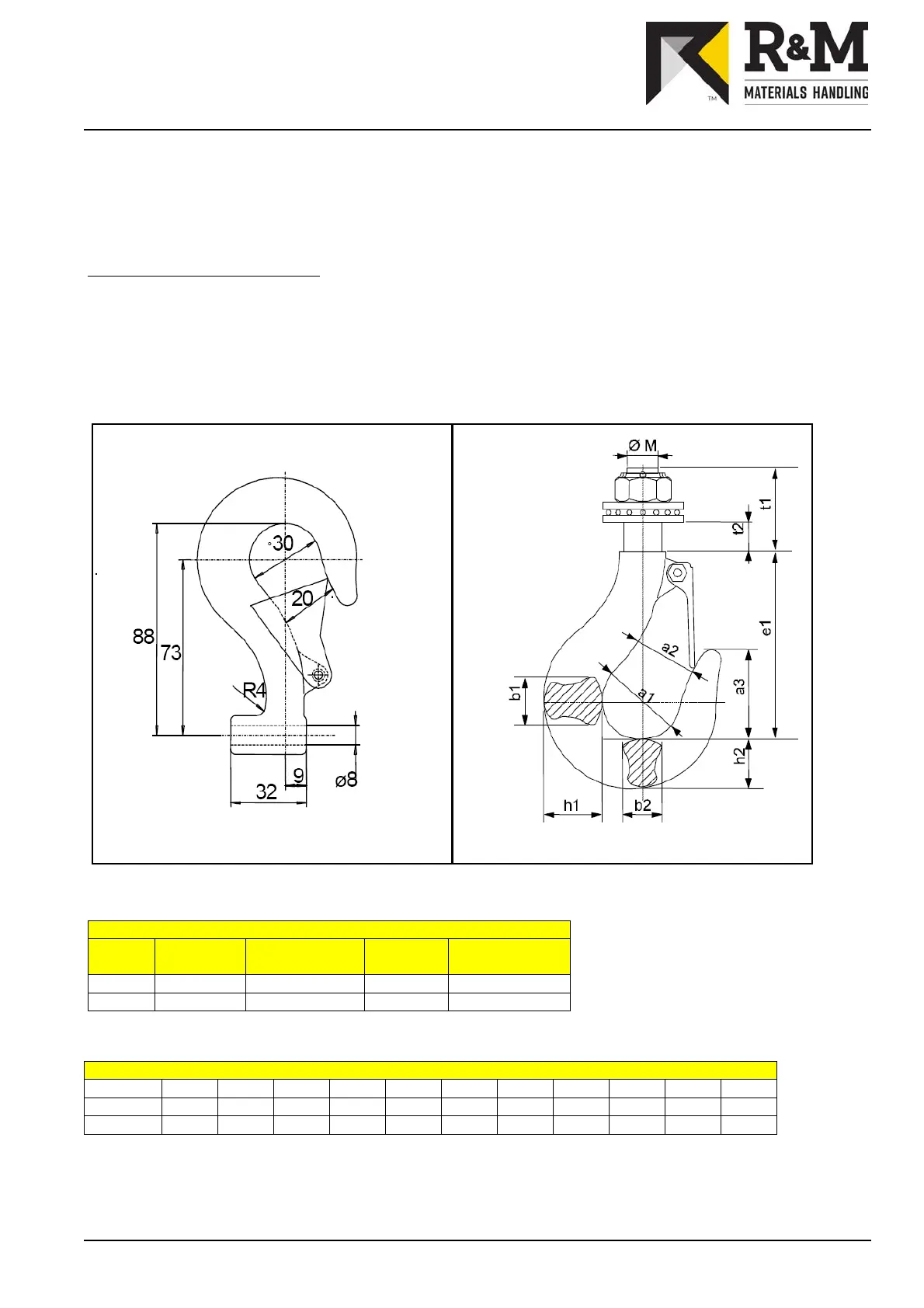

Figure 11. Hook Dimensions
Table 3. Hook Specifications
SPECIFICATIONS
CAP tons
CAP
kg
TEST
kg
FALLS
HOOK
CLASS
1/8 125 1102 1 012P
1/4 250 1102 2 012P
Table 4. Hook Dimensions
HOOK DIMENSIONS
Ø M Ø a1 a2 a3 b1 b2 e1 h1 h2 t1 t2
Inches
0.551 1.181 0.787 1.339 0.748 0.591 3.268 0.866 0.748 1.260 0.394
mm
14 30 20 34 19 15 83 22 19 32 10
Mark: ISO 2766 DIN model number: 15401
DIN 15400 class: T DIN 15401 material: 35 CD 4
