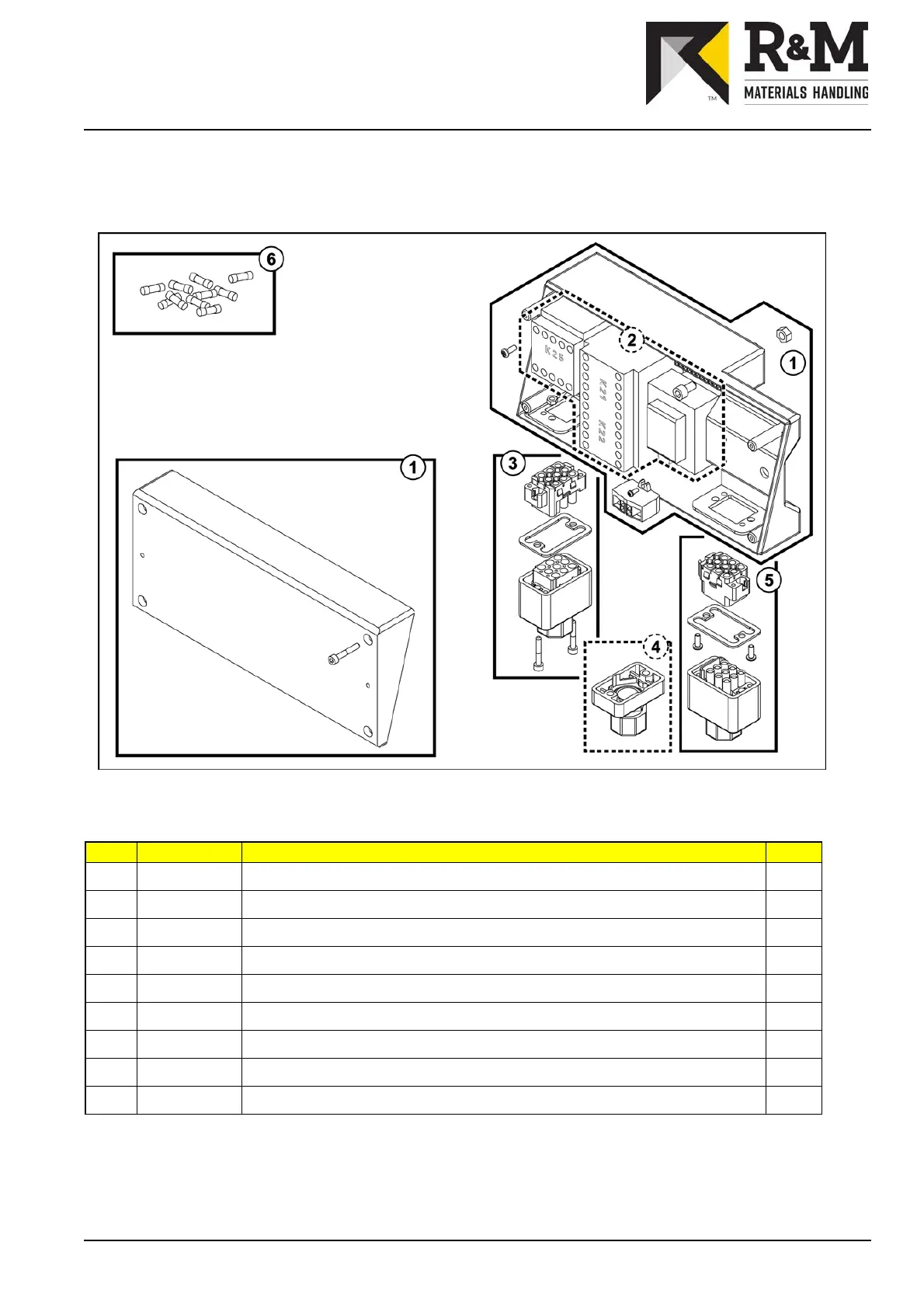

7.4 Control Panel Assembly – 3 Phase Power Supply
Table 14. Control Panel Assembly (3-Phase Power Supply) Parts List
ITEM PART NUMBER DESCRIPTION QTY
1 2218078 CONTROL BOX COVER SET 1
2a 2218095 PC BOARD 208/230VAC – TWO SPEED ( 115V CONTROL VOLTAGE ) 1
2b 2218094 PC BOARD 460VAC – TWO SPEED ( 115V CONTROL VOLTAGE ) 1
2c 2218096 PC BOARD 575VAC – TWO SPEED ( 115V CONTROL VOLTAGE ) 1
3 2249982 POWER PLUG SET (OPTIONAL ON C01 HOIST) 1
4 2249947 POWER CABLE GLAND 1
5 2249945 X23 PUSH BUTTON PLUG SET FOR CONTROL BOX 1
6a 52314754 CONTROL CIRCUIT FUSES – 115V CONTROL VOLTAGE – SET OF 10 1
6b 2219988 CONTROL CIRCUIT FUSES – 48V CONTROL VOLTAGE – SET OF 10 1
