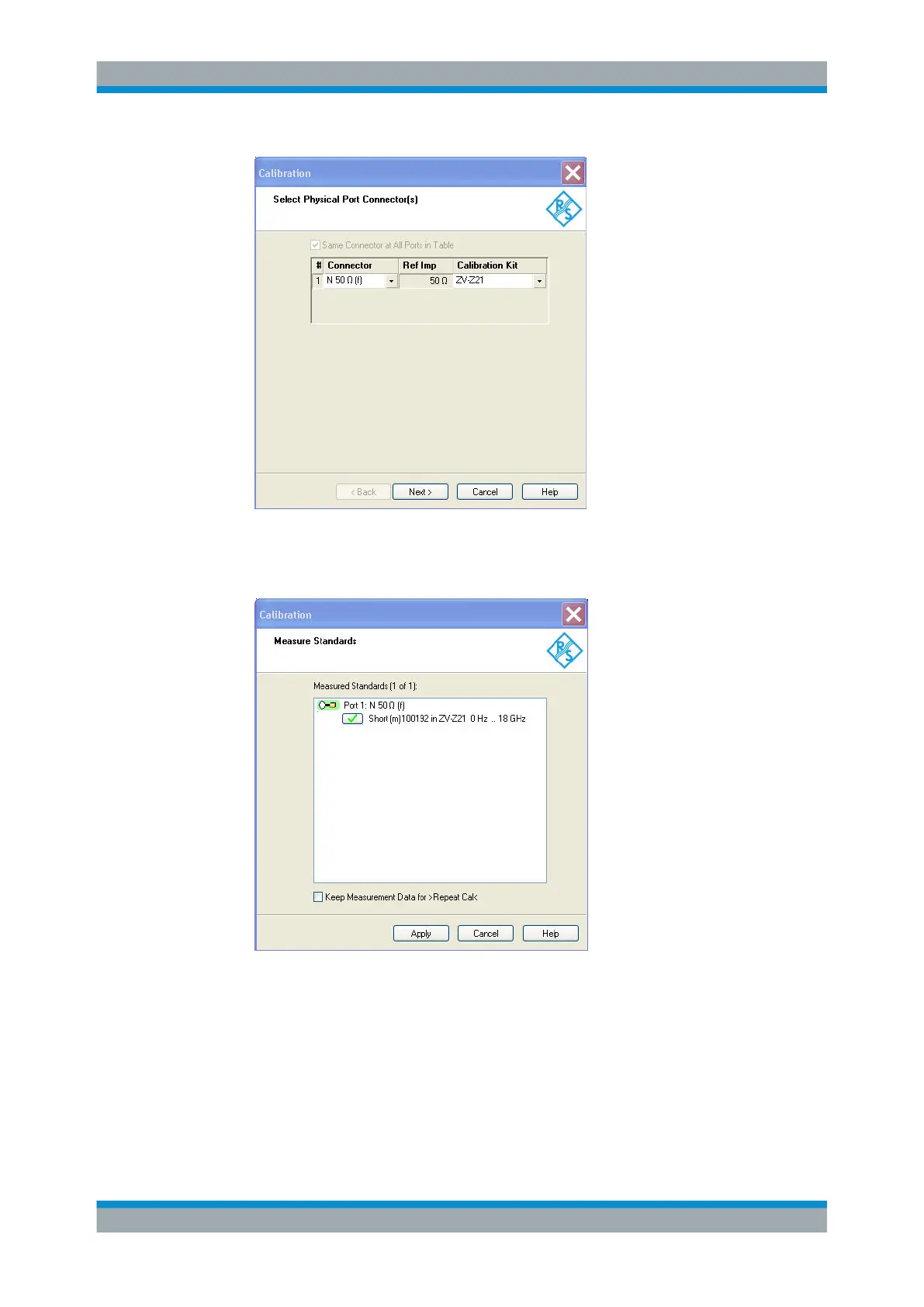

4. In the first dialog of the wizard, select the calibration kit (here: "ZV-Z21") and the

test port connector (here: N 50 Ω (f), corresponding to a male calibration standard),

and click "Next".

The next dialog of the calibration wizard shows that only a single calibration stand-

ard needs to be measured.

5. Click the box "Short (m)..." to initiate the measurement of the connected short

standard.

The analyzer performs a calibration sweep and displays a message box with a pro-

gress bar. After completing the sweep the analyzer generates a short sound and a

green checkmark appears in the checkbox.
