R&S ZVA Series User Manual

Getting Started
R&S
®
ZVA
38Getting Started 1145.1090.62 ─ 13

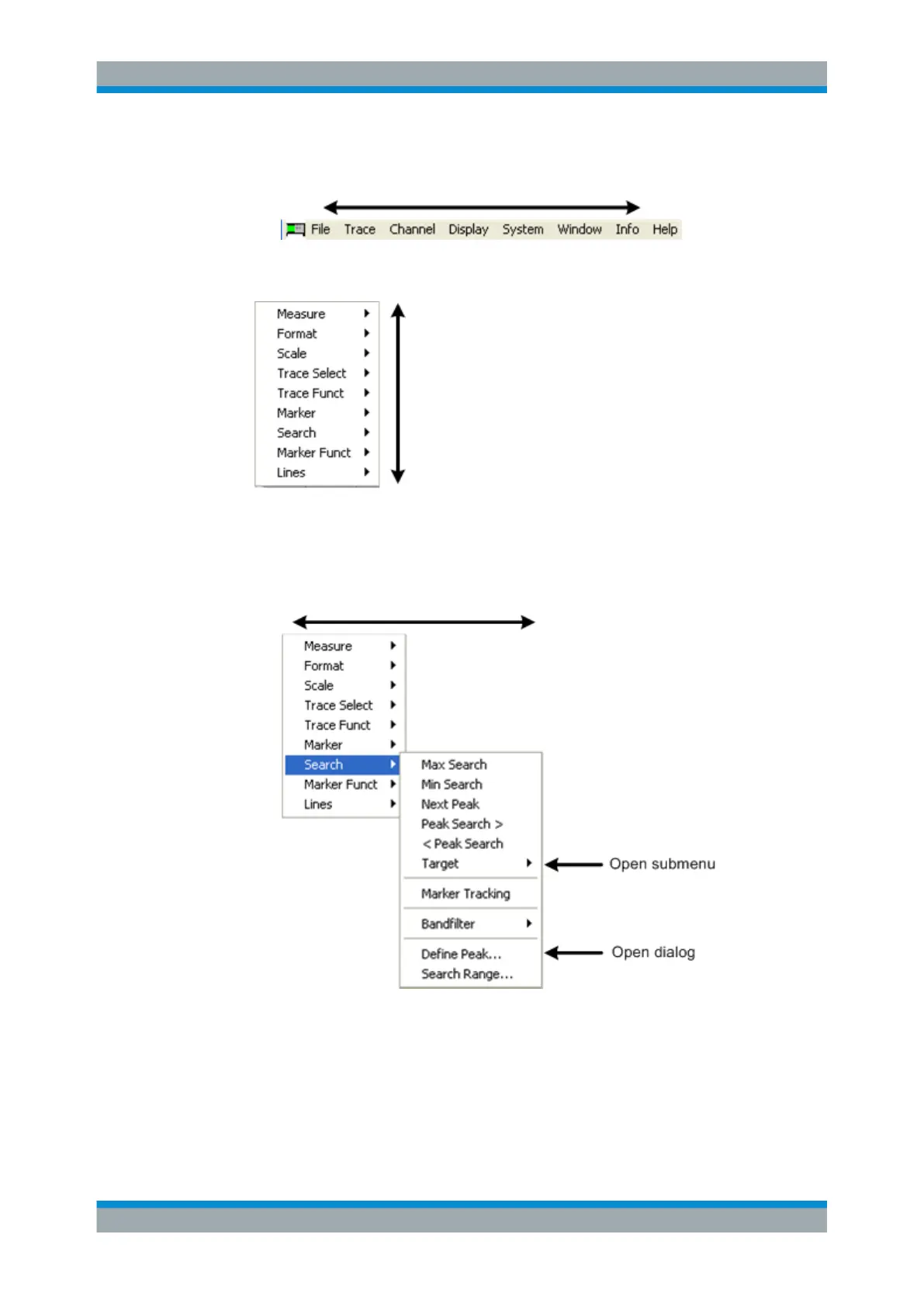

menu, the submenu will be opened first before proceeding to the next option in
the menu bar.
● Use the "Cursor Up" and "Cursor Down" keys and the rotary knob (if rotated) to
scroll up and down in a menu.
● OK ENTER and the rotary knob (if pressed) expand a submenu, open a dialog,
or initiate an action, depending on the selected command type.
● CANCEL ESC compresses the current submenu and moves the cursor one
menu level up or closes the active dialog, depending on the selected softkey
type.
3. As soon as you reach the desired menu command (which must not be one opening
a submenu) press OK ENTER or press the rotary knob to initiate an action or open
a dialog.
After command execution or after closing the dialog, the menu bar is deactivated
and the cursor returns to the diagram/softkey area.
