System Overview
R&S
®
ZVA
60Getting Started 1145.1090.62 ─ 13
●

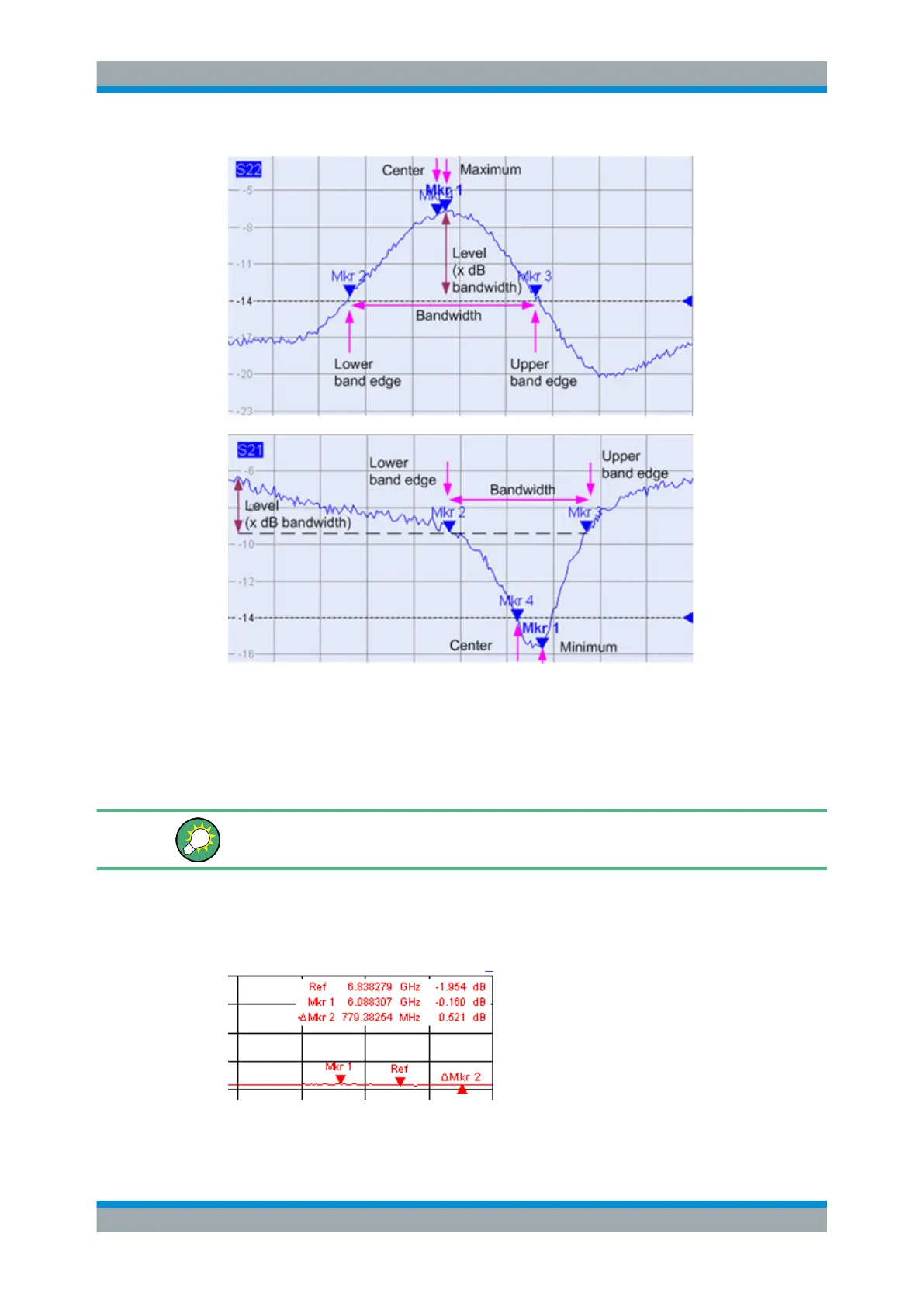

"Mkr 1" indicates the maximum (minimum) of the peak.
●
"Mkr 2" and "Mkr 3" indicate the lower and upper band edge where the trace value
has decreased (increased) by a definite "Level" value.
●
"Mkr 4" indicates the center of the peak, calculated as the arithmetic mean value of
the LBE and UBE positions.
The "Paste Marker List" allows you to select marker values as numeric entries; see
chapter 3.2.3.4, "Paste Marker List", on page 66.
Marker Info Field
The coordinates of all markers defined in a diagram area are displayed in the info field,
which by default is located in the upper right corner.
