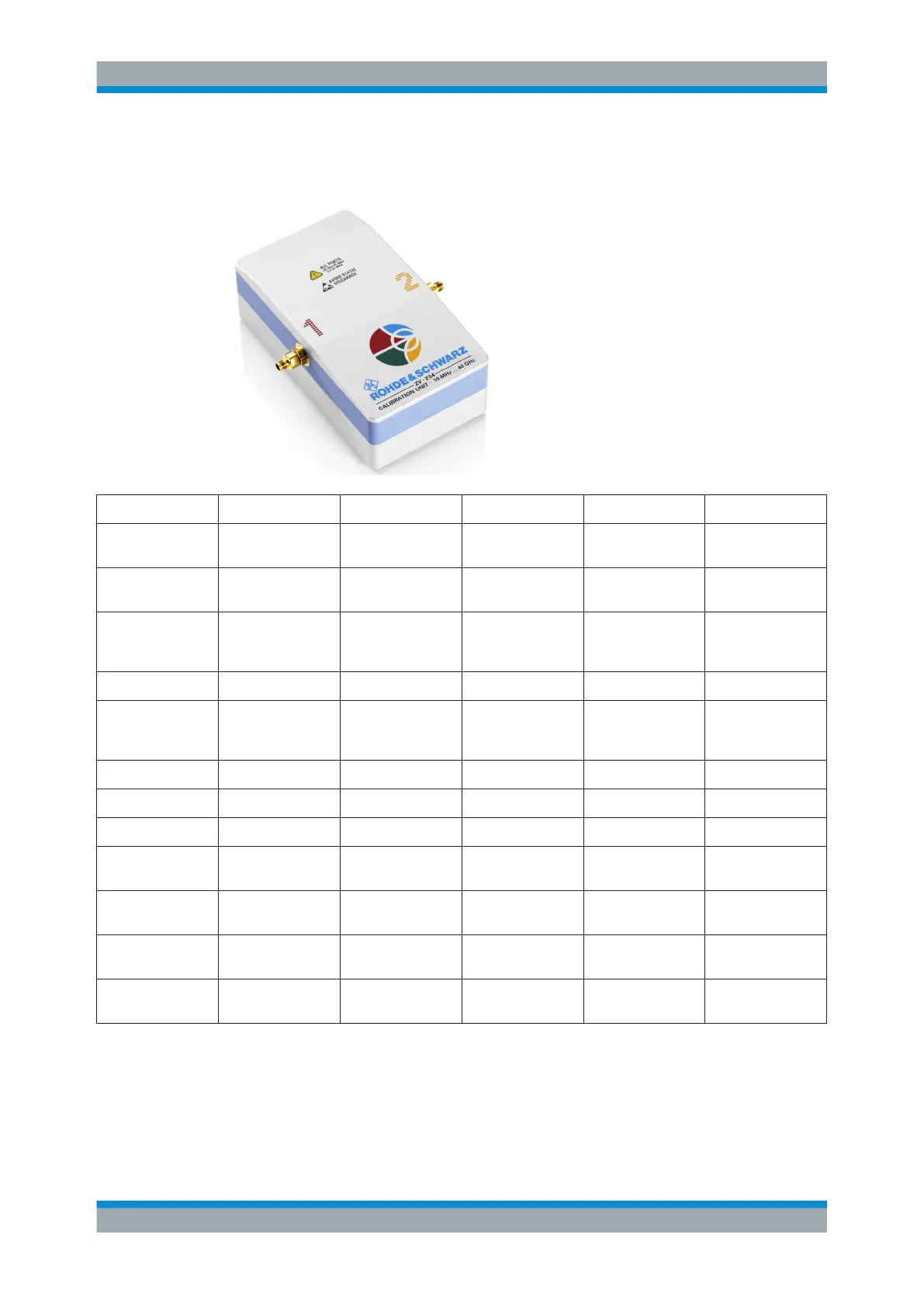

Within their respective frequency ranges, you may also use one of the calibration
units R&S ZN-Z51 (2 or 4 ports) or R&S ZN-Z151 (2 ports)
Calibration unit Recommended for Frequency range Connector type No. of ports Order no.
R&S ZV-Z51 R&S ZVB4, R&S
ZVB8, R&S ZVA8
300 kHz to 8 GHz 3.5 mm (f) 4 1164.0515.30
R&S ZV-Z51 R&S ZVB4, R&S
ZVB8, R&S ZVA8
300 kHz to 8 GHz type N (f) 4 1164.0515.70
R&S ZV-Z52 R&S ZVB14, R&S
ZVB20, R&S
ZVA24
10 MHz to 24 GHz 3.5 mm (f) 4 1164.0521.30
R&S ZV-Z52 R&S ZVB14 100 kHz to 18 GHz type N (f) 4 1164.0521.70
R&S ZV-Z53 R&S ZVB14, R&S
ZVB20, R&S
ZVA24
300 kHz to 24 GHz 3.5 mm (f) 2 1164.0473.32
R&S ZV-Z53 R&S ZVB14 300 kHz to 18 GHz type N (f) 2 1164.0473.72
R&S ZV-Z54 R&S ZVA40 10 MHz to 40 GHz 2.92 mm (f) 2 1164.0467.92
R&S ZV-Z55 R&S ZVA50 10 MHz to 50 GHz 2.4 mm (f) 2 1164.0480.42
R&S ZN-Z51 R&S ZVB4, R&S
ZVB8
100 kHz to 8.5 GHz 3.5 mm (f) 4 1319.5507.34
R&S ZN-Z51 R&S ZVB4, R&S
ZVB8
100 kHz to 8.5 GHz 3.5 mm (f) 2 1319.5507.32
R&S ZN-Z51 R&S ZVB4, R&S
ZVB8
100 kHz to 8.5 GHz type N (f) 4 1319.5507.74
R&S ZN-Z51 R&S ZVB4, R&S
ZVB8
100 kHz to 8.5 GHz type N (f) 2 1319.5507.72
