Rane MLM82S - Front Panel Description

Manual-2

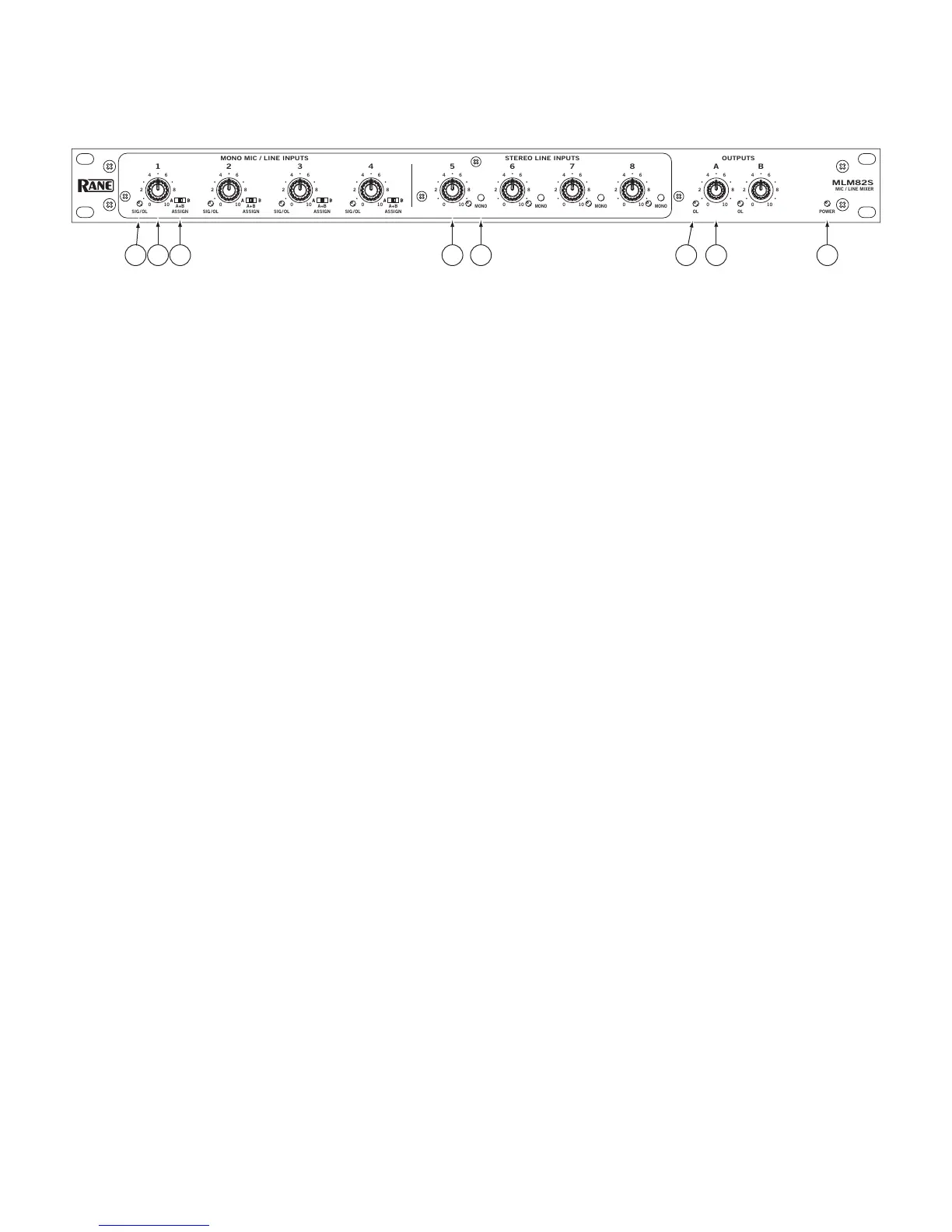

FRONT PANEL DESCRIPTION
1 SIGnal present/OverLoad LED. is bi-color LED lights green for a -30 dBu signal, and turns red when the Input is within 3
dB of clipping.
2 MONO MIC/LINE INPUT LEVEL controls 1-4 determine the MIC/LINE preamp gain and mix level to be assigned to the A,
A+B, B Outputs.
3 ASSIGN switches determine between the A, A+B or B Outputs for each MIC/LINE input.
4 STEREO LINE INPUT LEVEL controls 5-8 determine the amount of stereo or mono line Input routed to the Outputs.
5 MONO switch mixes the A and B sides of each STEREO LINE input together. When active, the associated LED lights, and the A
and B Inputs for that channel have exactly the same level.
6 OUTPUT OverLoad LED illuminates within 3 dB of an approaching overload condition. To avoid this, the associated OUT-
PUT LEVEL control may be decreased, or the problem-causing individual Input Level may be lowered.
7 A and B OUTPUT LEVEL controls set the Output Level for A and B outputs.
8 POWER LED is lit whenever adequate power is applied to the unit.
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
MLM82S
MIC / LINE MIXER
POWER
OUTPUTS
1
MONO MIC / LINE INPUTS
5
STEREO LINE INPUTS
OL
A+B
ASSIGN
MONO
SIG / OL
2
A+B
ASSIGN
SIG / OL
3
A+B
ASSIGN
SIG / OL
4
6
MONO
7
MONO
8
MONO
A
OL
B
A+B
ASSIGN
SIG / OL
LEVELLEVELLEVELLEVELLEVELLEVELLEVELLEVELLEVELLEVEL
2 3 4 51 7 86
