USB Audio
There are seven stereo record channels and ve stereo playback channels. These channels are available on two USB ports,
allowing two computers to share the device. This allows two DJs to play together, and supports uninterrupted transitions
between them. USB audio is 24-bit PCM with a sample rate of 44.1, 48 or 96 kHz. Sample rate and USB slot assignments
are made in the preferences screen in your DJ or DAW software.

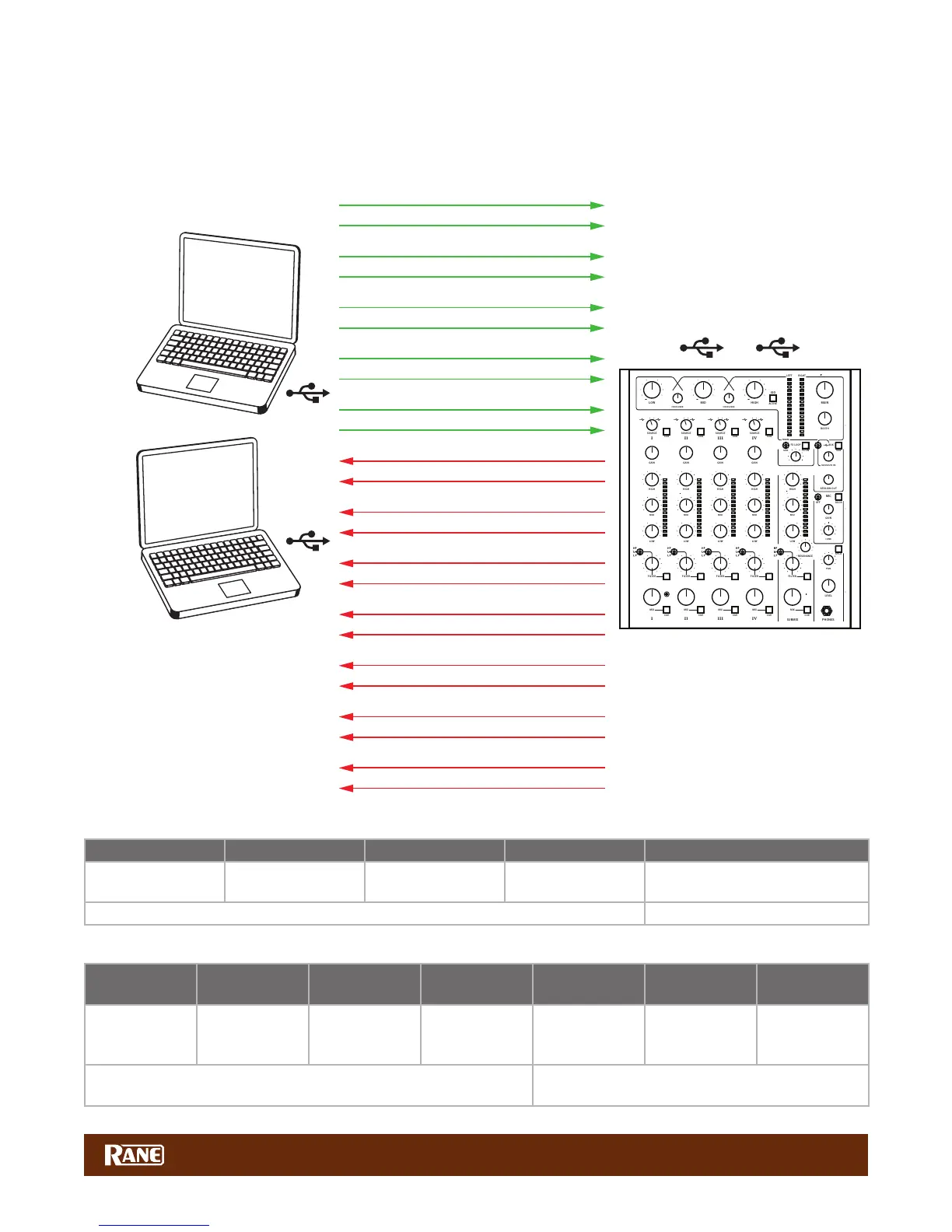

USB Playback Channels Assignment
Deck 1 Playback Deck 2 Playback Deck 3 Playback Deck 4 Playback Session In USB Playback
In USB audio
playback slots 1-2.
In USB audio
playback slots 3-4.
In USB audio
playback slots 5-6.
In USB audio
playback slots 7-8.
In USB audio playback slots
9-10.
Routed from either USB A or USB B depending on the Deck Input source selection. Sum of USB A and USB B.
USB Record Channel Assignment (Broadcast to both USB A and USB B at all times).
Deck 1
Record
Deck 2
Record
Deck 3
Record
Deck 4
Record
Main Mix
Record
Submix
Record
Session In
Record
In USB audio
record slots
1-2.
In USB audio
record slots
3-4.
In USB audio
record slots
5-6.
In USB audio
record slots
7-8.
In USB audio
record slots
9-10.
In USB audio
record slots
11-12.
In USB audio
record slots
13-14.
Select "Phono / CDJ" for DVS. Select "Post" for multi-track
recording (default). See "Control Panel" on page 16.
Main Mix Record
Submix Record
x2 USB Ports
