DST-64T / DST642D Wheel Balancers 6 P/N 5900192 — Rev. F — March 2021
Components
Balancer components include:
• Display Panel. Shows information about, and lets you control, the Balancer.
• Hood. Covers the Wheel while it spins.
• Inner Arm / Distance Ruler. Used to find the distance between the Balancer and the inner
edge of the Wheel being balanced. Not visible in the graphic below.
• Outer Arm. Used to determine the outer edge of the Wheel being balanced. DST-64T only.
• Brake Pedal. Used to hold the Wheel where it is.
• Power Switch. Turns the Balancer on and off.
• Storage Tray. Storage for Clip-On Weights and other items you want to have handy.
• Adhesive Weight Dispensers. Hold your Adhesive Weights.
• Side Storage Rack. Holds items you want to have handy.
• Cone Hangers. Hold the Mounting Cones when not in use.
• Anchor Bolt holes. Provided to anchor the Balancer to the ground.

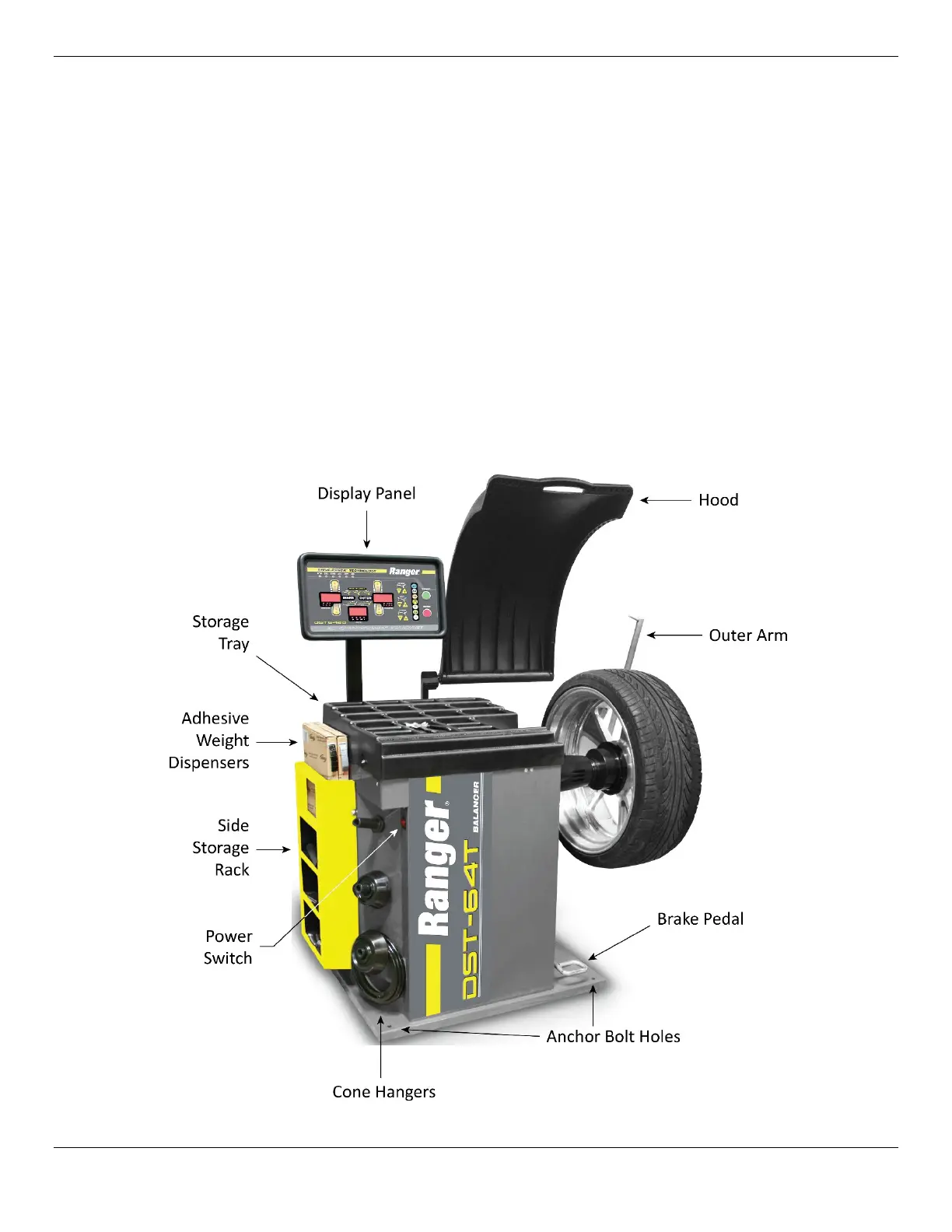

DST-64T shown. DST642D does not have an Outer Arm.
