R76 Series of Tire Changers 34 P/N 5900346 — Rev. C — Dec. 2019
Assist Tower (R76ATR Only)
The Assist Tower holds extra Tools that make it easier to dismount, mount, and inflate Tires.
The two Assist Tower Arms move up and down as one, but move side to side independently.
The components of the Assist Tower are:
• Controls. Moves the two Assist Tower Arms up and down together.
• Bead Roller. Holds down the top Bead during mounting.
• Upper Assist Arm. Holds two Tools and the Controls.
The two Tools are:
– Restraint Cone. Used in two ways. First, when mounting a Tire, use the Restraint Cone to push
the Tire down (helpful when clamping a Wheel externally). Second, when inflating a Tire, use to
hold the Wheel in position on the Turntable.
– Assist Tool. Used to hold down the top Bead during mounting. Travels with the Tire.
• Lower Assist Arm. Holds a single Tool:
– Helper Disc. Used to hold up the bottom Bead during demounting.

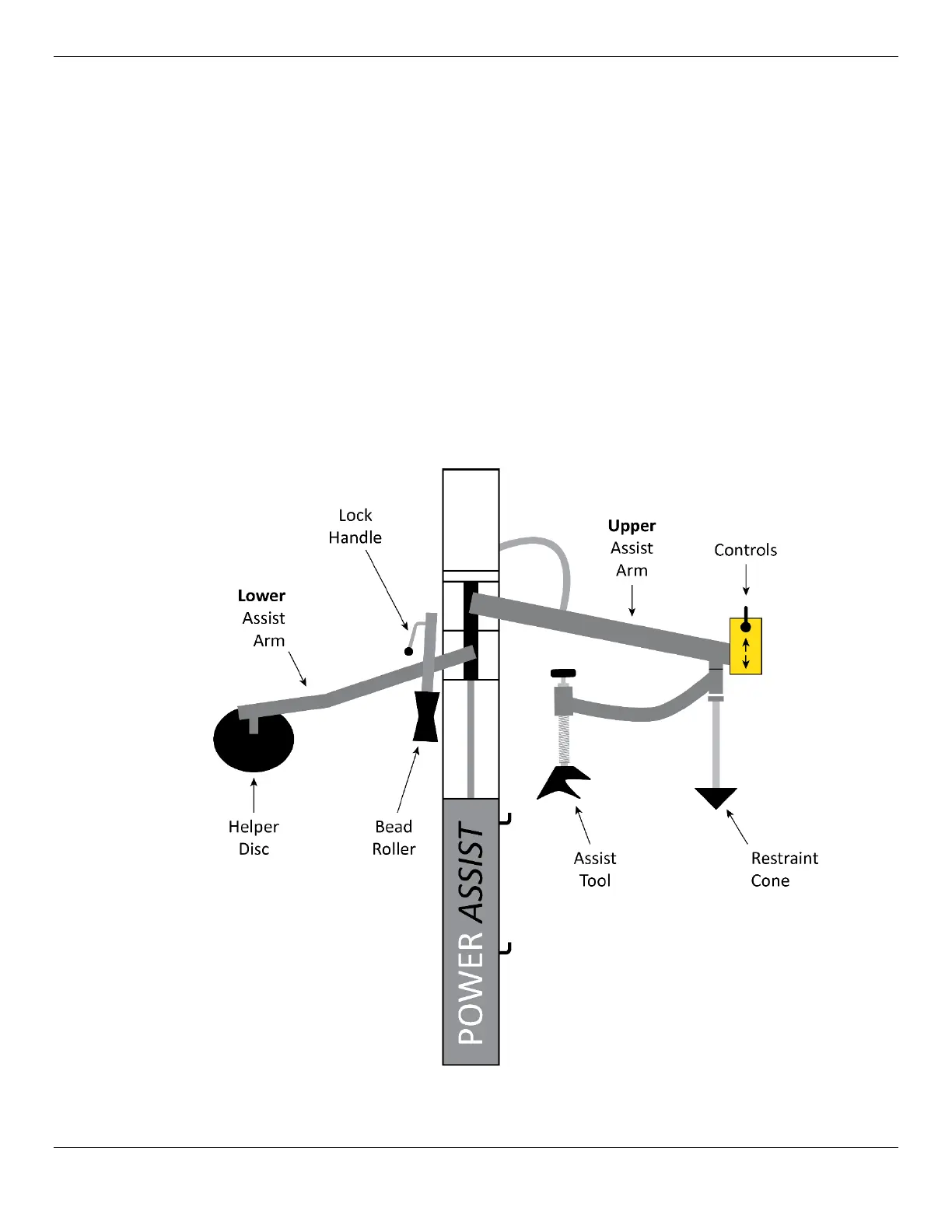

Front view. Not necessarily to scale. Not all components shown.
