R76 Series of Tire Changers 76 P/N 5900346 Rev. C — Dec. 2019

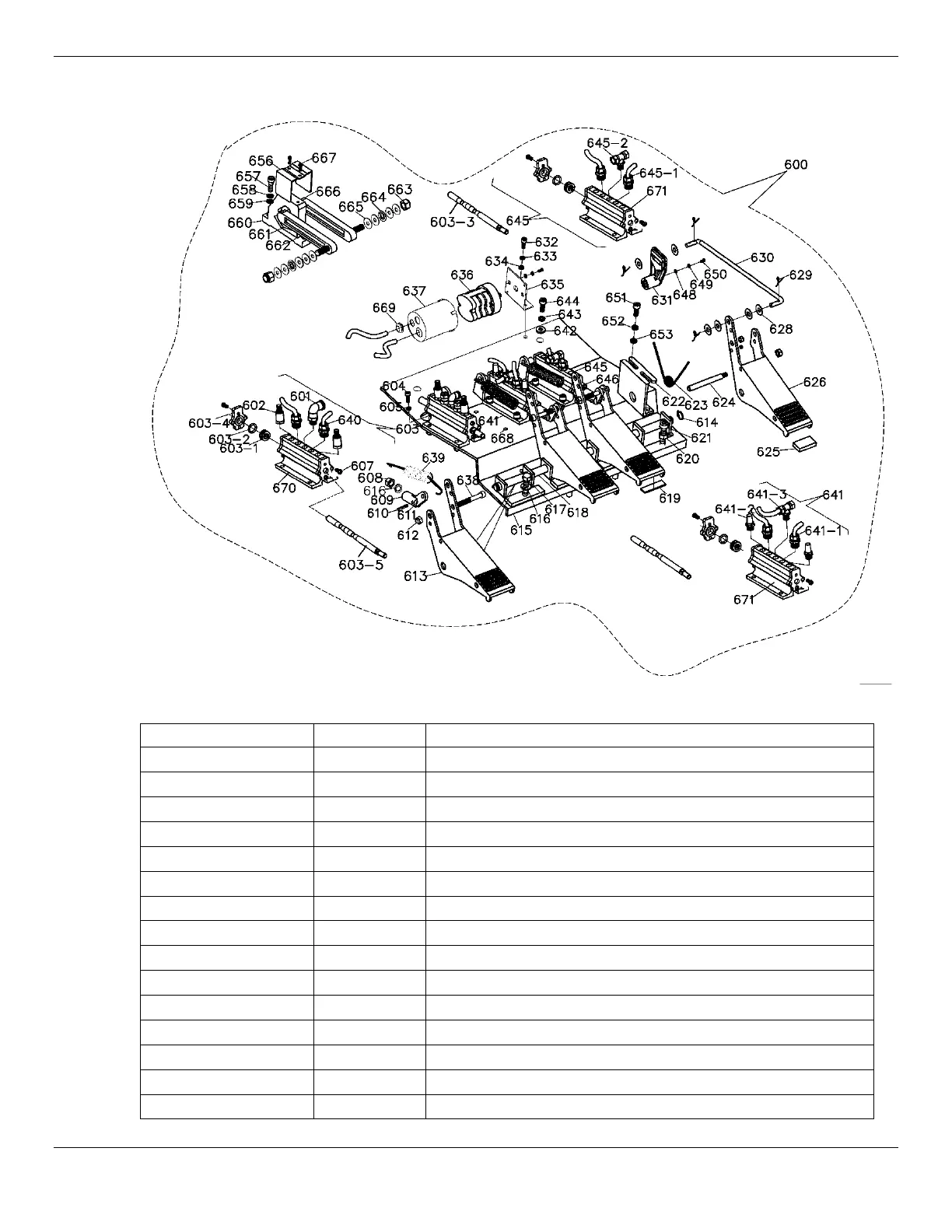

Pedals
BendPak Part # Drawing # Description
5327103 600 Front foot pedal assembly
5400933 601 Fitting, G1/8φ8, 90°
5327545 602 1/8" Adjustable silencer
5327387
603
Tilt back air valve
5327482
603-1
Air valve O-ring spacer
5327536
603-2
O-ring, 17 x 4
603-3
Large cylinder valve stem
5327499
603-4
Air valve end cap
5327531
603-5
Valve stem
604
SHCS, M6 x 12
605
Washer, M6, flat
607
Cross recessed pan head screw, M4 x 10
608 Nut, M8
5327374 609 Foot pedal link
5327554 610 Spring pin, M4 x 18
