24
OPERATION
NOTE: Attaching hardware will need to be procured
locally. Check implement assembly or operators
manual for attaching hardware specifications, such
as bolt size and grade, chain strength, washers, lock
washer, nuts, etc.

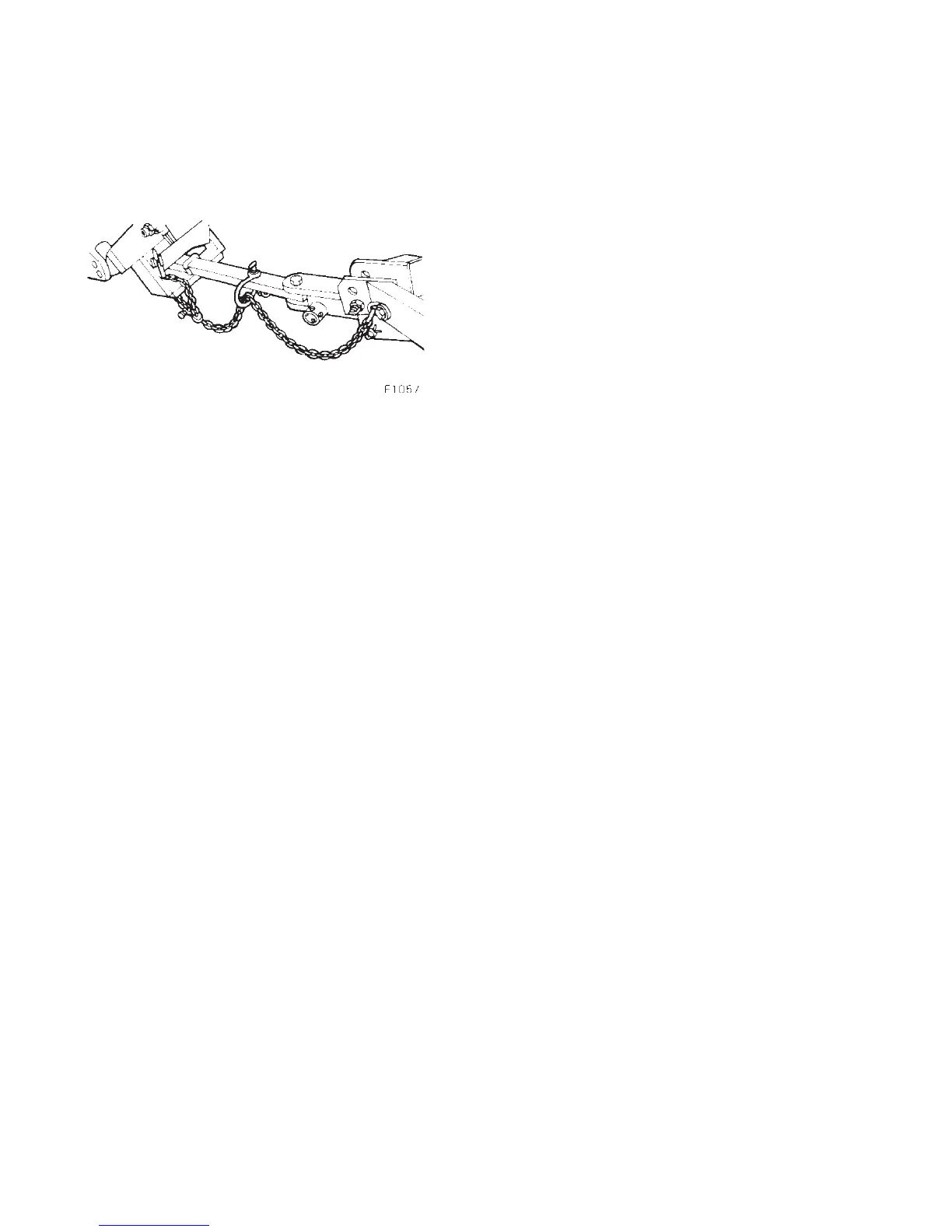

After attaching the safety chain, make a trial run by
driving the tractor to the right and to the left for a
short distance to check the safety chain adjustment.
If necessary, readjust eliminate tight or loose chain.
Safety chains and suitable hardware are available
from your RANSOMES Tractor dealer.
WHEEL TREAD SETTINGS
FRONT WHEEL TREAD SETTINGS
The front wheel tread setting is non-adjustable
and is set at 42.5in. (108cm).
IMPORTANT: Never attempt to widen the tread
setting by reversing front wheels on a four-wheel
drive system.
NOTE: the wheel disc to hub bolts should be
torqued to 49-62 lbs.ft. (66-83 N.m), and the tie rod
setting bolt should be torqued to 31-41 lbs.ft. (42-55
N.m)
