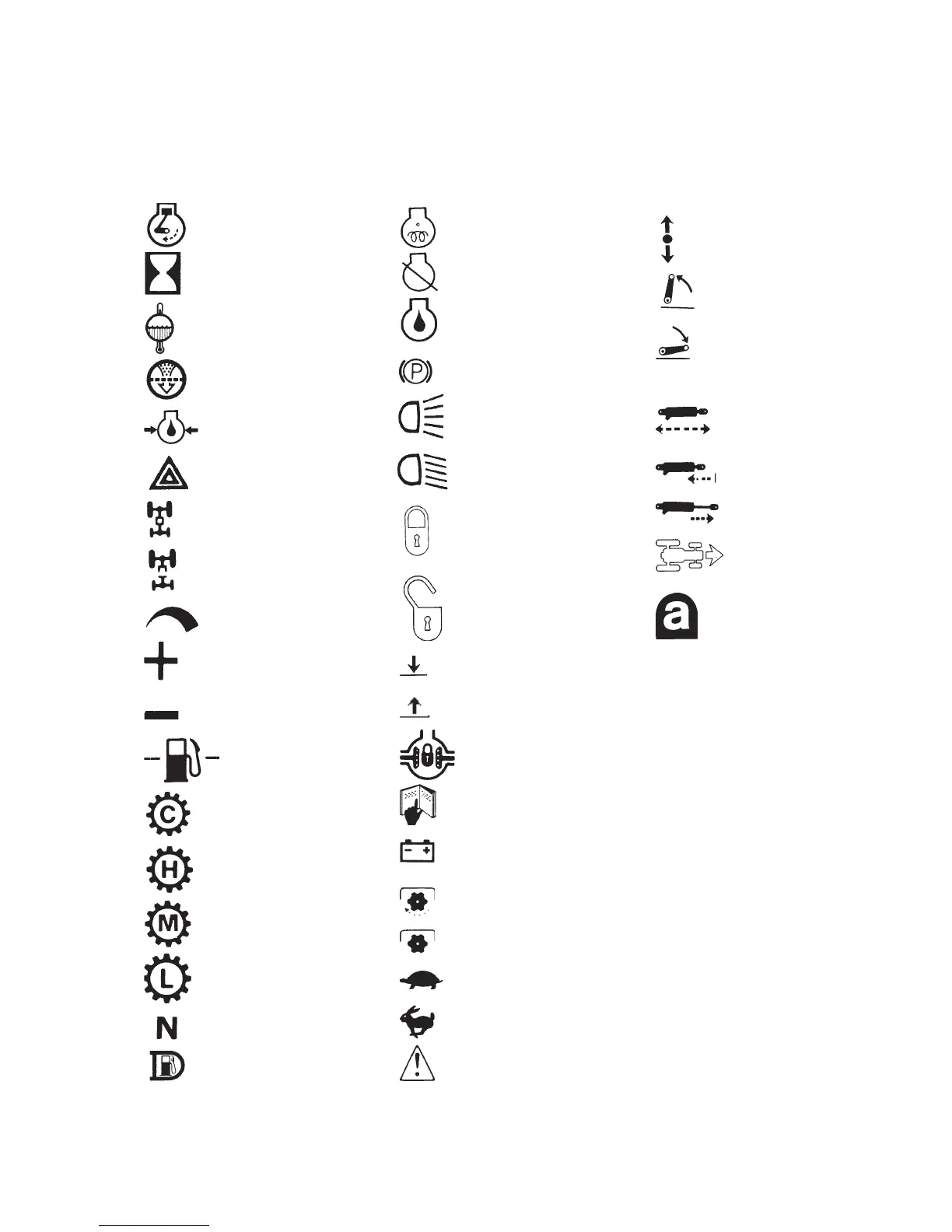

INTERNATIONAL SYMBOLS
As a guide to the operation of your tractor,
various international symbols have been
utilised on the instruments and controls.
The symbols are shown below with an
indication of their meaning.
Engine speed
Hours recorded
Engine water
temperature
Air filter
Engine oil
pressure
Hazard warning
Axle connect
Axle disconnect
Continuously
variable
Increase
Decrease
Fuel level
Creeper range
High range
Middle range
Low range
Neutral
Diesel fuel
Glow
Engine stop
Engine oil
Parking brake
Lights (upper
beam)
Lights (lower
beam)
Lock
Release lock
Up
Down
Differential lock
Read operator’s
manual
Battery
Power take-off
(on)
Power take-off
(off)
“Tortoise,” slow or
minimum setting
“Hare,” fast or
maximum setting
Warning
Control lever
operating
direction
Rock shaft
(raised)
Rock shaft
(lowered)
Remote cylinder
(float)
Remote cylinder
(retracted)
Remote cylinder
(extended)
Forward
Warning!
contains
asbestos
