7
CONTROLS AND INSTRUMENTS
LIGHTING
FLASHER WARNING LAMP
Your RANSOMES tractor is equipped with flasher
warning lights, Figure 3. The switch, Figure 4 for the
warning lights is located on the instrument panel.

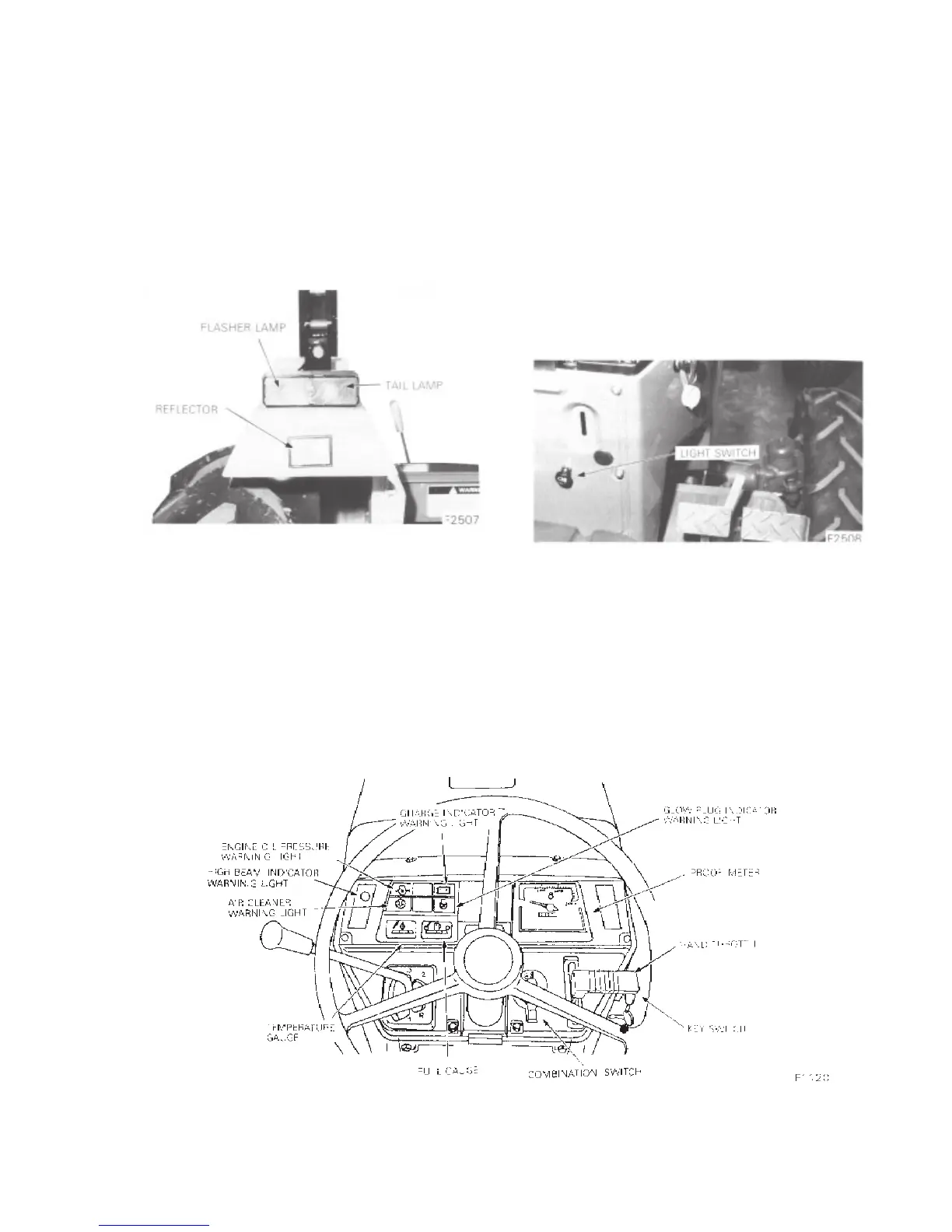

Figure 3 - Flasher Warning and Tail Lamp
The light switch must be turned to one of the “ON”
positions before the flasher will operate. For your
protection, use the safety flasher lights when
travelling on public roads, day or night.
INSTRUMENT PANEL
KEY SWITCH
The key switch is shown in Figure 5. Turning the
‘key to the left will activate the cold-start aid.
LIGHT SWITCH
The light switch, shown in Figure 4, is a pull type
switch. lts positions are
1 st position OFF”
2nd position Tail Lamp “ON”
3rd position Headlights (Low Beam), and Tail Lamp
“ON”
4th position Headlights (High Beam), and Tail Lamp
“ON”
Figure 4 - Light Switch
KEY SWITCH (Continued)
Turning the key to the right to the “on” position will
activate the warning lights and instruments. Turning
mg the key further right to the “start” position will
start the engine. Upon release, the key will spring
return to the “on” position.
Figure 5 - Instrument Panel
