LUBRICATION AND MAINTENANCE
HYDRAULIC SYSTEM OIL FILTER
The hydraulic system is equipped with a spin-on
type oil filter, Figure 50. Replace the filter after the
first 50 hours of operation and every 300 hours
thereafter following the procedure below.

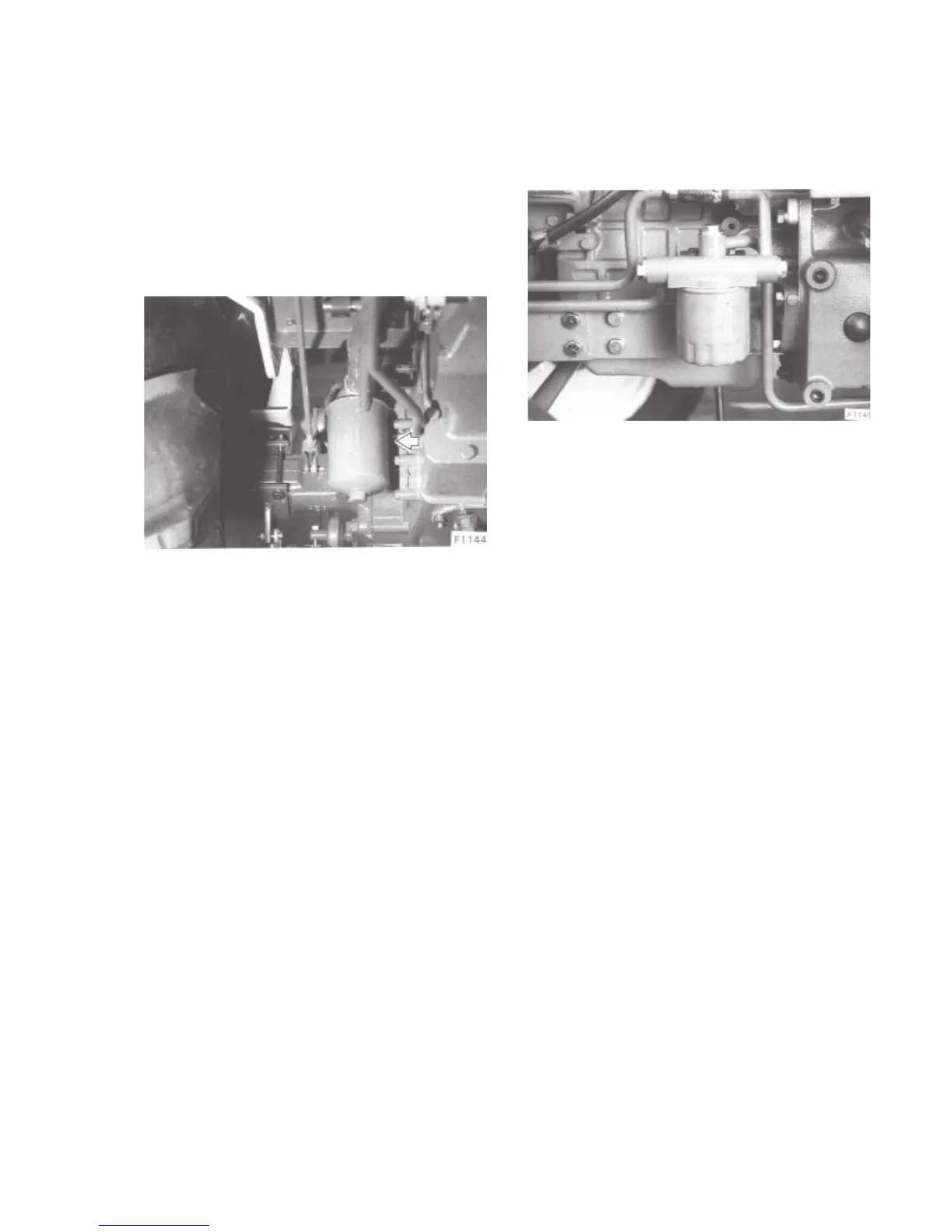

Figure 50 - Hydraulic Oil Filter
1. Unscrew the oil filter and discard.
2. Coat the gasket on the new filter with a film of
oil. Screw the filter into place until the gasket
contacts the sealing surface, then tighten the
filter approximate 3/4 of a turn by hand. Do
not over tighten.
3. Start the engine and check the hydraulic oil
filter for leaks.
4. Stop the engine and check the hydraulic oil
level. Replenish if necessary.
H.S.T.SYSTEM OIL FILTER
The H S I. System is provided with an additional
cartridge oil filter, Figure 51. Change the cartridge
oil filter after the first 50 hours of operation and
every 300 hours thereafter.
Figure 51 - H.S.T. System Oil Filter
LUBRICATION FITTINGS
The following lubrication points (refer to the
Lubrication Chart, page 29 or 30) require the
application of a good quality grease every 50 hours.
In extremely dirty conditions, lubrication should be
more often. Refer to page 33 for the type of grease
that should be used.
• Steering linkage
• Pivot shaft
• Front wheel spindles
• Power steering cylinder
• Pedal shaft; clutch and brake pedals
• 3-point linkage
• Two-wheel drive king pins
• H.S.T. foot pedal shaft (if equipped)
1 . Wipe away all old grease and dirt from the
lubrication fittings to prevent dirt or foreign
material from entering the fittings when new
grease is applied.
2. Use a high pressure grease gun to force in
the new grease until clean grease oozes from
the assembly being lubricated.
3. Wipe away any excess grease.
