Ransomes MP653 - 5.2 CONTROL PANEL FUNCTIONS

en-19
CONTROLS 5

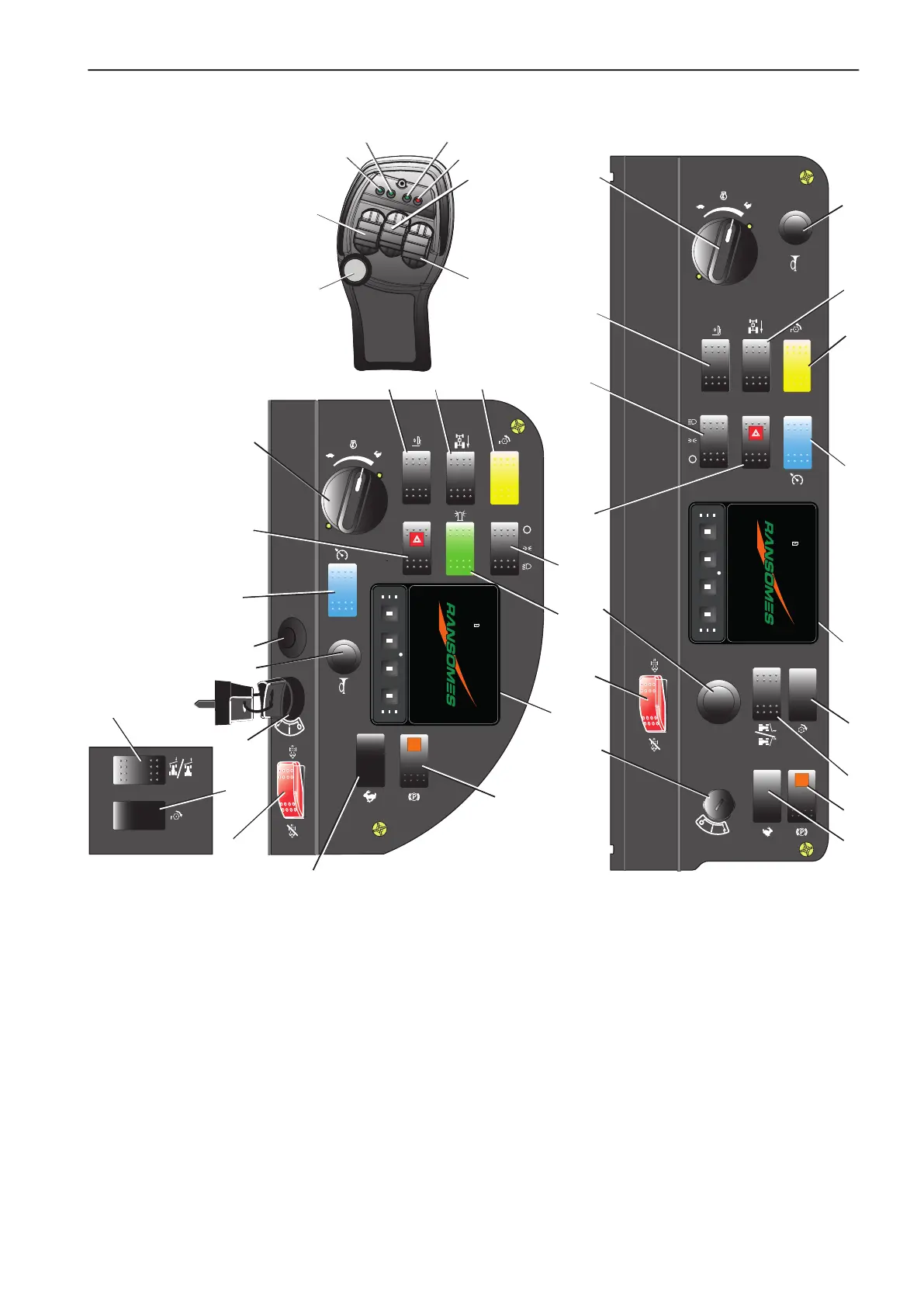

5.2 CONTROL PANEL ______________________________________________________
6
A: Starter Key Switch
B: Throttle Control
C: Park Brake Switch
D: Transport Lock Switch
E: Cutter Switch (PTO)
F: 4WD Reverse Assist
G: Cruise Control Switch
H: Blank
J: DPF Switch
K: Slew Control Switch (Optional)
L: Road Light Switch (Optional)
M: Lamp Hazard Warning Switch (Optional)
N: Beacon Switch (Optional)
P: Right Hand Cutting Unit Lift / Lower Control
Q: Centre Cutting Unit Lift / Lower Control
R: Left Hand Cutting Unit Lift / Lower Control
S: Cutters (PTO) LED Indicator
T: Right Hand Cutting Unit LED Indicator
W: Centre Cutting Unit LED Indicator
X: Left Hand Cutting Unit LED Indicator
Y: Traction Boost / Weight Transfer Switch
Z: Visual Display
W
X
R
Y
P
T
S
Q
A
E
M
B
K
C
Z
5 .6
5.5
L
12V
10A
F
D
G
J
H
12V12V
E
N
B
FD
C
Z
K
6.6
6.5
12V
10A
L
J
M
G
A
H
H
H
Cabin PanelROPS Panel
2.5 Hours
®
2.5 Hours
®
