Ransomes MP653 - 7.5 STEERING SYSTEM ADJUSTMENT

en-68
7 ADJUSTMENTS

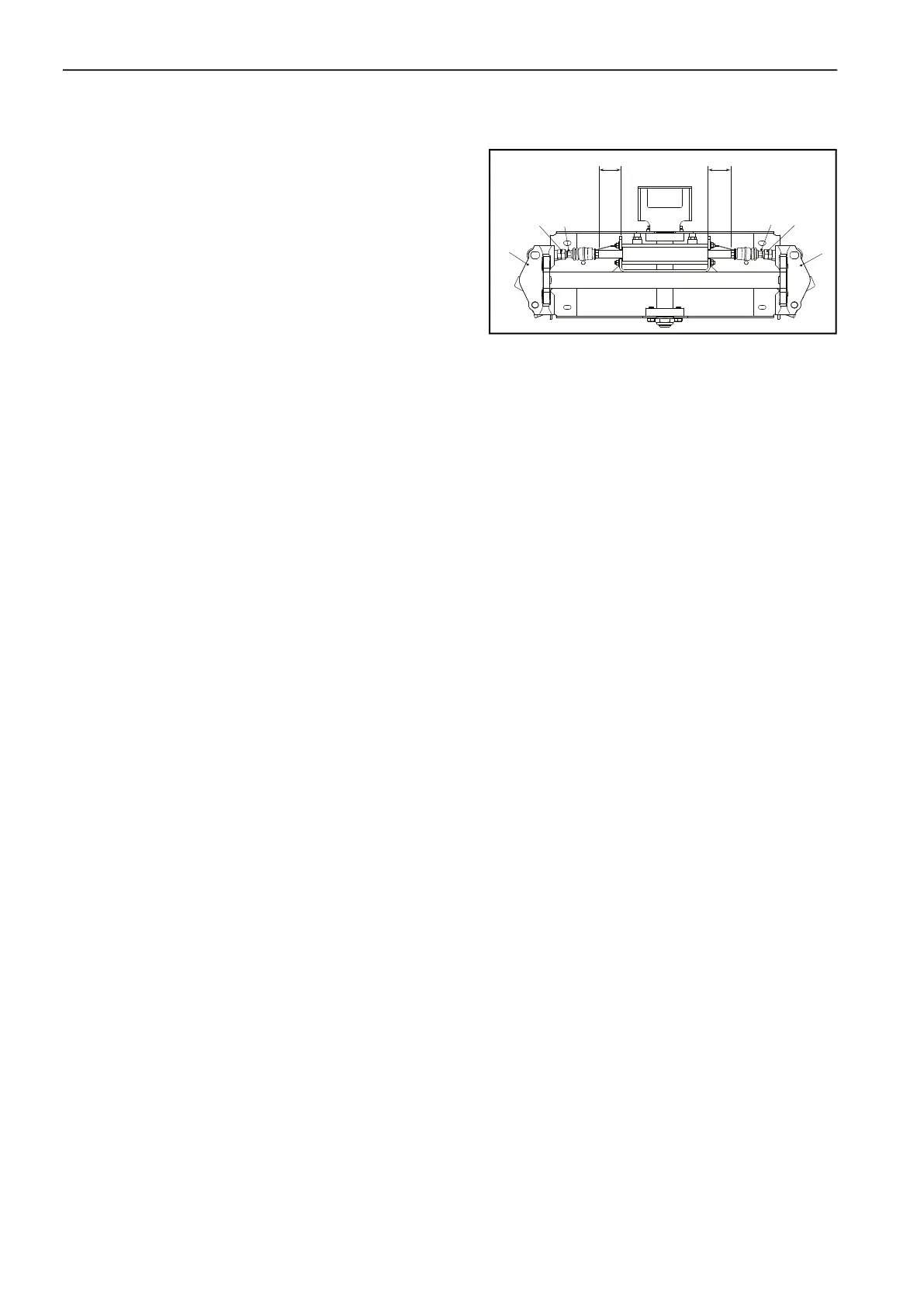

7.5 STEERING SHAFT ADJUSTMENT ______________________________________
The rear motor mounts (A and B) must be parallel to each
other and the machine.
The steering ram shaft must be equal (C and D) on both sides
of the steering ram.
1. Apply Loctite 243 to nut (E) and steering link (F).
2. Assemble rod end to steering link on both side of
axle.
3. Check motor mounts are parallel and ram shaft is
equal on both sides.
4. Torque the nuts (E) to 100Nm (74 lbf-ft).
AB
D
C
E
F
E
F
