CONTROLS 5
Cutting Units

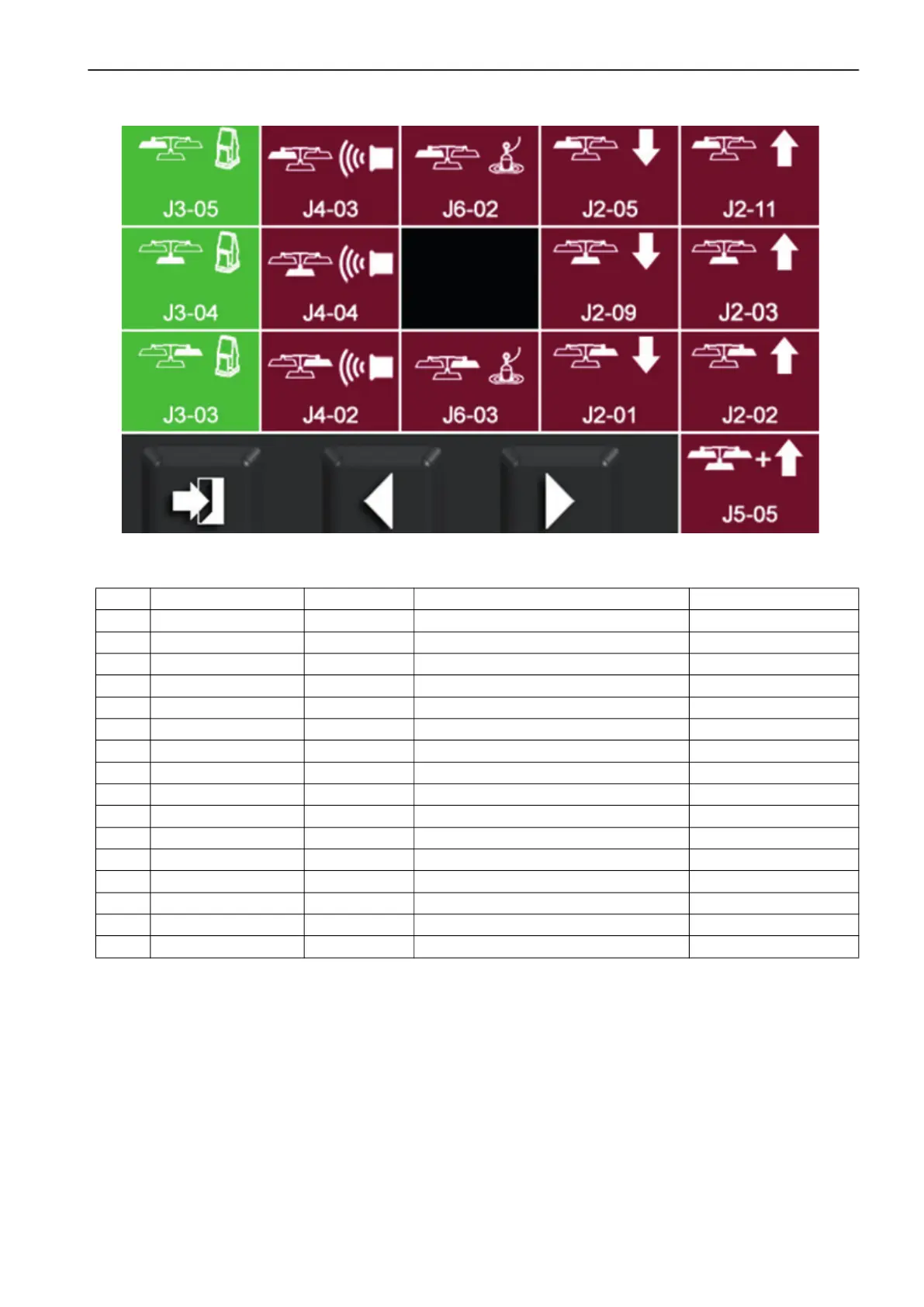

Ref # Module Pin Number Function
1 Main Controller J3-05 Left Hand Joystick Input
2 Main Controller J4-03 Left Hand Position Sensor Input
3 Main Controller J6-02 Left Hand Float Solenoid Output
4 Main Controller J2-05 Left Hand Lower Solenoid Output
5 Main Controller J2-11 Left Hand Raise Solenoid Output
6 Main Controller J3-04 Centre/Front Joystick Input
7 Main Controller J4-04 Centre/Front Position Sensor Input
8 - - -
9 Main Controller J2-09 Centre/Front Lower Solenoid Output
10 Main Controller J2-03 Centre/Front Raise Solenoid Output
11 Main Controller J3-03 Right Hand Joystick Input
12 Main Controller J4-02 Right Hand Position Sensor Input
13 Main Controller J6-03 Right Hand Float Solenoid Output
14 Main Controller J2-01 Right Hand Lower Solenoid Output
15 Main Controller J2-02 Right Hand Raise Solenoid Output
16 Main Controller J5-05 Raise Enable Solenoid Output
