2. PRODUCT CHARACTERISTICS
> rated voltage: 230V~ / 50Hz
> refrigerant: HC-290; ODP = 0, GWP = 3
> working temperature: +1°C ÷ +10°C
> sound pressure level: <70dB (A)
Model
Catalogue
length/depth
[cm]
Depth with
open door
[cm]
Length of the
exposition
total/usable
[cm]
Depth of the
exposition
usable
[cm]
Length of the
storage
total/usable
[cm]
Depth of
the
storage
total/usable
[cm]
Capacity of
the exposition
usable
[l]
Capacity of
the storage
usable
[l]
Power
of
LED
lamp
[W]
Power of
LED
backlight
[W/m]
E/E1/F
202/107 183 194/190 65,5 183/179 91/80 180 270 26 4,8
180/107 183 171/167 65,5 160,5/156,5 91/80 158 236 26 4,8
153/107 164 144/140 65,5 133,5/129,5 91/80 133 195 22
4,8
138/107 164 129/125 65,5 118,5/114,5 91/80 119 173 17
4,8
123/107 159 114/110 65,5 103,5/99,5 91/80 104 150 17
4,8
80/107 173 71/67 65,5 61/57 91/80 64 86 11
4,8
E Max
E1 Max
F Max
202/107 183 194/190 65,5
77/73
1)
100/96
2)
91/80
1)
69/60
2)
180
110
1)
287
2)
26 4,8
F-NW -/107 169,5 149/145
4)
50 164/160
4)
69/60
4)
72 104 11 4,8
F-NZ -/107 93,5
3)
193/189
4)
53,5 - - 119 - 17 4,8

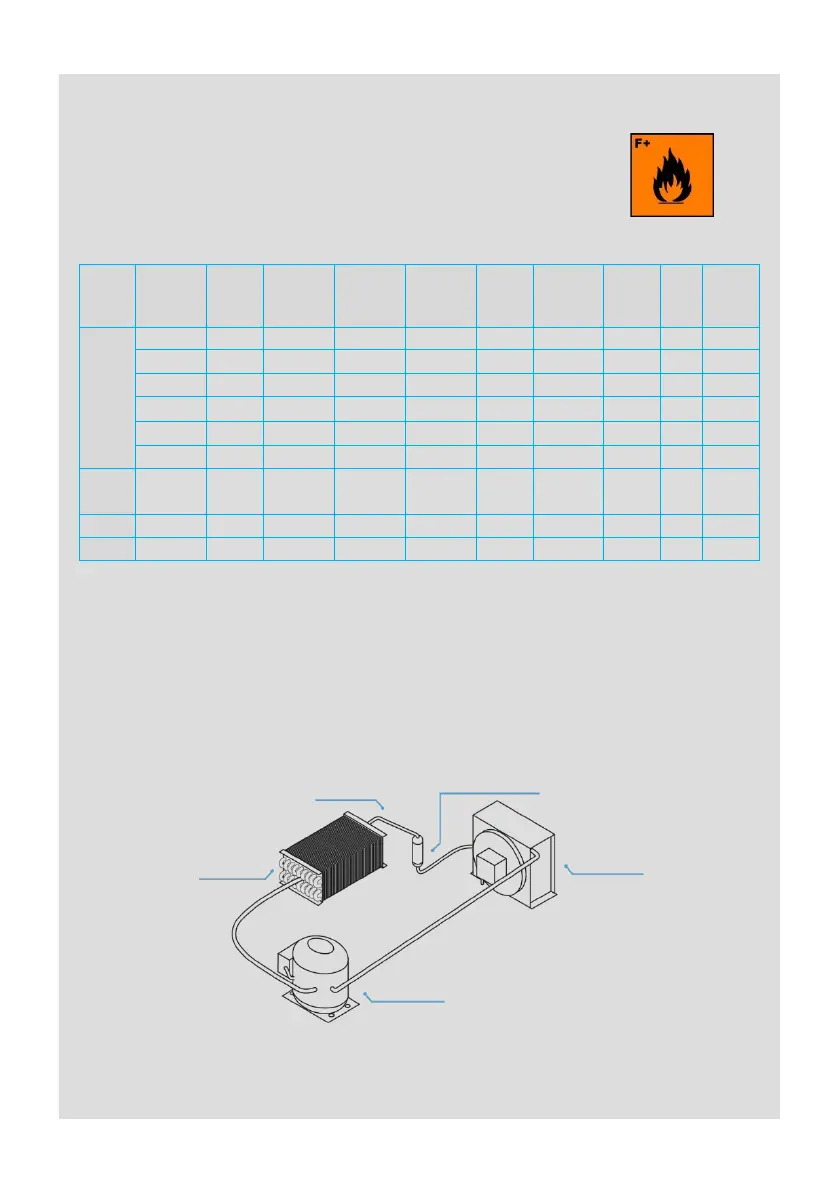

3. COOLING SYSTEM DIAGRAM
capillary
chemical filter
condenser
compressor
evaporator
Exposition loading limit: 1) – applicable to small storage in E Max / E1 Max / F Max
at front glass pane side – 10 cm 2) – applicable to enlarged storage in E Max / E1 Max / F Max
at evaporator side – 20 cm 3) – no storage (refrigerated counter without door)
4) – sloping storage (given dimension is maximum dimension)
Height of the low storage – 20,5 cm, enlarged storage in E Max / E1 Max / F Max – 48 cm
Usable height of the low storage – 18 cm, enlarged storage in E Max / E1 Max / F Max – 42 cm
