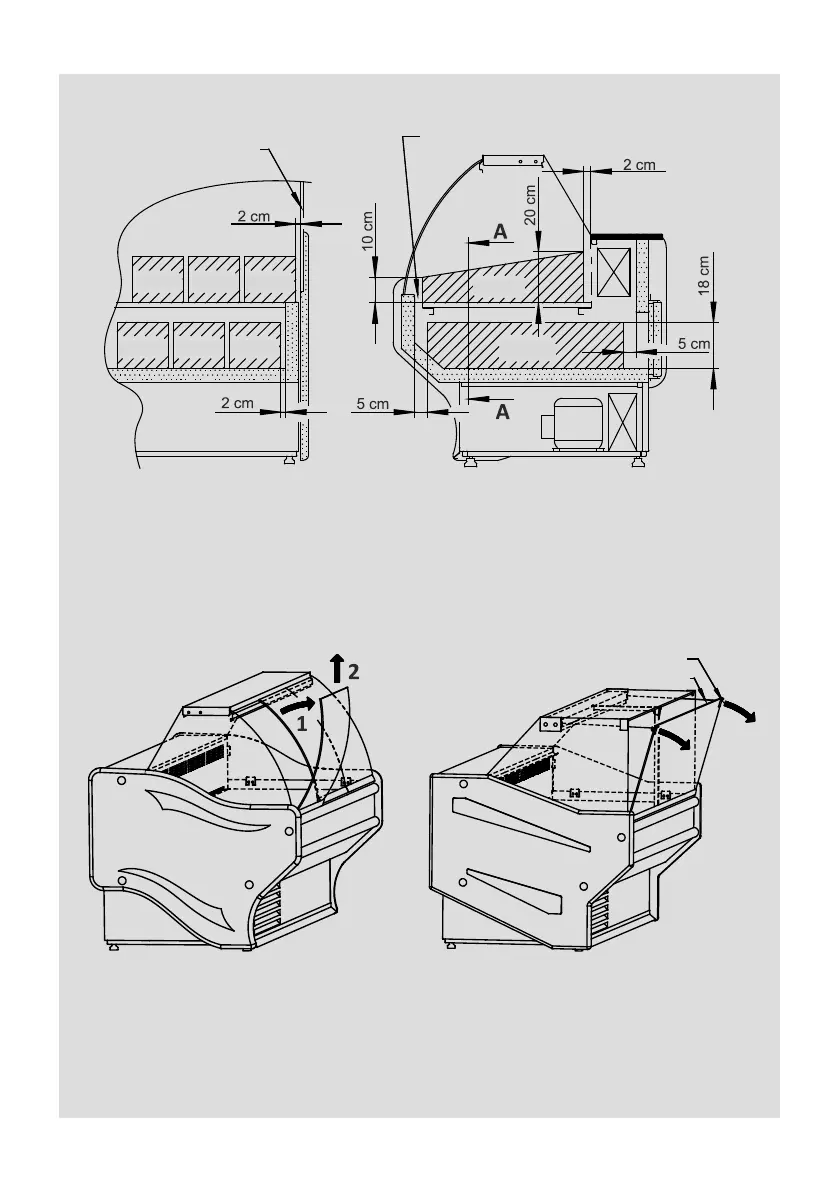

Fig. 4.

Fig. 4 Layout of products along the length of the exposition and storage.

It is necessary to keep the distance between the front glass pane and side of the storage.

Fig. 5 Layout of products in L-E, L-E1 counters and in small storage of L-E Max, L-E1 Max i L-F Max

counters.

Fig. 5

Fig. 6 L-E, L-E Max, L-E1, L-E1 Max – stand in front

of the glass pane and slightly open it (ca. 10°),

than hold it with both hands and lift carefully up.

Warning! In L-E, L-E Max refrigerated counters it

not allowed to leave glass pane in extremely open

position (this may damage the hinge).

Fig. 7 L-F, L-F Max, L-F/NW, L-F/NZ – in order

to wash the front glass pane, it should be

gently opened using handle.

Side glass pane

Do not block the air outlet with products.

products
