DEVICE PLACEMENT AND SETUP

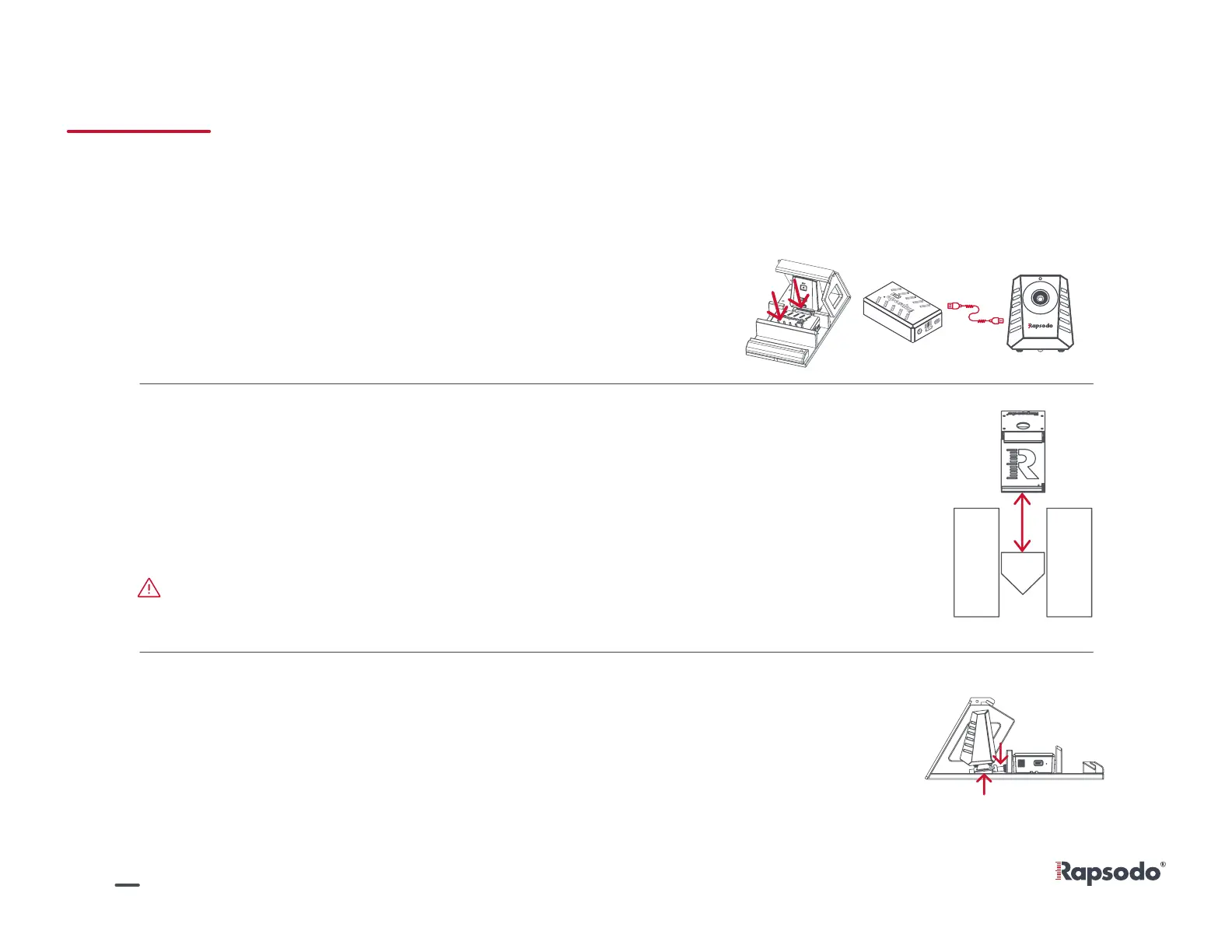

1.
Internal Tank Set-Up
1.1. Attach monitor to mount plate.
1.2. Place RCE in housing.
1.3. Connect USB from monitor to RCE.
3.
Calibration
3.1. Align monitor angles with help of the application.
3.2. Use azimuth view and tape measure to position the tank directly
in the center of the pitching lane.
NOTE: Rapsodo PITCHING 2.0 operates in a tank. Correct positioning is important to get accurate results.
2.
Tank Positioning
2.1. Rapsodo PITCHING 2.0 should be placed 15’6” from the front of
home plate and the camera opening should face the pitcher.
2.2. The tank should be placed on an even surface and SHOULD NOT be
used in the rain or wet conditions.
Rapsodo PITCHING 2.0 should only be used at the designated distance
and on a flat surface. Improper placement may cause injury.
15’6”
