4
INSTALLATION

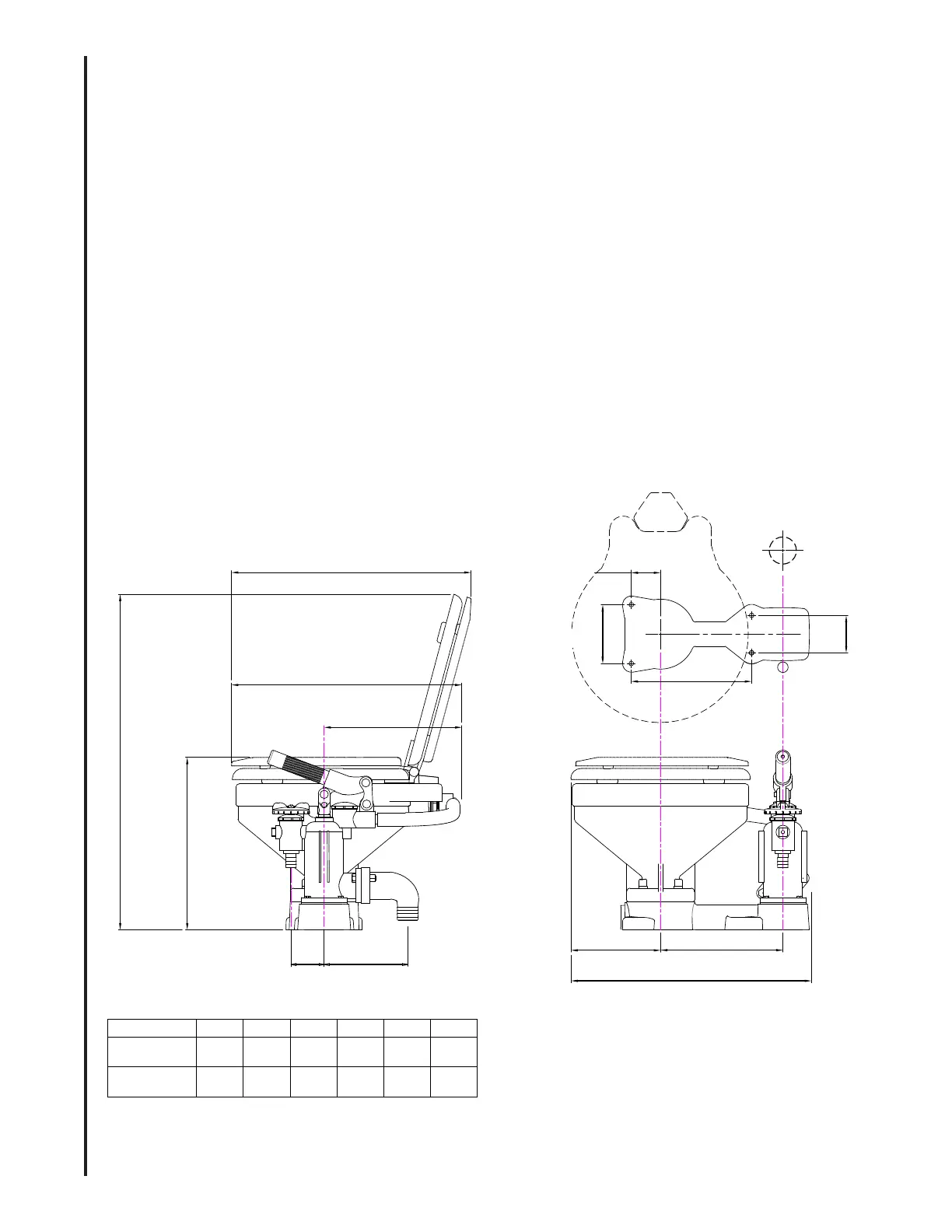

Raritan PH SuperFlush Marine Toilet Front View, Side View and Footprint
Tools Required
• 5/16" nut driver
• Wrench or screw driver
• Bit for drilling mounting surface
• Hose cutters
• Tape measure
Additional Parts Required
• Four stainless steel mounting bolts or lag screws
(minimum 1/4" [6mm]) and washers
• 1 1/2" I.D. discharge hose
• 3/4" I.D. reinforced intake hose
• Hose clamps (two for each connection below
waterline)
MOUNTING TOILET
Mounting surface must be at and solid.
1. Install seat on toilet.
2. Place toilet where it will be located.
Make sure there is room to route hoses.
Make sure seat will open properly.
3. Mark location of toilet base mounting holes on
mounting surface.
4. Drill holes for toilet mounting bolts/screws.
5. Secure toilet to surface.
2.76
[70]
8.86
[225]
4.33
[110]
2.16
[55]
E
9
(229)
F
6 3/16
[156]
A
B
C
D
SEE NOTE 1
INCHES
(MM)
11 1/2
(292)
10 3/8
(264)
BOWL TYPE
MARINE
BA
13 1/8
(334)
13
(330)
24 3/4
(629)
18 1/4
(464)
17 3/4
(451)
D
C
20
(508)
17 1/4
(438)
FE
7
(179)
6 1/2
(165)
HOUSEHOLD
NOTE:
1. THE SEAT WILL OPEN WITHIN THE DEPTH OF THE BOWL (D),
HOWEVER, IT MAY BE DESIRABLE TO INCREASE THIS ANGLE
BY ALLOWING MORE ROOM AT THE BACK OF THE BOWL FOR
THE SEAT TO OPEN.
2. MARINE STYLE BOWL, D DIMENSION IS 17 3/8 [442MM]
WITH HANDLE EXTENDED.
27 7/8
(708)
2 7/16
[62]
(SEE NOTE 2)
3. DIMENSIONS ARE FOR REFERENCE AS VITREOUS CHINA
DIMENSIONS MAY VARY +/- 5%.
L563 0316kgs
