Rascal R600 Scooter Owner’s Manual
EMC Part: 19271200 • Rev. 03 • 06/01/2003
25
Removing Batteries
1. Remove top cover and unwrap the battery tie down strap.
2. Unplug the connectors attached to each battery and lift each battery up and out of the vehicle.
Re-Assembly Notes: Make sure that the Velcro straps are securely and completely fastened. It is
normal for the batteries to spark when re-assembled. This does not cause any damage to the batteries.
Removing the Footrest Plate (600C Only)
Use the following to remove the Footrest Plate on the 600C Models (except those with optional
wheelchair type legrests).
1. Pull Cotter Pin out of Clevis Pin.
2. Hold Footrest Plate up and pull Clevis Pin out.
3. Slide Footrest Plate off Footrest Plate Tube (be careful, footrest weighs approximately 14 lb.).
Quick Disconnect Drive Train (QDDT) Removal

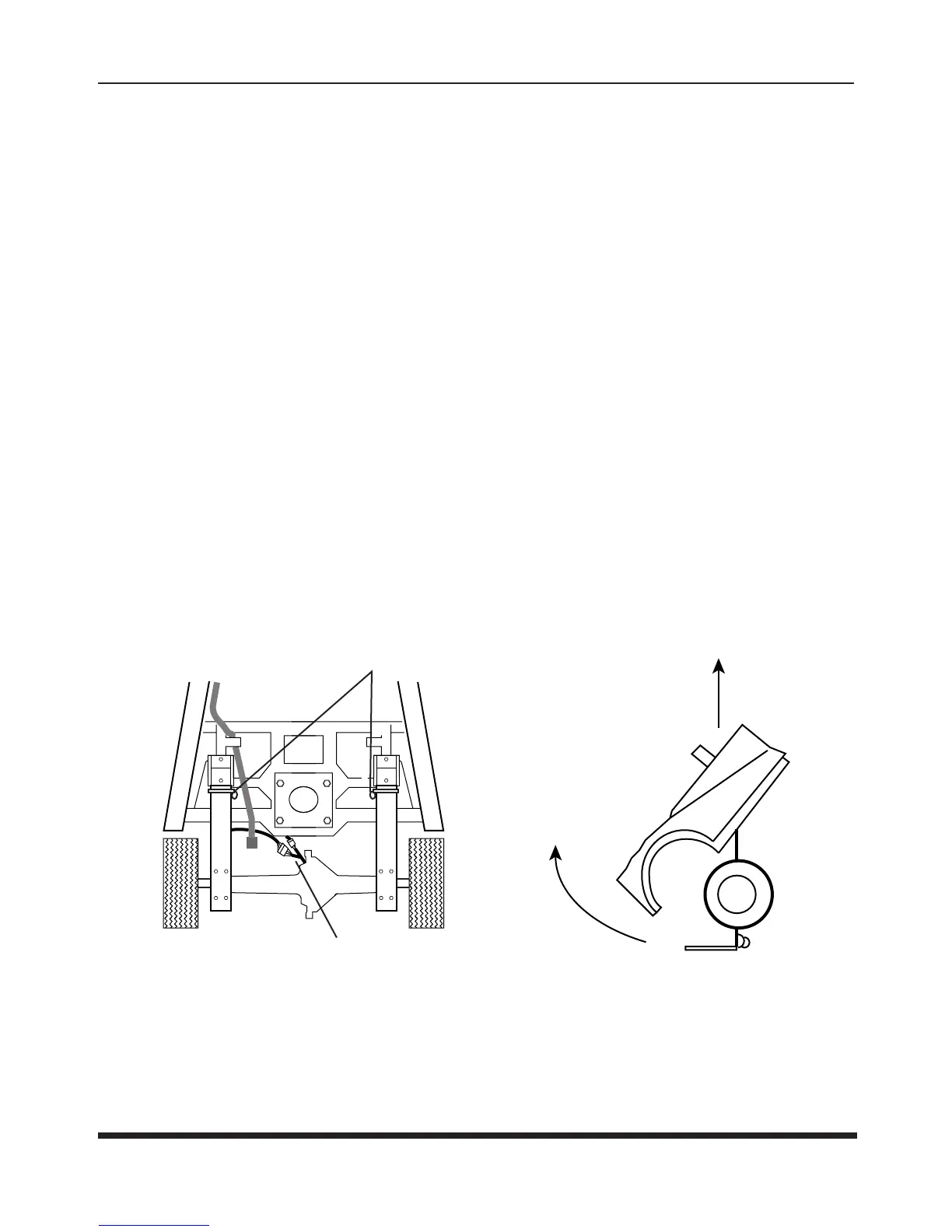

You can remove the drivetrain assembly according to the following. Drivetrain removal is shown in
Illustration 16.
QUICK-DISCONNECT
PINS
DRIVETRAIN
POWER
HARNESS
ROTATE OUT
LIFT STRAIGHT UP
19271200/16
Illustration 16 — Drivetrain Removal
