Rational UltraVent - Page 4

UV-USA SCC_WE, CM_P V04, 02/2013
4

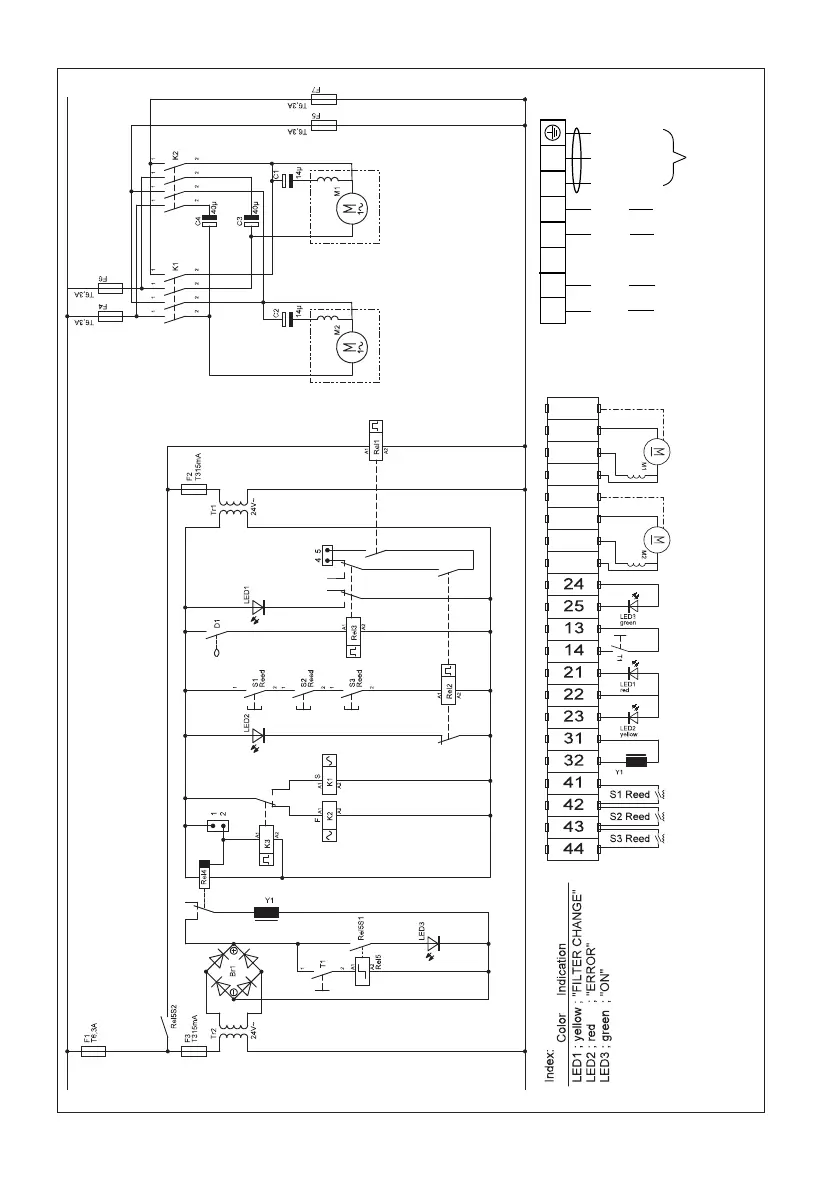

Attention
12VDC between terminal 4 and 5
1 2 4 5 L N
green
white
black/brown
white
brown
white
green
to X23 connector
A8 Door switch X27
use supplied
power cable
M1 gn/ye
M1 blue
M1 brown
M1 black
M2 gn/ye
M2 blue
M2 brown
M2 black
A
ref. page 5
