UV-USA SCC_WE, CM_P V04, 02/2013
6
Dear customer,
Please read this installation manual carefully before
installing the hood.
Attention:
- Ultravent can be used for SCC as well as-for
CM units 61/101/62
- Ultravent is equipped with a differential pres-
sure switch. This switch cuts out the function
of the Combi steamer, if the air flow through
the charcoal filters is reduced to
approx. 75 % (charcoal filter are soiled)
The differential pressure switch has to be set
during installation (see page 11).

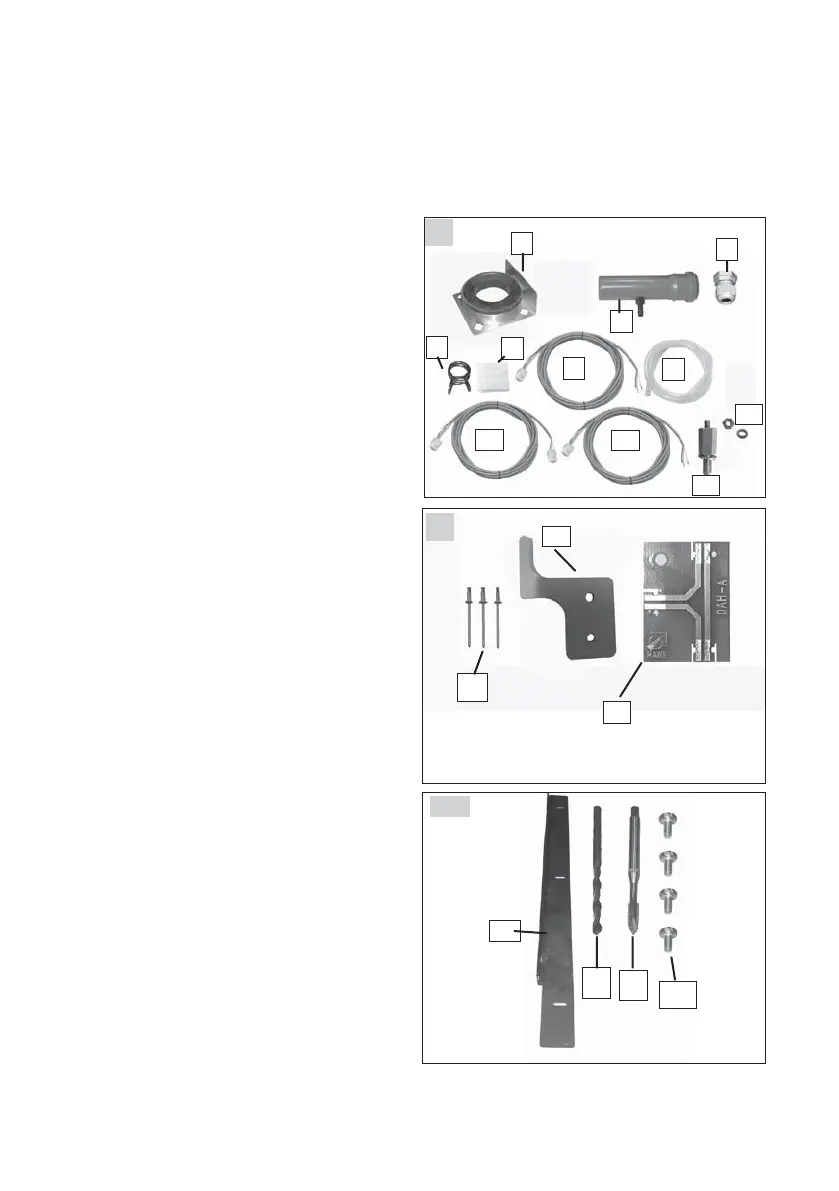

The following accessories are included in the
Ultravent set (see picture 1 and 2):
Item Description Qty.:
1 Gasket adapter vent pipe 1
2 Cable gland 2
3 Connection cable to terminal X23 (W26) 1
4 Self adhesive cable clip 5
5 Drain pipe 1
6 Silicon hose apprx. 5 ft
7 Hose clip 2
8 Connection cable 1
Interface pcb A8 to cpu pcb X27 (W23)
9 Connection cable 1
Interface pcb A8 to Ultravent 4/5 (W24)
10 Stud 1
11 Nut 1
12 Lock plate 1
13 Rivet 3
14 Interface pcb A8 1
Additional parts only 6x2/1 GN unit (pic. 2a)
15 Deflector 1
16 Bit 1
17 Tap die 1
18 Screws 4
- Rubber air deflector
Installation Manual
1. Delivery
Carefully unpack the unit on delivery and check
to ensure that no damage has been caused in
transit (follow the instructions on the packag-
ing). Take all packed parts out of Ultravent and
unpack them.
2
12
1
1
2
3
7
4
6
5
8
9
14
13
15
16
17
18
2a
10
11
