INSTRUCTION MANUAL
RAV TD8060TWS - RAV TD8060TWSR
RAV TD8080TWS - RAV TD8080TWSR
Code M0230 - rev.1.1
(01/2014)
RAVAGLIOLI S.p.A.
Page 10/64
RAVAGLIOLI S.p.A. – 40044 Pontecchio Marconi (BO) Via I Maggio, 3
Tel. (+39) 051/ 67.81.511 – Fax (+39) 051/ 84.64.67
e-mail: rav@ravaglioli.com /http www.ravaglioli.com

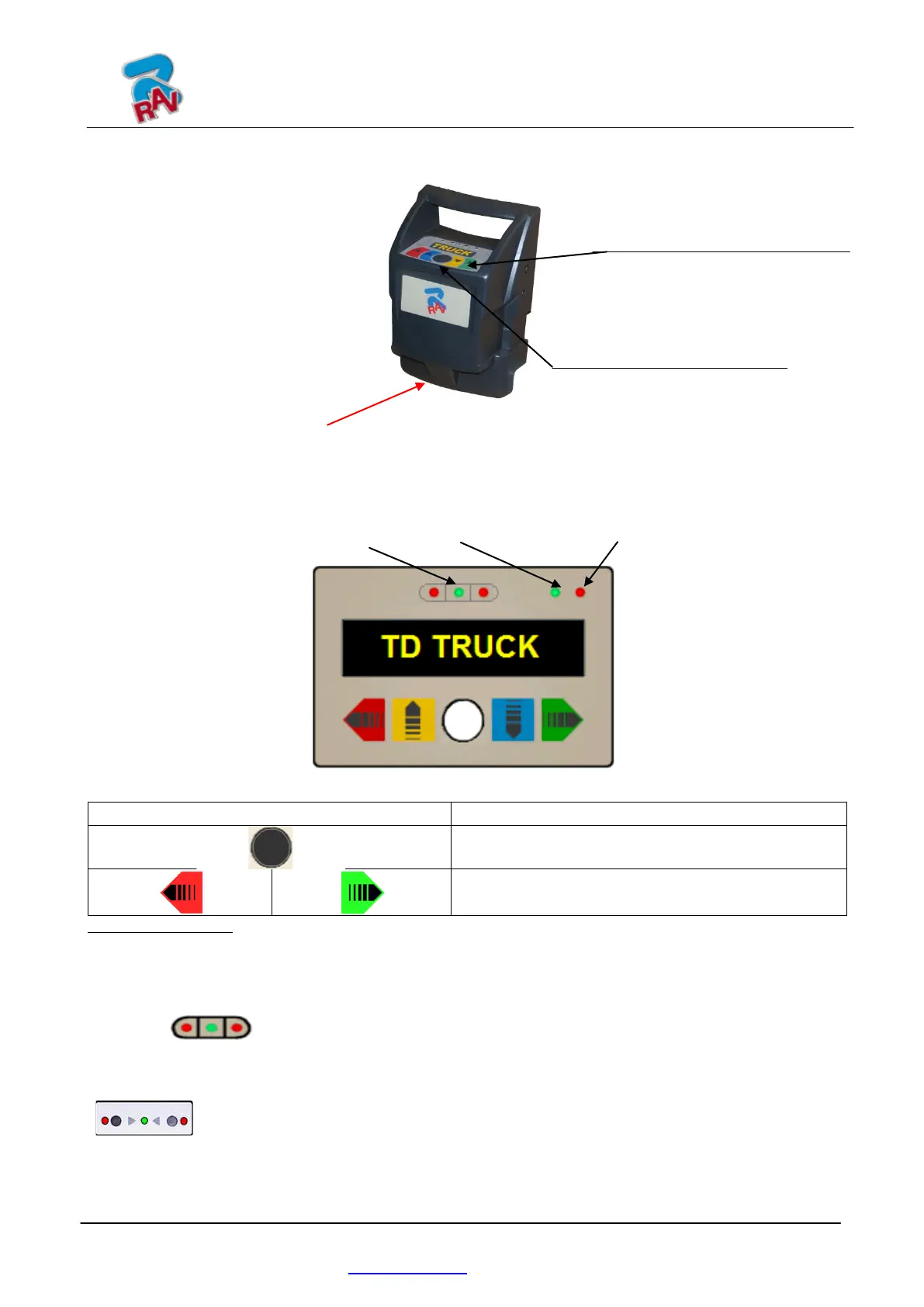

3.7.3 Rear sensor RAV TD 8060TWS and RAV TD 8060TWSR
Figure 4
3.7.4 Sensor keyboard
(C) Level (A) Green LED (B) Red LED
Figure 5
KEY
DESCRIPTION
Sensor switch-on key
When pressed together, they manually switch
off the sensor
Legend of Figure 5:
A -
• Green LED on:
For front sensors

the sensor battery is under charge
B -
• Red LED on steady:
sensor on
• Red LED flashing:
sensor down (when remaining battery charge is below or
same as 30%); switches off after a few minutes
C-
•
Level indicator consisting of 3 indicator LEDs
(except rear heads TD8060TWS/TWSR)
Tolerance indicator during adjustment
• GREEN LED flashing

the measurement is within tolerance, exactly at centre
• RED LED flashing together with GREEN on steady 
the measurement is
within tolerance
• RED LED on  the measurement is NOT within tolerance
During adjustment, to see the tolerance on the LEDs, the red selection frame must be moved
to the value being adjusted (see para. 8.11 on page 32).
SENSOR KEYBOARD
(see para. 3.7.4 on page 10)
CONNECTOR FOR
CALIBRATION CABLE
FILTER OF THE OPTIC UNIT IN
METHACRYLATE
GREEN INDICATOR LED  SENSOR
UNDER CHARGE.
RED INDICATOR LED

SENSOR ON
