3.8.3 Use of clamp STDA30E /STDA48E
The centre crosspiece of clamps STDA30E is mobile; the clamp can therefore be raised
and/or lowered by at most 180 mm in the event of an obstacle (a wide truck wheel for
instance) preventing communication between the two measuring heads.
T
o lower the two measuring heads to the same level, the crosspiece features 3 notches, each
60 mm high.
ALWAYS LEVEL THE CLAMP BEFORE LOWERING THE CROSSPIECE (see following
examples):

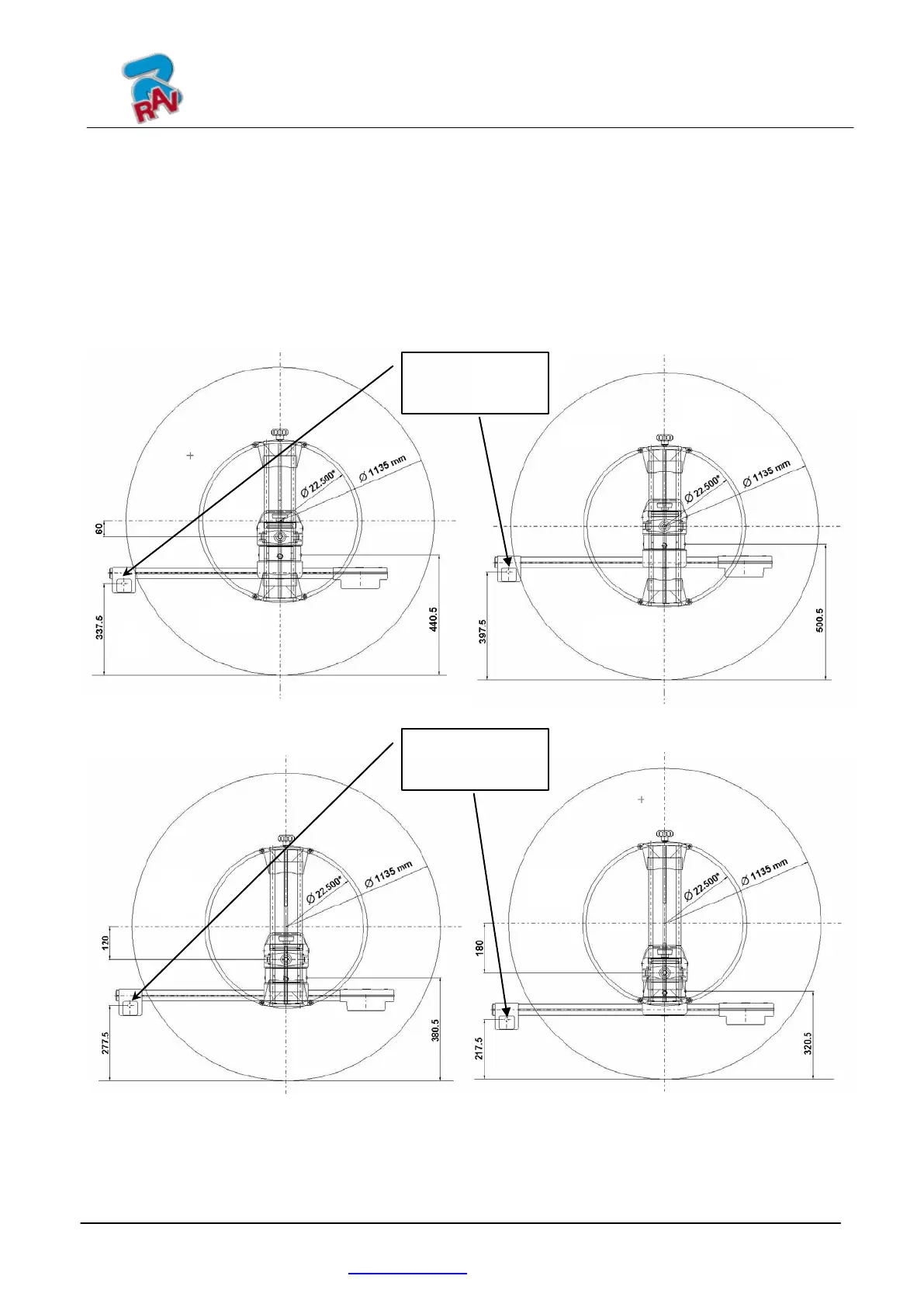

Figure 8
A) Standard clamp position
B) Position 60mm from the
clamp centre
Signal TOE
Signal TOE
C) Position 120mm from the
clamp centre
D) Position 180mm from the
clamp centre
