8.7 Steering procedure
Once the sensors have been aligned and levelled (see para. 8.6 page 28), the steering
procedure can be performed. This determines the following measurements:
• Caster
• Steering column angle
• Included Angle

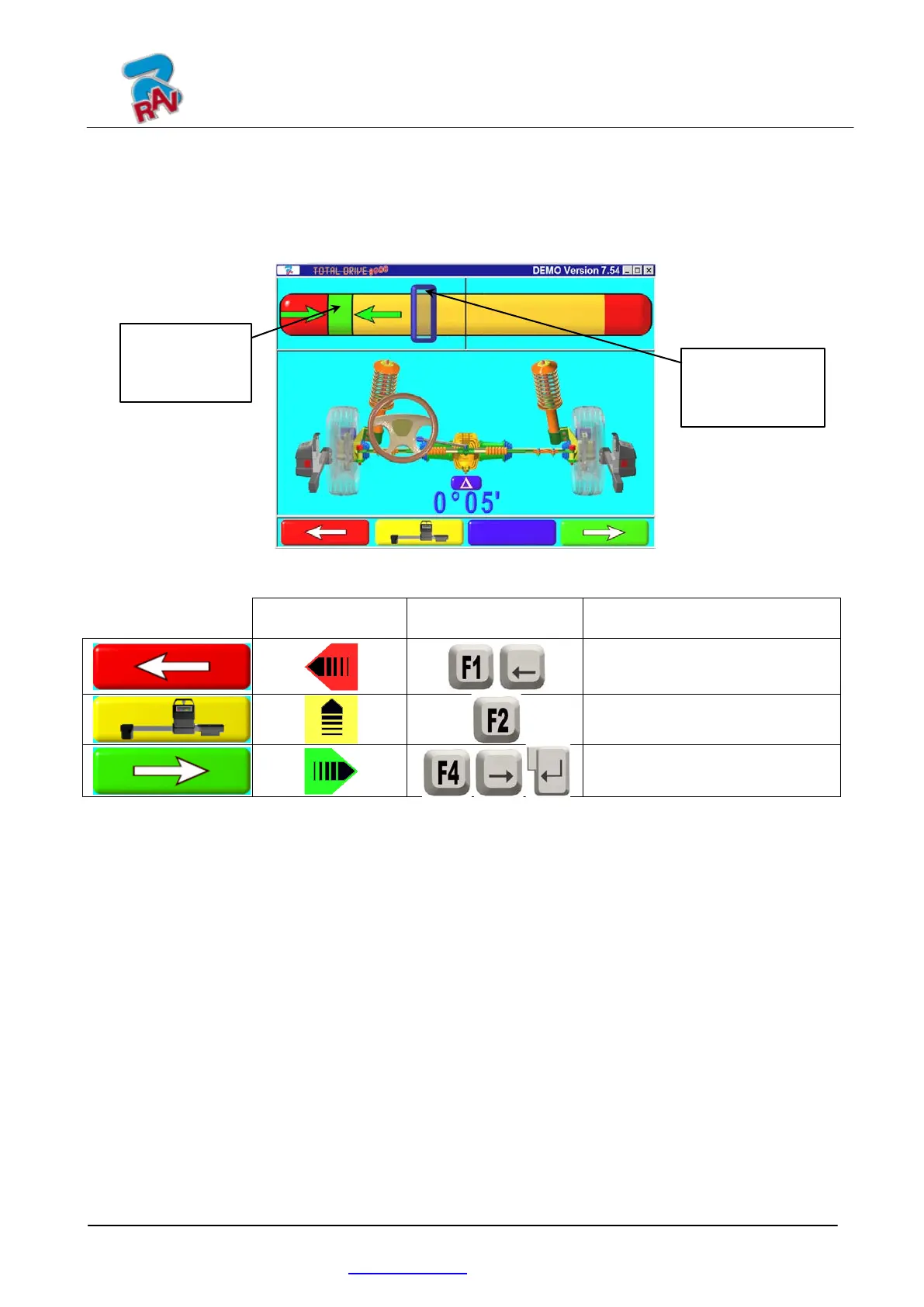

Figure 33
SENS.
KEYBOARD
PC KEYBOARD
DESCRIPTION
Repeat the alignment and
levelling procedure
(para. 8.6 page 28)
Type of steering turn to be
performed. (*)
Displays vehicle test page
(para. 8.8 page 30)
(*) by pressing this key, the type of steering lock can be selected:
-
Steering using the sensors
- 20° steering using standard turn-plates
The steering procedure can also be skipped: the above indicated data measurement values
will not be available. To skip the procedure, select key F4 and directly display the vehicle
diagnosis page. If the procedure is not performed, but is in any case carried out at the end of
registration, the specific option can be selected from the menu.
Turning level
indicator
Turning
point of
arrival
