3.3 Safety devices
The wheel aligner features a safety device (master switch) on the rear of the machine, see chap. 3
on page 5. The master switch disconnects power to the machine when turned clockwise.
3.4 Fields of measurement and precision
Axle Measurement Precision
Field of
measurement
Total field of
measurement
Front
Toe-in
± 2’
± 2°
± 5°
Semitoe-in
± 1'
± 1°
± 2°30’
Axle run-out
± 2
± 2°
± 5°
Wheel camber
± 2'
± 3°
± 10°
Caster angle
± 5’
± 10°
± 18°
Camber angle
± 5’
± 10°
± 18°
Rear
Toe-in
± 2'
± 2°
± 5°
Semitoe-in
± 1'
± 1°
± 2°30’
Axle run-out
± 2'
± 2°
± 5°
Wheel camber
± 2'
± 3°
± 10°
Push angle
± 2'
± 2°
± 5°

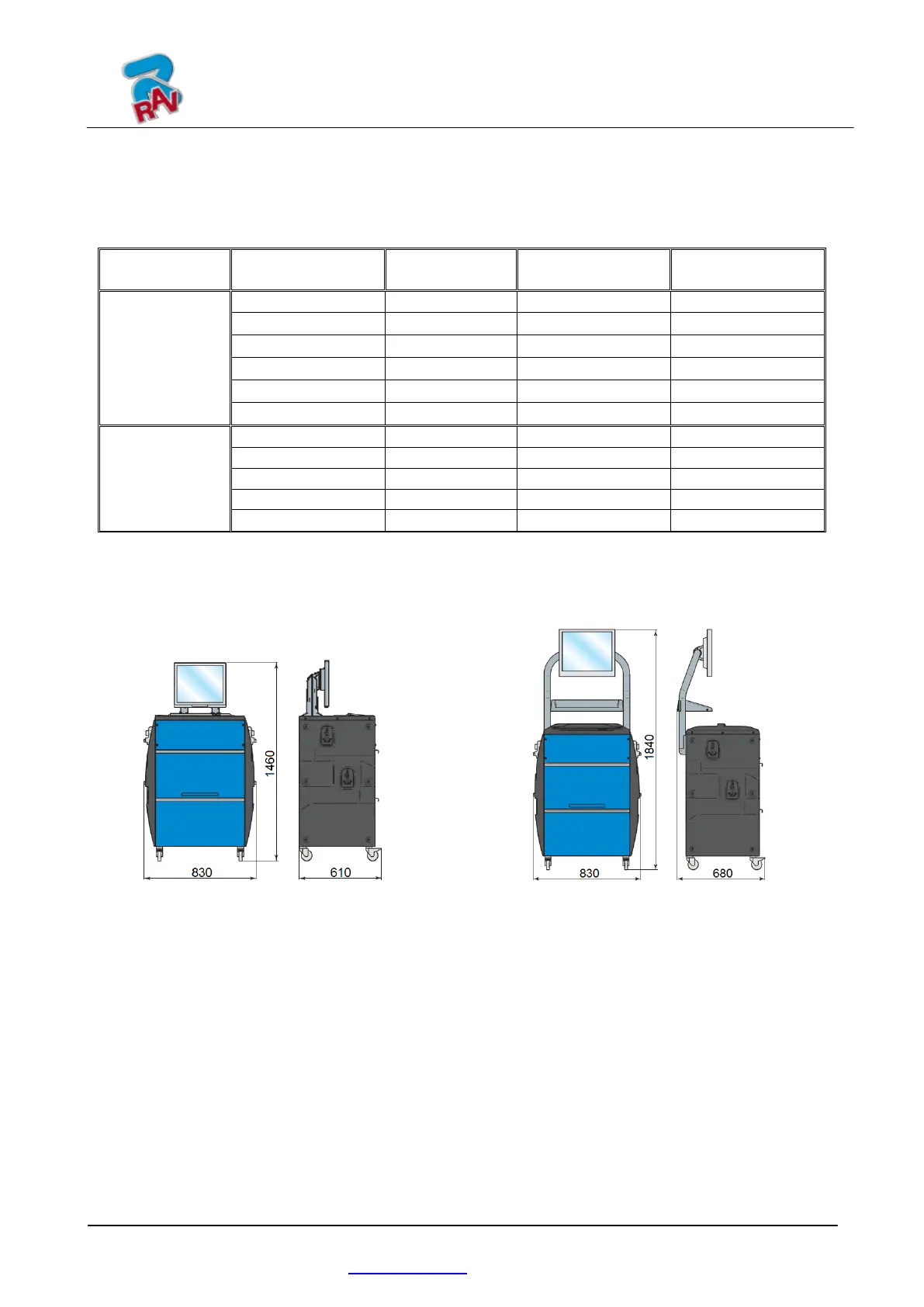

3.5 Overall dimensions
RAV TD 8080TWS / TWSR RAV TD 8080TWS / TWSR
Figure 1
3.6 Control PC
Inside the control unit is a control PC containing the software product.
The EPIA 5000 fanless motherboard control PC has the following specifications:
• Processor 1,6GHz;
• RAM 1 Gb;
• 4 USB; 1 COM; 1 LAN Ethernet 10/100Mb;
• Keyboard and PS2 mouse input; WIN 7 Embedded Standard edition in Edition
• Hard Disk ≥ 30 Gb
