Ravaglioli RAV4300 User Manual

34
RISERVATO AL PERSONALE AUTORIZZATO ALL'INSTALLAZIONE - ONLY FOR INSTALLATION-AUTHORIZED STAFF
IST DEM ZUR INSTALLATION AUTORISIERTEN PERSONAL VORBEHALTEN - SEULEMENT POUR LE PERSONNEL AUTORISE A L'INSTALLATION - RESERVADO AL PERSONAL ENCARGADO DE LA INSTALACION
0716-M001-0

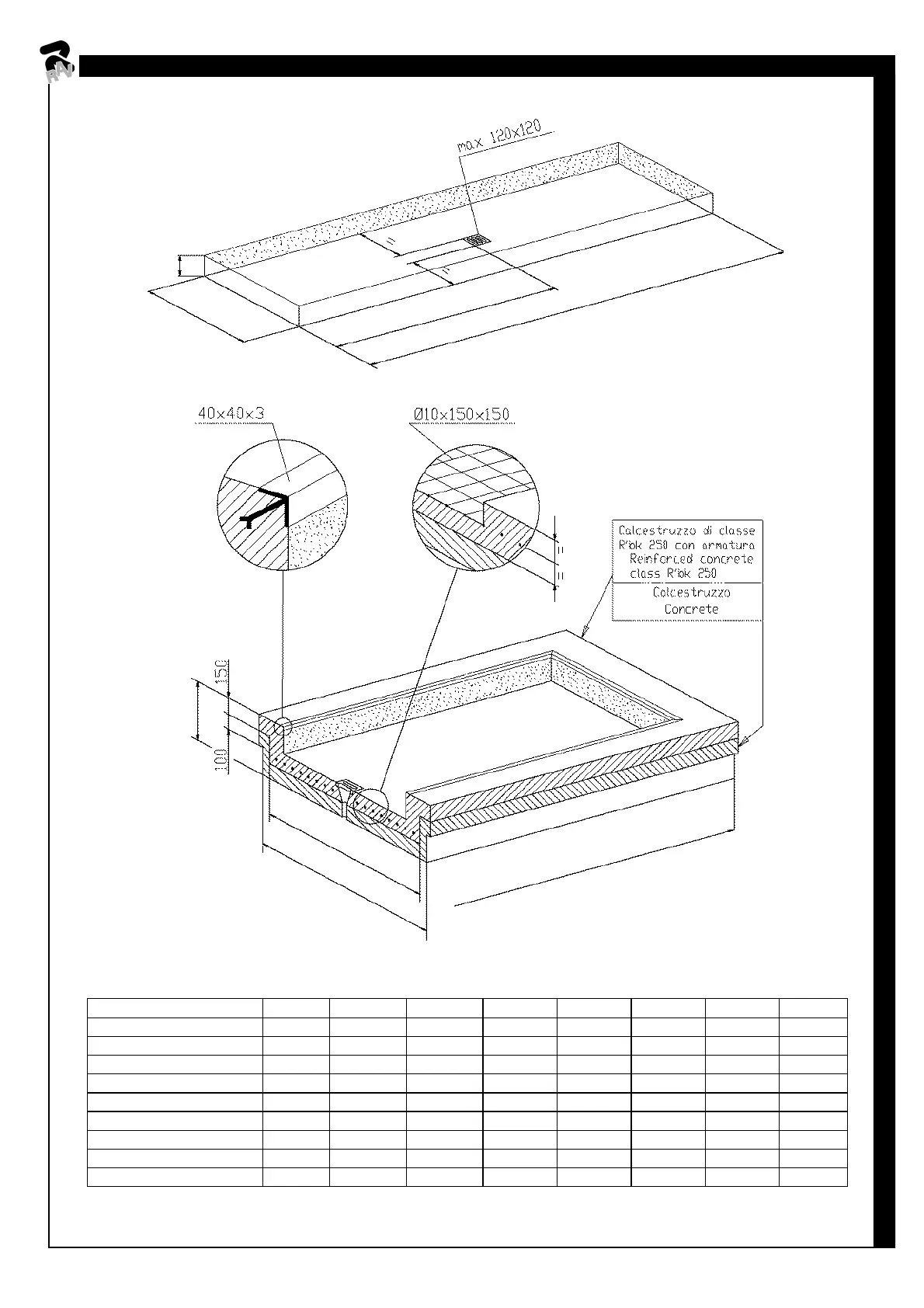

Fig.7
MODELLO - MODEL A B C D E F G H
RAV4300 4360 2805 150 2300 3305 400 3105 4860
RAV4350 4510 2855 150 2300 3355 400 3155 5010
RAV4351 4660 3005 150 2300 3505 400 3305 5160
RAV4400 5200 3205 160 2500 3705 400 3505 5700
RAV4401 4660 3205 150 2300 3705 400 3505 5160
RAV4405 E 5300 3205 160 2600 3705 400 3505 5800
RAV4501 E 5300 3405 160 2600 3905 400 3705 5800
RAV4650 5410 3830 200 2600 4330 450 4130 5910
RAV4800 6255 3830 200 3000 4330 450 4130 6755
QUOTE ESPRESSE IN MILLIMETRI
DIMENSIONS ARE IN MILLIMETERS
G
E
H
F
A
B
D
C
