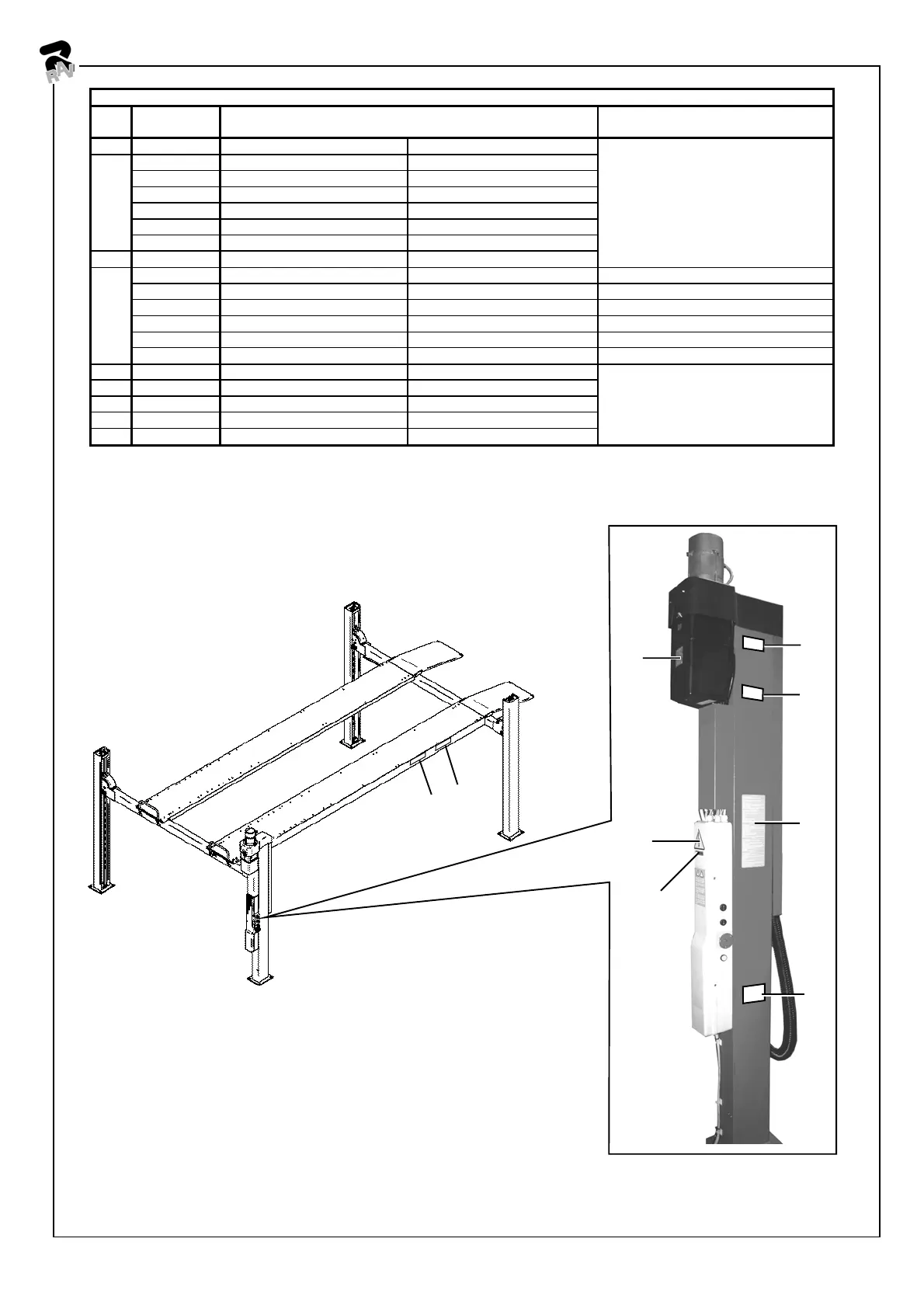

SEGNALI OPERATIVI E DI PERICOLO - OPERATING AND DANGER SIGNALS
RIF.
REF.
CODICE
CODE
DESCRIZIONE
DESCRIPTION
APPLICAZIONE
APPLICATION
1 99990758 Targhetta autoadesiva pericolo Self-sticking danger plate
999912530 Targhetta 220V 60Hz 1Ph 220V 60Hz 1Ph plate
999912430 Targhetta 230V 50Hz 1Ph 230V 50Hz 1Ph plate
999913300 Targhetta 380V 60Hz 3Ph + N 380V 60Hz 3Ph + N plate
999912510 Targhetta 220V 60Hz 3Ph 220V 60Hz 3Ph plate
999912390 Targhetta 230V 50Hz 3Ph 230V 50Hz 3Ph plate
2
999913010 Targhetta 400V 50Hz 3Ph + N 400V 50Hz 3Ph + N plate
3
999908660 Tabella livello olio Oil level table
TUTTI I MODELLI - ALL MODELS (*)
99990492 Targhetta portata kg 3000 3000 kg capacity plate RAV4300
99990637 Targhetta portata kg 3500 3500 kg capacity plate RAV4350 – RAV4351
999908950 Targhetta portata kg 4000 4000 kg capacity plate RAV4400 – RAV4401 - RAV4405 E
99990495 Targhetta portata kg 5000 5000 kg capacity plate RAV4501 E
999909920 Targhetta portata kg 6500 6500 kg capacity plate RAV4650
4
999913190 Targhetta portata kg 8000 8000 kg capacity plate RAV4800
5
Targa matricola Serial number plate
6
999909850 Targhetta istruzioni Instruction plate
7
Tabella marchio Mark plate
8 999911760 Etichetta allarme acustico Audible alarm label
9 999913400 Targhetta alimentazione aria Air pressure feed plate
TUTTI I MODELLI - ALL MODELS (*)
